At the 51st London International Educational Equipment Exhibition (BETT), AIOSTAR showcased its innovations to the world

  • Written by Aiostar
  • 2021-4-23

hits£º1672

At the 51st London International Educational Equipment Exhibition (BETT), AIOSTAR showcased its innovations to the world

On January 22, the 51st London International Educational Equipment Exhibition (BETT) was grandly opened at the London Convention and Exhibition Center.

BETT is the world¡¯s largest and most influential educational and teaching equipment exhibition. It brings together the most advanced and fashionable educational modernization and networked products. Every year, it attracts educators from all over the world to come and provide high-level exchanges in the field of educational technology. The international connection bridge of value can be described as the first year's education festival.


AIOSTAR, which is committed to contributing a stronger force to the construction of smart education in the field of education, brought AOS-SOH31I41S6GE OPS-C computer to the show at this exhibition, demonstrating the charm of educational innovation.





As the highlight of electronic whiteboards and digital signage, the display function has always been the most valued by customers. Aiostar Electronics AOS-SOH31I41S6GE is innovatively equipped with dual HDMI+DP display channels in the OPS-C computer, which can better handle 4K resolution and 4K decoding performance. Through the HDMI interface of the body, the maximum output is 4096x2304@60Hz, and the DP maximum output is 4096x2304@60Hz, which meets the needs of three displays for teaching or commercial electronic whiteboards and digital signage. Compared with the previous generation Skylake platform product AOS-SOH11I41S5IGE, Aixin Micro AOS-SOH31I41S6GE maintains a 20%-30% increase in CPU performance, while the display performance is increased by more than 50%. To help customers realize 3D and VR teaching, remote recording Broadcasting and remote video conferencing, somatosensory applications, etc. to achieve better solutions.

Aixin Micro launches AOS-SOH31I41S6GE with independent display OPS-C computer. This machine not only has efficient data calculation and strong HD playback capability, but also has lower energy consumption. More importantly, the size of OPS-C computer is 180*195*30MM high and thin, and it is also for Another intelligent, low-energy multimedia playback system solution created by the digital signage market is also an ideal choice for low-carbon and environmentally friendly digital signage applications.



Features:

OPS plug-in modular installation

CoffeeLake Core I3 8100/I5 8400 /I7 9700 CPU

4K Ultra HD playback (3840*2160 60HZ)

NVIDIA GT730/GT1030/GTX1050/GTX1050Ti /GTX1060/GTX1070/GTX2070/P4000 2G-6G-8G discrete graphics

single network triple display (HDMI+HDMI+DP)

1*type-c six-way USB (4*USB3.0+2*USB2.0)

NGFF series SSD+HDD dual hard disk storage mode

Support dual channel DDR4 MAX 32GB

Support 3D graphics processing, VR teaching, recording and broadcasting, local and remote meeting functions

Support software and hardware system one-key restore

Support double copper tube heat dissipation to ensure efficient heat dissipation

Support network wake-up, power on, watchdog, etc.

Support Windows7/10 system; Linux/Ubuntu16.04/Debian system;

Support OPS and OPS-C structure size: 180*195*30MM/42MM

Products comply with CE FCC ROHS regulations


Specifications

processor

CPU

Intel Intel Core Core i3-8100 (3.6GHz/6MB/HD630/14nm/65W/LGA1151).

Chipset

Intel® H310

BIOS

AMI   32Mbitsupports diskless startup, network wake-up, power-on power-on, watchdog,   and more

memory

capacity

4GB SO-DIMM DDR4 2400MHz memory , Max.32GB

storage

M.2 interface

SATA interface

MINI PCIE

128G SSD NGFF/NVME

HDD is optional

1X M.2 Mini PCIE

display

Stand-alone graphics output





Stand-alone graphics cards are available in both models   and display output channels

HDMI-HDMI-DP single- ,   dual-display, three-screen (same/asynchronous display). , /

1   ¡Á HDMI (maximum support   resolution:3840x2160).

1   ¡ÁHDMI (maximum support   resolution:3840x2160).

1   ¡Á DP (maximum support   resolution:3840x2160).

GTX730 2GB( HDMI/HDMI)

GTX1030 2GB(HDMI/DP)

GTX1050 2GB(HDMI/HDMI/DP)

GTX1050TI 4GB(HDMI/HDMI/DP)

GTX1060 6GB(HDMI/HDMI/DP)

GTX1070 8GB(HDMI/HDMI/DP)

GTX2080 8GB(HDMI/HDMI/DP)

Internet

chip

WIFI

1   ¡Á RTL8111H 10/100/1000M£¨RJ45 LAN£©

1   x WIFI Module support 802.11b/g/n £¨M.2 half card£©

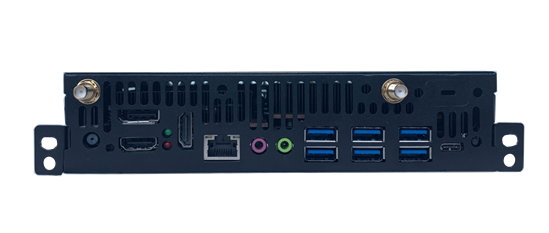

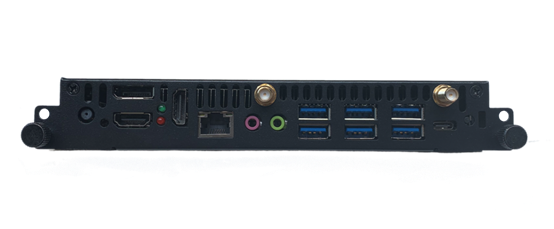

I/O

USB 3.0

Type-c

COM

Power button

Reset

OPS interface

LED light

DC JACK

One-click restore

audio

6¡Á USB3.0

1x Type-c

1x COM is optional

1 ¡Á power button

1 ¡Á Reset button

1 ¡Á OPS interface(80pin).

1 x Power indicator   light . . . 1x hard drive   indicator light

1 ¡Á DC JACK

1 x one-click restore

1 ¡Á LINE-OUT and MIC-IN with integrated 6-channel sound ALC662 sound card chip

power supply

input

Rated power consumption

DC 12~19V

90-200W

Watchdog

output

interval

Interruption, system restart

255-level timing interval

The physical parameters

size

180mm (L) x 195mm (W) x 30mm (H)

environment

temperature

humidity

Operating temperature:0to50degreesC Storage temperature:-20 to 70degreesC

5%   to 90% no condensation

operating system

version

Windows 10/ Linux

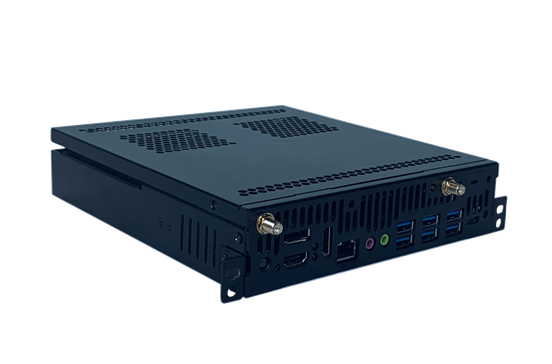

AOS-SOH31I41S6GE complies with OPS-C computer standards, and the shell is treated with anodic oxidation, which makes the whole machine sturdy and durable. Using the standard 80PIN JAE interface and matching the corresponding OPS-C display, a complete electronic whiteboard or display can be formed.

Looking back at this BETT exhibition, black education technology gathered, the scale is the largest in the world, the exhibits brought together the most advanced and fashionable education modernization and networked products, including virtual reality technology (VR) and artificial intelligence (AI) solutions, online Courses and distance education equipment, audio-visual equipment, biological intelligent identification equipment, interactive display equipment, information management system and tool software, electronic and teaching equipment, computers and notebooks and other IT equipment, etc., software and hardware products are all available. Exhibitors Corresponding solutions are designed for all aspects of education.

With the rapid development of education and teaching technology, digital networking has become the direction of development in the field of education. Educational informatization is in a stage of comprehensive advancement worldwide. The global education market has a demand for various multimedia informatized teaching equipment. With explosive growth, the education equipment market has also seen unprecedented prosperity. And now there is such an exhibition in China that is oriented to the education field like BETT, covering global education, and leading us to a better education market.



Shenzhen Aiostar Electronics Co., Ltd. (hereinafter referred to as "AIOSTAR") is a high-tech enterprise integrating R&D, production and sales. It is also a close partner of Inter, AMD, NVIDIA and other chip manufacturers. The company¡¯s main industrial motherboards (ITX/3.5-inch/NANO, etc.), media player hosts, OPS hosts, OPS pluggable computer modules, OPS motherboards, BOX-PC, network security hardware platforms, servers, industrial tablet computers, integration Workstations and other products.



Aixin Microelectronics (AIOSTAR) is the most comprehensive manufacturer of OPS computer product line in China that integrates R&D, production and sales. It also provides OEM/ODM customization services. The current main product lines are:

OPS computer: Baytrail J1800/J1900/Baytrail-CR Z8350/GeminiLake J4105/J5005/N4000/N4100/HM76+2-3 generation CPU/HM86+4 generation CPU/Skylake-u+6-7 generation/Coffeelake-u+8 -9 generation CPU

OPS-C computer: HM76+2-3 generation CPU/HM86+4 generation CPU/H77+2-3 generation CPU/H81+4 generation CPU/H110+6-7 generation CPU/H110+GTX730/960/1030/ 1050/1050TI 2-4GB/CoffeeLake H310+8-9th generation CPU/H310+ independent display 1060M 6G graphics card

Customized OPS-C computer: OPS-C computer with DVD drive series / ultra-thin 27MM series OPS-C computer / with wireless router series OPS-C computer / with capture card series OPS-C computer / with dual network ports and three network ports Series OPS-C computer

Android OPS computer: RK3188 Android OPS computer/RK3288 Android OPS computer/RK3399/ RK3399PRO Android OPS computer series

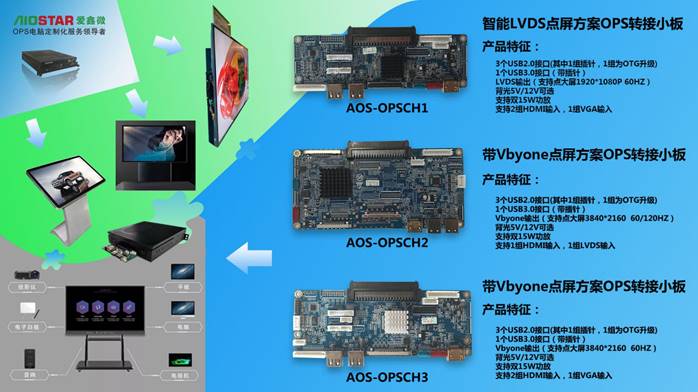

OPS adapter board: support 3USB+HDMI/support 6USB+HDMI/support 5USB+HDMI+RJ45 network port/support 5USB+HDMI+VGA+RJ45 network port/support LVDS dot screen/support Vbyone dot screen

AIOSTAR launched a new OPS adapter board with Vbyone and Lvds driving screen solutions, which are mainly used in conjunction with AIOSTAR¡¯s OPS computer products to be used in conference all-in-one machines, advertising machines, electronic desks, and touch queries. Computer, education all-in-one computer and other related display equipment. The products continue Aiostar's consistent style and philosophy on the new platform, and the spirit of matching performance and needs.
