CPU

Rockchip RK3528A Cortex-A53四核，最高主频2.0GHz

Rockchip RK3528A Cortex- A53 quad-core, up to 2.0GHz

DDR

LPDDR4 1GB（2GB/4GB可选）

LPDDR4 1GB (2GB/4GB optional)

存储

Storage

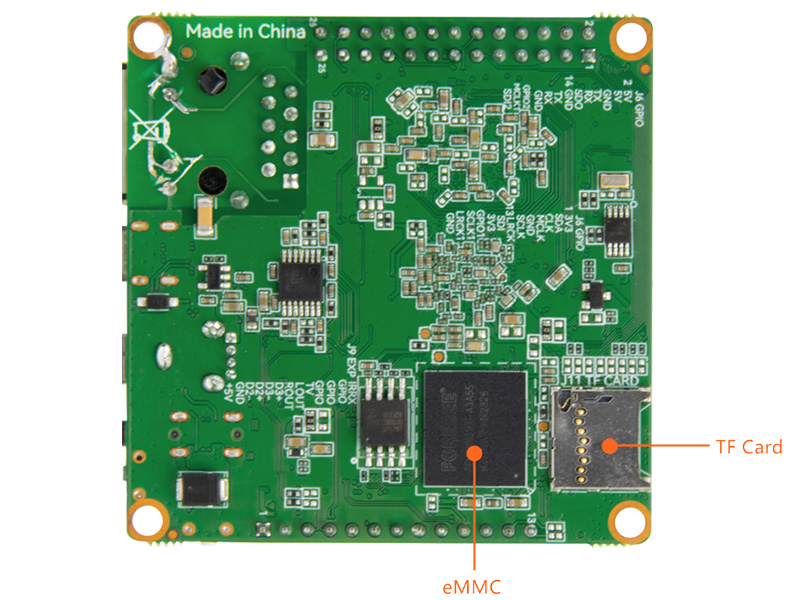

默认标配8GB EMMC NAND芯片，可扩展至最大128GB

The default comes with an 8GB EMMC NAND chip that can scale up to 128GB

HDMI输出

HDMI Output

Micro HDMI 2.0标准显示接口，最高支持4K输出

Micro HDMI 2.0 standard display interface supports up to 4K output

USB 2.0接口

USB 2.0 Interface

1个USB2.0外置横插接口

1 USB2.0 horizontal connectors

串口

Serial Port

1个1.25mm 3pin TTL调试串口

1 1.25mm 3-pin built-in serial port

TF卡

Micro SD Card

自弹式TF卡插座，最高支持256GB TF卡

Self-elastic micro SD card socket, up to 256GB capacity

WiFi

内置高性能SDIO接口WiFi6模块，支持IEEE 802.11 b/g/n/ax，默认单频WiFi6

Built-in high performance SDIO interface WiFi6 module, support IEEE 802.11 b/g/n/ax/ac

蓝牙

Bluetooth

内置高性能串口接口BT模块，支持V2.1+EDR/BT v3.0/BT v3.0+HS/BT v5.2

Built-in high performance UART interface BT module with support for V2.1+EDR/BT v3.0/BT v3.0+HS/BT v5.2

以太网口

Ethernet

10/100M自适应以太网RJ45网口

10/100M Adaptive Ethernet RJ45 connector

扩展接口

Extension Interface

13pin 2.54mm排针：支持USBx2、CVBS、IR、GPIO接口

13pin 2.54mm pin: Supports USBx2, CVBS, IR, GPIO interfaces

预留接口

Reserved Interface

26pin 2.54mm排针：支持I2Sx2、I2Cx2、UARTx2、PDM接口

26pin 2.54mm pin: Supports I2Sx2, I2Cx2, UARTx2, PDM interfaces

PCIe 2.0

16pin PCIe 2.0 FPC接口，可扩展PCIe外设

16pin PCIe 2.0 FPC port expands PCIe peripherals

实时时钟

Real Time Clock

超低功耗RTC电路（外接CR1220纽扣电池），并可支持定时开关机

Ultra-low-power RTC circuit (CR1220 battery) with timer and alarm functionalities

指示灯

LED Indicator

绿色工作指示灯

Blue LED indicator for running

按键

Buttons

烧录键（RECOVERY）和复位键

Recovery mode button and reset button

电源输入

DC Input

支持5V-2A电压直流电源输入（通过type-c座）

Supports 5V-2A voltage DC power input (type-c)

环境要求

Ambient Requirement

工作温度-20°C ~ 70°C，工作湿度0%~95%（不结露）

Working temperature -20°C ~ 70°C, working humidity 0%~95% (non-condensing)

物理尺寸

Physical Size

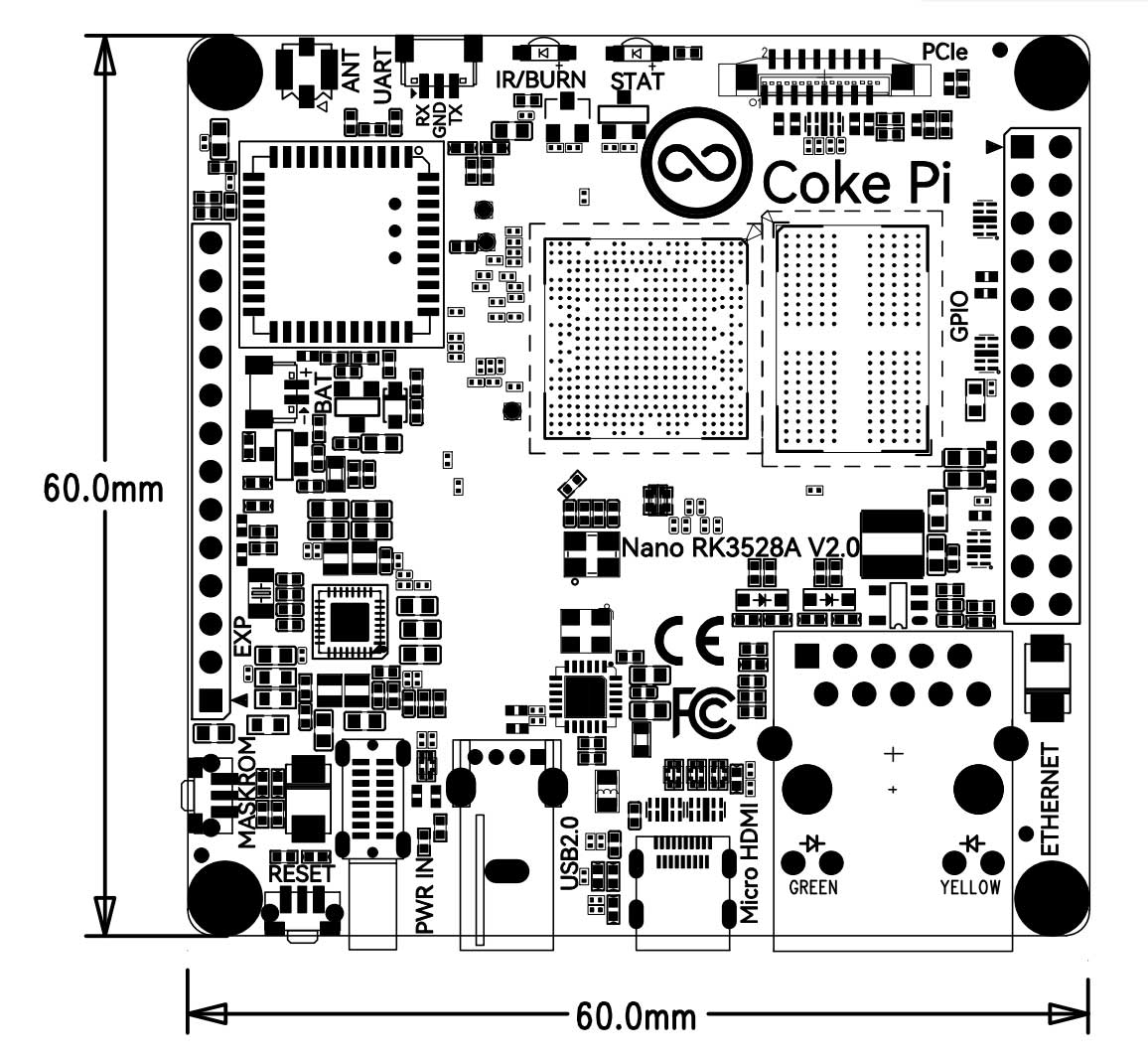

长*宽*高（60mm*60mm*14.8mm），PCB正面高度13.5mm

Length*Width*Height (60mm*60mm*14.8mm), PCB top side height 13.5mm

操作系统

Operating System

推荐安卓13

Recommended Android 13
