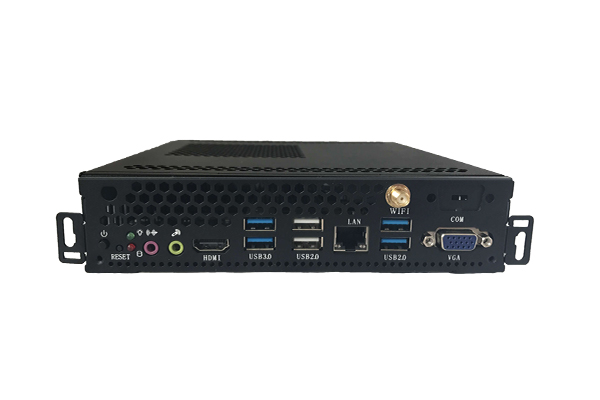

AOS-SOH5I45C

产品介绍：

Processor	CPU	Intel Core i3-2310M (dual core quad threads/2.1GHz/3MB L3 cache/HD3000/32nm/35W)
	Chipset	Intel® HM65
	BIOS	AMI 32Mbit, Support Diskless Boot, Wake on Lan, Power-on Boot, Watchdog, etc.
Memory	Capacity	4GB SO-DIMM DDR3 1333 MHz memory ,   Max.8GB
Storage	SATA Interface MINI PCIE	2.5〞5400rpm 500G 1xMini PCIE
Display	Graphics Output	CPU Integrated HD Graphics VGA+HDMI+DP single/dual display (synchronous/asynchronous display) 1 × VGA   （Max. resolution: 1920×1080） 1 ×HDMI   （Max. resolution: 1920x1080） 1 ×   DP   （Max. resolution: 1920x1080）
Ethernet	Lan WIFI	1 × RTL8111E   10/100/1000M（RJ45 LAN） 1 x WIFI Module support 802.11b/g/n （Mini PCIE half card）
I/O	USB 3.0 USB 2.0 COM RESET Power button OPS interface LED light DC JACK Audio	4x USB3.0 2× USB2.0 1 ×COM（RS232）optional 1 × Reset button 1 × power button 1 × OPS interface（80pin） 1 x Power led &1x HDD LED 1 × DC JACK 1 × LINE-OUT & MIC-IN, Integrated 6 audio channel with ALC662 chip
Power	Input Rated Power	DC   12~19V 60W
Watchdog	Output Interval	Interrupts, system restart L255 time interval
Physical Parameter	Dimension	180mm (L) x 195mm (W) x 42mm (H)
Condition	Temperature Humidity	Work Temp.: 0°C ~50°C, Storage Temp.: -20~70°C 5%~90% No condensation
Operating System	Vision	Windows xp/Windows 7 / windows8 / Linux

Ordering Information

Sales Model　　　　　 　 　 　 　 　Specification

AOS-SOH5C41SB        Intel celeron 1000M        1.8GHz        4G Memory        128GB SSD

AOS-SOH5D41SB        Intel Pentium B815         1.6GHz        4G Memory        128GB SSD

AOS-SOH5I41SB         Intel Core i3-2310M        2.1GHz        4G Memory        128GB SSD

AOS-SOH5I41SB         Intel Core i3-3110M         2.4GHz        4G Memory        128GB SSD

AOS-SOH5F41SB        Intel Core i5-2520M       2.5GHz        4G Memory        128GB SSD

AOS-SOH5F41SB        Intel Core i5-3210M       2.6GHz        4G Memory        128GB SSD

AOS-SOH5J41SB        Intel Core i7-2620M       2.7GHz        4G Memory        128GB SSD

AOS-SOH5J41SB        Intel Core i7-3520M       2.9GHz        4G Memory        128GB SSD

AOS-SOH5D45C        Intel Pentium B950          2.1GHz        4G Memory        500G HDD

AOS-SOH5I45C         Intel Core i3-2310M        2.1GHz         4G Memory        500G HDD

AOS-SOH5F45C        Intel Core i5-2520M        2.5GHz       4G Memory        500G HDD

AOS-SOH5J45C        Intel Core i7-2620M       2.7GHz        4G Memory        500G HDD

Applications

Apply to education, restautants, hotels, shipping malls, corporate meeting, government affairs, etc.
