AOS-3576
Product introduction：
Parameter introduction

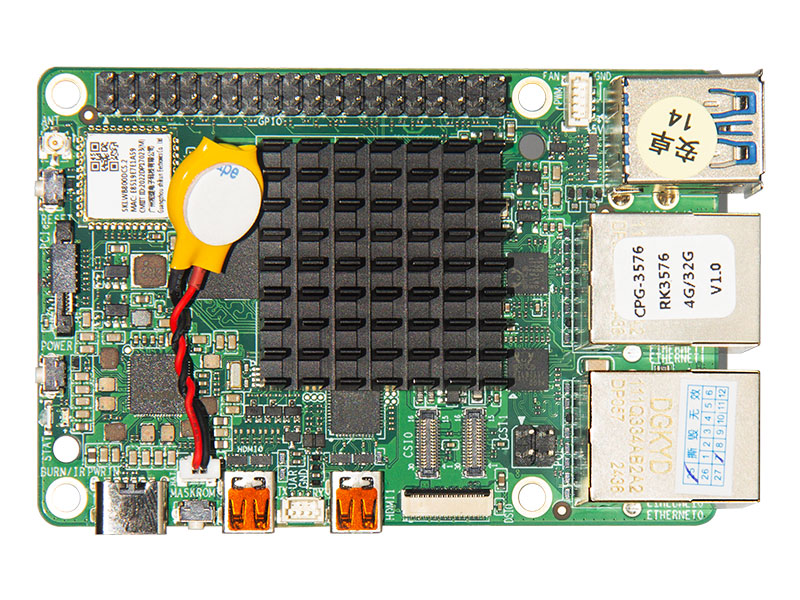

Android power development board
Rockchip RK3576 Android CPU
Size 55mm(L)×85mm(W)×13mm(H)
Supports 4G memory, 32G storage
Supports 2×RJ45 Gigabit Ethernet ports
Supports 2×USB3.0, 2×Micro HDMI, 2×MIPI DSl
Product complies with CE FCC ROHS specifications
System supports Android 13
Functional introduction
Function & Interface | Detailed Description |
CPU | Rockchip RK3576 Quad-core Cortex-A72 and Quad-core Cortex-A53, up to 2.2GHz |
DDR | LPDDR5 4GB (8GB|16GB optional) |
Storage | The default comes with an 32GB EMMC NAND chip that can scale up to 128GB |
NPU | 6 TOPS AI-calculus, Supports INT4/INT8/INT16/FP16/BF16/TF32 hybrid operation. |
HDMI Output | 2 Micro HDMI 2.0 display interface supports up to 4K@60FPS output |
MIPI-DSI | 1-way 31-Pin FPC MIPI-DSI display port supporting up to 1920x1200 |
MIPI CSI | 2-way MIPI CSI interface, up to 16 megapixel MIPI camera support |
USB 2.0 Interface | 2 USB horizontal connectors ( 1 USB3.0 and 1 USB3.0-OTG) |
Serial Port | 1 1.0mm 3-pin built-in debug serial port |
Micro SD Card | micro SD card socket, up to 256GB capacity |
WiFi | Built-in high performance SDIO interface WiFi6 module, support IEEE 802.11 b/g/n/,axdefault single-band WiFi6 |
Bluetooth | Built-in high performance interface BT module with support for V2.1+EDR/BT v3.0/BT v3.0+HS/BT v5.2 |
Ethernet | 2-way 10/100/1000M Adaptive Ethernet RJ45 connector + 4-Pin POE header |
Fan Control | One FAN control port |
GPIO Interface | 40pin 2.54mm pin: Supports I2S, CANx2, I2Cx2, UARTx4, PWMx2, SPI, GPIO interfaces |
PCIe 2.0 | 16pin PCIe 2.0 FPC interface can expand PCIe peripherals |
Real Time Clock | Ultra-low-power RTC circuit (CR1220 battery) with timer and alarm functionalities |
LED Indicator | Blue LED indicator for running |
Buttons | Recovery mode button, power switch button and reset button |
DC Input | Supports 5V-5A voltage DC power input (Type-C) |
Ambient Requirement | Working temperature -20°C ~ 70°C, working humidity 0%~95% (non-condensing) |
Physical Size | Length*Width*Height (85mm*56mm*17mm), PCB top side height 16mm |
Operating System | Recommended Android 14 |
Dimensional drawing
Ordering information
Sales model | Description |
AOS-3576 | Android RK 3576 CPU，Memory 1G，Storage 8G SSD |
Android RK 3576 CPU，Memory 2G，Storage 16G SSD | |
Android RK 3576 CPU，Memory 4G，Storage 32G SSD |
Application areas
Industrial computers, industrial tablet computers, self-service terminals, all-in-one
