AOS- 3588S
Product introduction£º
Product introduction
Android development board
Rockchip RK 3588S CPU
Supports 4GB memory, 32GB storage
Dimensions: 90mm (L) X55mm (W)
Supports 2¡ÁHDMI, 1¡Átype-C (power supply interface)

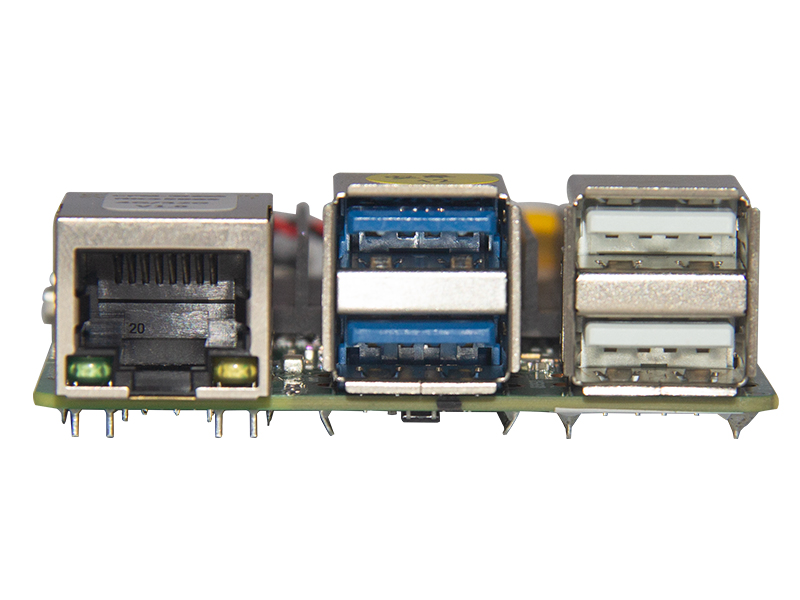

Supports 2¡Á3.0 USB, 2¡Á2.0USB
Supports 1¡ÁRJ45 Gigabit Ethernet port
Product complies with CE FCC ROHS specifications
System supports Android 13
Specifications
Function & Interface | Detailed Description |
CPU | RK3588S Quad-core Cortex-A76 and Quad-core Cortex-A55, up to 2.4GHz |
DDR | LPDDR4 4GB (8GB|16GB|32GB optional) |
Storage | The default comes with an 32GB EMMC NAND chip that can scale up to 256GB |
HDMI Output | 2 Micro HDMI 2.0 display interface supports up to 8K@60FPS output |
MIPI CSI | 3-way MIPI CSI interface, up to 16 megapixel MIPI camera support |
USB 2.0 Interface | 4 USB horizontal connectors (2 USB2.0, 1 USB3.0 and 1 USB3.0-OTG) |
Serial Port | 1.25mm 3-pin built-in serial port |
Micro SD Card | Self-elastic micro SD card socket, up to 256GB capacity |
WiFi | Built-in high performance SDIO interface WiFi6 module, support IEEE 802.11 b/g/n/ac/ax,Default dual-band WiFi6 |
Bluetooth | Built-in high performance UART interface BT module with support for V2.1+EDR/BT v3.0/BT v3.0+HS/BT v5.0 |
Ethernet | 10/100/1000M Adaptive Ethernet RJ45 connector + 4-Pin POE header |
Fan Control | One FAN port |
GPIO Interface | 40pin 2.54mm pin: Supports I2S, CAN, I2Cx3, UARTx3, PWMx2, SPI, GPIO interfaces |
PCIe 2.0 | 16pin PCIe 2.0 FPC½Ó¿Ú¿ÉÀ©Õ¹PCIeÍâÉè 16pin PCIe 2.0 FPC port expands PCIe peripherals |
Real Time Clock | Ultra-low-power RTC circuit (CR1220 battery) with timer and alarm functionalities |
LED Indicator | Blue LED indicator for running |
Buttons | Recovery mode button, power switch button and reset button |
DC Input | Supports 5V-2A voltage DC power input (type-c) |
Ambient Requirement | Working temperature -20¡ãC ~ 70¡ãC, working humidity 0%~95% (non-condensing) |
Physical Size | Length*Width*Height (85mm*56mm*17mm), PCB top side height 16mm |
Operating System | Recommended Android 12.0£¬optional Android 13.0 |
Ordering information
Sales Model | Description |
AOS-3588S | Android RK3588S CPU£¬memory 1G£¬storage 8G SSD |
Android RK3588S CPU£¬memory 2G£¬storage 16G SSD | |
Android RK3588S CPU£¬memory 4G£¬storage 32G SSD | |
Android RK3588S CPU£¬memory 8G£¬storage 128G SSD |
Dimensions
Application fields
Industrial computers, industrial tablet computers, self-service terminals, all-in-onemachines, medical, digital signage, POS cash registers, etc.
