AOS- 3528A
Product introduction£º
Product introduction

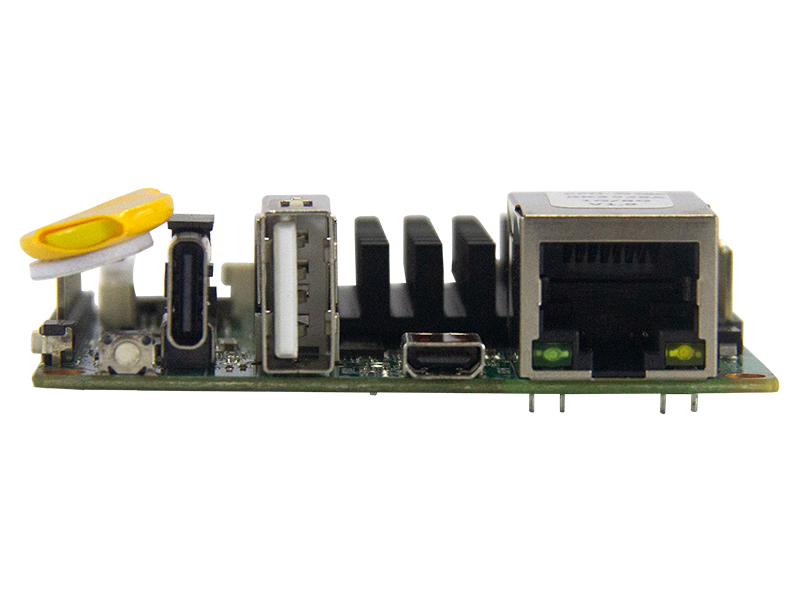

Android development board
Android RK 3528A CPU
Supports 1G memory, 8G storage
Size 60mm (L) ¡Á 60mm (W)
Supports 1¡Átype-c power supply
Supports 1¡ÁHDMI, 1¡ÁUSB2.0
Supports 1¡ÁRJ45 Gigabit network port
The product complies with CE FCC ROHS specifications
System supports Android 13
Function Introduction
Function & Interface | Detailed Description |
CPU | Rockchip RK3528A Cortex- A53 quad-core, up to 2.0GHz |
DDR | LPDDR4 1GB (2GB/4GB optional) |
Storage | The default comes with an 8GB EMMC NAND chip that can scale up to 128GB |
HDMI Output | Micro HDMI 2.0 standard display interface supports up to 4K output |
USB 2.0 Interface | 1 USB2.0 horizontal connectors |
Serial Port | 1 1.25mm 3-pin built-in serial port |
Micro SD Card | Self-elastic micro SD card socket, up to 256GB capacity |
WiFi | Built-in high performance SDIO interface WiFi6 module, support IEEE 802.11 b/g/n/ax/ac |
Bluetooth | Built-in high performance UART interface BT module with support for V2.1+EDR/BT v3.0/BT v3.0+HS/BT v5.2 |
Ethernet | 10/100M Adaptive Ethernet RJ45 connector |
Extension Interface | 13pin 2.54mm pin: Supports USBx2, CVBS, IR, GPIO interfaces |
Reserved Interface | 26pin 2.54mm pin: Supports I2Sx2, I2Cx2, UARTx2, PDM interfaces |
PCIe 2.0 | 16pin PCIe 2.0 FPC port expands PCIe peripherals |
Real Time Clock | Ultra-low-power RTC circuit (CR1220 battery) with timer and alarm functionalities |
LED Indicator | Blue LED indicator for running |
button Buttons | RECOVERY and reset buttons Recovery mode button and reset button |
DC Input | Supports 5V-2A voltage DC power input (type-c) |
Ambient Requirement | Working temperature -20¡ãC ~ 70¡ãC, working humidity 0%~95% (non-condensing) |
Physical Size | Length*Width*Height (60mm*60mm*14.8mm), PCB top side height 13.5mm |
Operating System | Recommended Android 13 |
Ordering Information
Sales Model | illustrate |
AOS-3528A | Android RK3528A CPU£¬Memory 1G£¬ Storage 8G SSD |
Android RK3528A CPU£¬Memory 2G£¬Storage 16G SSD | |
Android RK3528A CPU£¬Memory 4G£¬ Storage 32G SSD |
Dimensions
Application areas
Industrial computers, industrial tablet computers, self-service terminals, all-in-onemachines, medical, digital signage, POS cash registers, etc.
