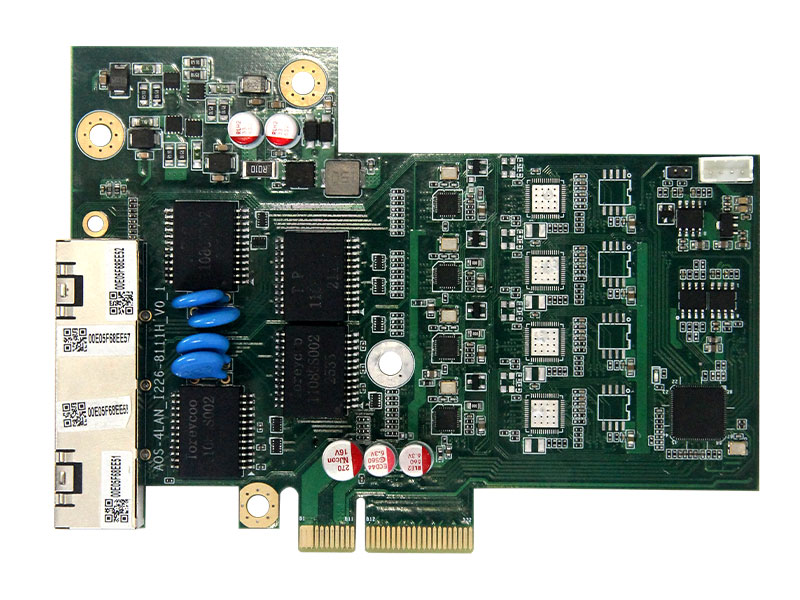

AOS-4LAN-I226-H8111H
Product introduction£º
Version 1
Mini-PCIE X4 signal to Gigabit Ethernet port
Realtek 8111H chip network card

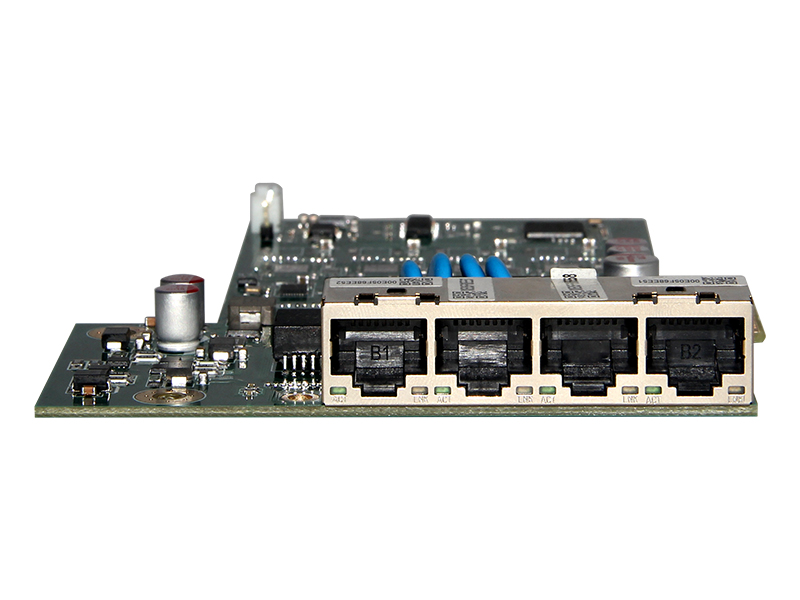

4 x RJ45 10/100/1000M Ethernet ports (PoE optional)
Dimensions: 134mm (L) x 100mm (W) x 12mm (H)
Compliant with CE, FCC, and ROHS regulations
System support: Windows 7, Windows 10, Windows 11, Kylin OS, and UOS...
Version 2
Mini-PCIE X4 signal to Gigabit Ethernet port
Intel i226 chip network card
4 x RJ45 10/100/1000M Ethernet ports (PoE optional)
Dimensions: 134mm (L) x 100mm (W) x 12mm (H)
Compliant with CE, FCC, and ROHS regulations
System support: Windows 7, Windows 10, Windows 11, Kylin OS, and UOS...
Network Card Introduction
Realtek 8111H: A highly integrated PCIe Gigabit Ethernet controller with a mature design and
driver compatibility across various operating systems. It offers low power consumption, excellent
stability, and is suitable for widespread adoption. It is highly compatible with a variety of motherboard
platforms and is suitable for both consumer and general-purpose industrial equipment.
Intel I226: A next-generation architecture. Compared to the I219/I225,
the I226 utilizes a more advanced process technology, resulting in lower power consumption and
improved thermal management. High reliability, optimized for long-term operation, improves network
link stability and reduces packet loss and interruptions. Built-in, enhanced hardware security verification
and packet filtering capabilities enhance data security in industrial and enterprise networks.
Appliation areas
Industrial computers,self-service terminals,all-in-one machines,medical,digital signage,POS cash registers¡¢Industrial Control¡¢Edge computing¡¢Switch etc
