AOS-M22K-1L2G5

Product introduction£º

introduce

M.2 2230 type function conversion motherboard

M.2 2230 half card (22mm x 30mm)

M.2 PCIE signal conversion to 1 set of RTL8111H 1000M network

1 M.2 KEY-E 2230 half card interface, expansion 1*1000M RJ45

Product complies with CE FCC ROHS specifications

System supports WIN7/WIN10/WIN11/Kirin OS/UOS...

Version 1

Functional Introduction

M.2 2230 Type Function Converter Motherboard

M.2 2230 Half-Card (22mm x 30mm)

Converts PCIE signals from M.2 to one RTL8111H 1000M network port

One M.2 KEY-E 2230 Half-Card slot, expands to one 1000M RJ45 slot

Complies with CE, FCC, and ROHS regulations

System Support: Windows 7, Windows 10, Windows 11, Kylin OS, and UOS...

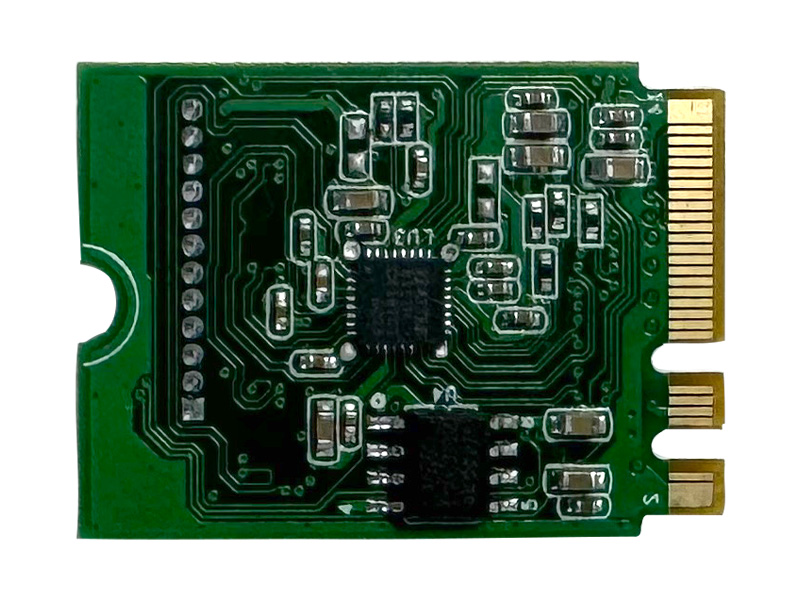

Product display

Version 2

AOS-M22K-1L2G5

Ordering information

Sales model	illustrate
AOS-MPCIE-1L2G5	RTL8111H (single 1000M RJ45 network port)
	Intel I225/I226 (single 2.5G RJ45 network port)
AOS-MPCIE-2L2G5	Intel I225/I226 (dual 2.5G RJ45 network ports)
AOS-2L2P	12-24V input, 48V POE (single or dual network ports optional)/(POE function optional)
