AOS-M4AU11OA
Product introduction£º
Specification parameter
processor
| CPU | Support Intel®Alder LAKE Core™ i5 1240P 1.7G 12 core 16 threads (28W) (I3 1220P 1.5G 10 core 12 threads /I5 1240P 12 core 16 threads (1235U 1.3G10 core 12 threads /12450H 2.0G8 core 12 threads /13420H Rui 4.6G 8 core 12 threads)/I7 1260P 2.1 12 core 16 threads (1360P Rui frequency 5G 12 core 16 threads /13700H Rui frequency 5G 14 core 20 threads)/I9 13900H Rui Frequency 5.4G 14 core 20 threads) |
chipset | Intel® SOC | |
BIOS | AMI 32Mbit£¬Supports disk-free startup, network wake up, power-on, and watchdog functions | |
Internal memory | capacity | 4GB DDR4 2133/2400 MHz memory , Max.64GB |
store | SATA interface M.2 Ports | 1*SATA 3.0 1*M.2 Key M NVME/SATA 2280 |
reveal | chipset Exportation
| CPU integrated Graphics card HD Graphics 4*HDMI+DP+LVDS/edp Single display, double display, three, four display (same/asynchronous display) 1 ¡ÁHDMI (Max support resolution: 3840x2160 60HZ) 1 ¡ÁDP (Max support resolution: 7680x4320 60HZ) |
network | Chip WIFI/3G/4G | 1 ¡Á 10/100/1000M£¨RJ45 LAN£©Optional dual network ports 1 x WIFI Module support 802.11b/g/n £¨M.2 PCIE half card£© |
I/O | POWER Rest Audio frequency USB3.0 DP HDMI USB 3.0 GOST RJ45 Type-c LED DC JACK HDMI | 1x switch 1x restart 1 ¡Á LINE-OUT & MIC-IN 4x USB3.0 1¡Á DP 4 x HDMI 2.0 4 x USB3.0 1X System restore 1 x RJ45 network port 1 x type-c (USB2.0) 1 ¡Á LED 1 x DC JACK interface (Post I/O optional) 1 x HDMI2.0 interface (post-I /O optional) |
Onboard function | COM port USB2.0 PCIEX4 MINI PCIE LVDS GPIO LED EDP SPK PANEL SATA
| 6*RS232 (2 groups of RS422/485 optional) Optional (default single COM) 1*USB pin (expandable 2*USB2.0) supports up to 5 groups of USB2.0 1*PCIEX4(High precision connector) 1*MINIPCIE(3G/4G) 1*LVDS 1 x 8 In and 8 out of GPIO 1*SATA LED 1*EDP(optional) 1*SPK (3-5W) 1*Front panel 2*SATA |
Power source | input Rated power consumption | DC JACK 12V-19V 60W |
Guard dog | exportation interval | The system restarts. Procedure 255 level timing interval |
Physical parameter | dimension | 172mm (L) x 115mm (W) |
environment | temperature humidness | Operating temperature: 0¡ãC ~50¡ãC Storage temperature: -20 ¡ãC ~70¡ãC 5% to 90% no condensation |
Operating system | edition | Windows 10/Windows 11/ Linux |
Ordering information
Sales model | Instructions |
AOS-M4AU11IOA | Intel I3 1220P 1.5GHz |
AOS-M4AU11FOA | Intel I5 1235U 1.3GHz Intel I5 1240P 1.7GHz Intel I5 12450H 2.0GHz |
AOS-M4AU11JOA | Intel I7 1260P 2.1GHz Intel I7 1360P 5.0GHz Intel I7 13700H 5.4GHz |

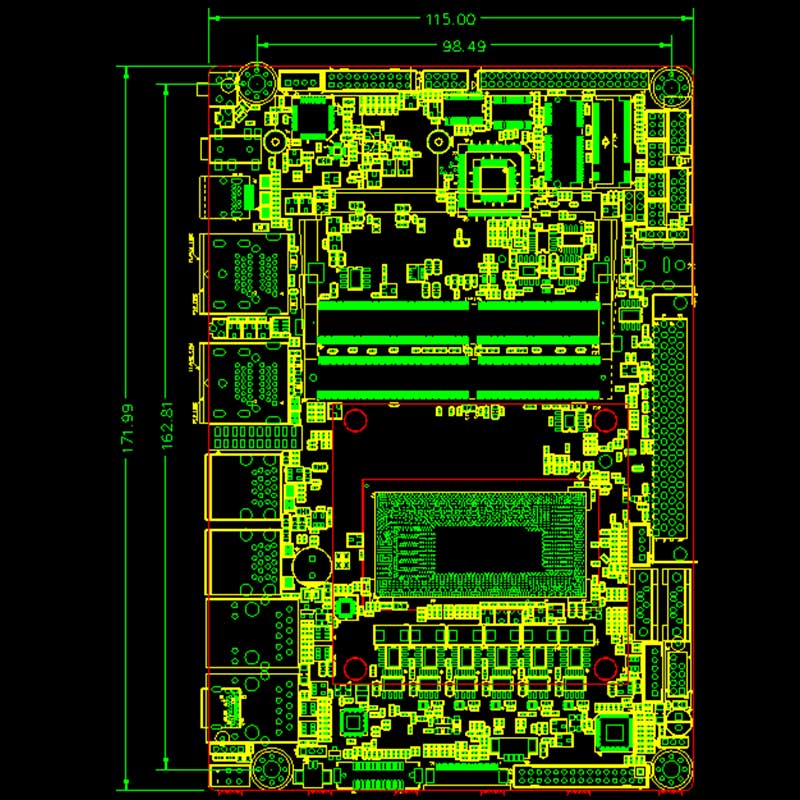

Dimension drawing
Application field
Suitable for education, restaurants, hotels, shopping malls, company meetings, government affairs and other fields.
