AOS-MAMDR778ST
Product introduction£º
Specifications
Processor | CPU | AMD RyzenM97945HXCores:16Threads:32Base Frequency:2.5GHz Max Boost Frequency:5.4Ghz TDP:55W(subject to actual shipment) |
Chipset | AMD FL1 | |
Graphics | AMD RadeonM 610MCores:2Frequency:2200Mhz DirectX:12 | |
Memory | Capacity | 2*UDIMM DDR5*2,Max Capacity64G Base Frequency:4800MHz/5600MHz,Overclock Frequency:6200MHz |
LAN | 3¡ÁLAN£º2 Gigabit + 1 Realtek RTL8125B 2.5G LAN | |
Audio | Realtek ALC897 HD Audio Codec(Audio Codec) | |
M.2Expansion Slot | Wireless: MediaTek MT7902 WiFi6/6E, tri-band, removable module, subject to actual product 2xM.2 SSD 2280 PCIE4.0 x4 & SATA3.0 | |

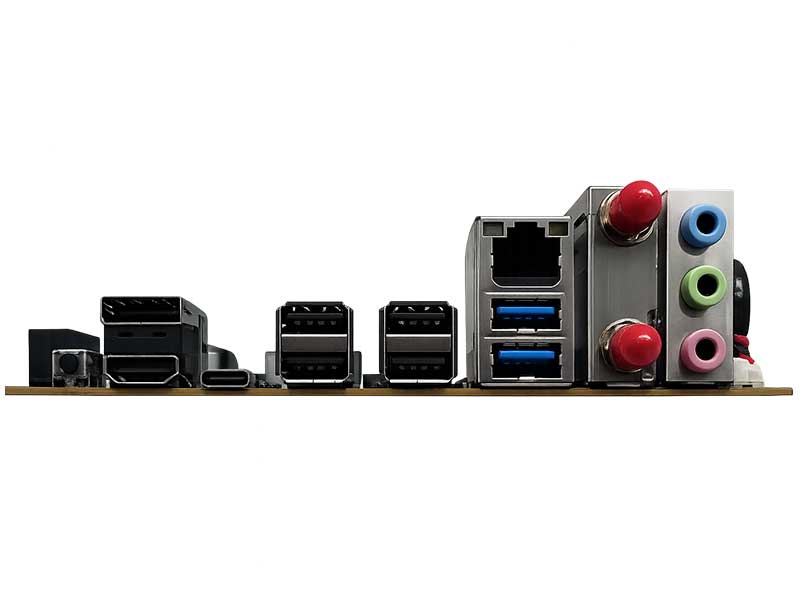

Rear-panelI0
| 1xClear CMOSbutton LxHDMI 1xDP Rear-panelI0 1xTYPE-C 4xUSB2.0 2xUSB3.0 1xRJ45 2xWIFIantenna interfaces 1xMic 1xLine-out 1xLine-in | |
Internal Connectors | 1XATXPWR1(240pin 220V power connector) 1XATXPWR2(8Pin 12Vpower connector) 2XDIMMinterface 1XAUDIO1header 1XJCOMheader 1XFPANELheader 4XSATA 6Gb/s 1XUSB2.0header 1XUSB3.0header 2XM.2 2280 PCIE5.0X4 (one on front and one on rear) 1XPCE 5.0X16 1XJSPEAKheader 1XARGB1header 1XCFANheader 2XSFANheader | |
Operating Temperature | Temperature:-10¡ãC~50¡ãC Humidity:5%~95%,Non-condensing | |
Physical Parameters | Dimensions | 170mm (L) x170mm (W) |
Operating System | Version | Windows 10/Windows 11/ Linux |
Sales Model | Description |
AOS-MAMDR778ST | R7 7840Hs |
Applications
Suitable for industrial automation control, motion control, medical applications, etc.
