AOS-COMWUA
Product introduction：
Specification
Processors | CPU | Support Intel® Alder LAKE Core™ i5 1240P 1.7G 12-core 16-thread (28W) I3(1215U)/I5(1235U/12450H/1340P)/i7(1280P/1360P) Processors |
chip set | Intel® SOC | |
BIOS | AMI 32Mbit, support diskless boot, wake on network, power on, watchdog, etc. | |
RAM | capacity | 4GB 2*DDR4 2133/2400 MHz memory , Max.64GB |
Storage | SATA interface M.2 interface MSATA interface | 1*SATA 3.0 1*M.2 Key M NVME/SATA 2280 1*MSATA |
Display | Chipset Output
| CPU Integrated Graphics HD Graphics DP+2*HDMI+LVDS Single, Dual, Triple (Simultaneous/Asynchronous Display) 1 × DP (maximum supported resolution: 3840 × 2160) 2 × HDMI (maximum supported resolution: 3840x2160 30HZ) |
Network | Chip
5G WIFI/4G | 2 × RTL8111H 10/100/1000M (RJ45 LAN) optional POE network port 4 x INTEL I211 10/100/1000M (RJ45 LAN) optional POE network port 1 x WIFI Module support 802.11b/g/n (M.2 PCIE half card) 1 x MINI PCIE |
I/O | Front USB 3.0 DC JACK DC Phoenix Terminal RJ45 GPIO COM
Rear COM Phoenix Terminal CAN TYPE-C USB2.0+PS/2 USB2.0 HDMI HDMI Power reset Power reset |
4x USB3.0 1 x DC JACK interface 1 × 3PIN Phoenix interface (9-36V wide voltage) 6 × RJ45 Gigabit POE interface 16 in 16 out GPIO Phoenix terminal ( ) 2 × RS232/485/422 COM optional
4 x RS232/422/485 COM optional 2 x CAN 1 x TYPE-C 2.0 2 x USB2.0+PS/2 4 x USB2.0 2 x HDMI2.0 1 x DP1.4 1 x POWER 1 x RESET 1 x LINE-OUT & MIC-IN&LINE IN |
Onboard Functions | COM Port USB2.0 USB3.0 LVDS FP LED LPT SPK
PCIE
| 4 x RS232 pins 3*USB pin (expandable 6*USB2.0) 1*USB pin (expandable 2*USB3.0) optional 1*LVDS 1*FP 1*SATA LED 1*LPT (optional) 1*SPK 1*Front panel 1*SATA 1*PCIE*16(X4 signal)
|
Power | Input rated Power Consumption | DC JACK 9V-36V 60W |
Watchdog | Output intervals | Interrupt, system restart 255 Level Timing Interval |
Physical Dimension | size | 273mm (L) x 180mm (W) |
environment | temperature humidity | Operating Temperature: 0°C ~50°C Storage Temperature: -20~70°C 5%~90% Non-condensing |
operating system | Versions | Windows 10/Windows 11/ Linux |
Ordering Info
Sales model | Description |
AOS-COMWUA | I3 1215U 1.2G 6/8 |
I5 1240P 1.7G 12/16 I5 1235U 1.3G 8/12 I5 13450H | |
I7 1260P 2.1G 12/16 I7 1255U 1.7G 10/12 I7 1360P |
Area of application
Suitable for education, restaurants, hotels, shopping malls, corporate meetings, government affairs and other areas.

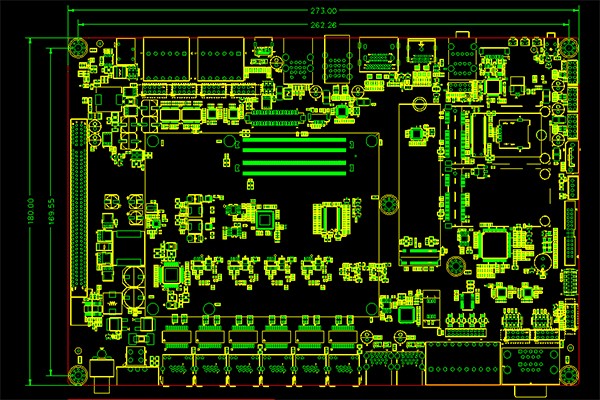

Dimension drawing
