AOS-3588DL
Product introduction£º
Product Overview
The motherboard is based on the Rockchip RK3588 high-performance big-small core architecture
application processor platform. The RK3588 integrates a quad-core Cortex-A76, a quad-core Cortex-A55,
and a high-performance Mali-G610 MC4 GPU, clocked at up to 2.4GHz. It offers exceptional computing
performance, 2D/3D graphics processing, and Full HD video encoding and decoding capabilities, perfectly
supporting 8K@60fps ultra-HD decoding and output.
Specification List
Function & Interface | Detailed Description |
CPU | RK3588 Quad-core Cortex-A76 and Quad-core Cortex-A55, up to 2.4GHz |
DDR | LPDDR4 2GB (4GB|8GB|16GB|32GB optional) |
Storage | The default comes with an 16GB EMMC NAND chip that can scale up to 256GB |
LVDS | 30-pin industry-standard dual LVDS supporting VESA/JEITA format up to 1080P output |
MIPI-DSI | 31-Pin FPC MIPI-DSI display port supporting up to 1920x1200 |
HDMI Output | 2 HDMI 2.1 standard display interface supports up to 8K output (one is mixed with EDP) |
HDMI Input | HDMI 2.0/1.4b standard video input interface, up to 4K@60Hz |
EDP | 20-pin industry-standard EDP supporting 1~4 lanes format up to 4K@60Hz output |
HP/MIC | Support CTIA 4-pole HP/MIC socket (Left-Right-GND-Mic) |
Line Output | Support standard left and right channel line output (pin header + headphone jack) |
Amplifier output | 8 Ohm 6W Dual Audio Amplifier Output |
MIC Input | Single-End MIC input (pin header) |
Line Input | Support standard left and right channel line input (pin header) |
USB Interface | 2 horizontal connectors (USB Host 3.0x1 and USB OTG 3.0x1), 8 pin headers (USB Hub 2.0x6, USB OTG 2.0x1 and USB Host 2.0x1) |
Serial Port | 1 TTL/485 compatible, 4 TTL/RS-232 compatible |
Micro SD Card | Self-elastic micro SD card socket, up to 256GB capacity (TF is mixed with CAN0) |

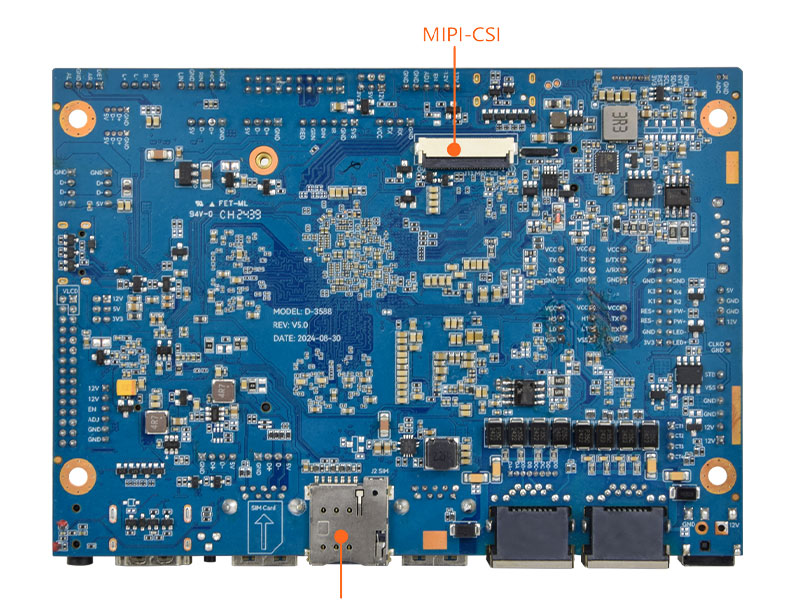

MIPI Camera | Support MIPI CSI camera up to 16 million pixels (optional) |
Camera | Support USB camera within 8 million pixels |
WIFI | Built-in high performance SDIO interface WiFi6 module, support IEEE 802.11 a/b/g/n/ac/ax, dual-band is configured by default. |
Bluetooth | Built-in high performance serial interface BT module with support for V2.1+EDR/BT v3.0/BT v3.0+HS/BT v4.0/BT v5.0 |
Ethernet | 2 port 10/100/1000M Adaptive Ethernet RJ45 connector + 4-Pin POE header |
m-PCIE | Industry standard m-PCIE 4G/5G module interface |
Backlight Control | 2 port Industry standard LCD backlight control header for LVDS & EDP, support for backlight switch and brightness adjustment |
Infrared RC | Standard infrared receiver pin header |
GPIO Signals | Up to 8-way GPIO signals (2-way mixed with TP, 4-way mixed with TF) for such as GPIO buttons and/or 3.3V digital input/output |
I2C Bus | I2C pin header and FPC for I2C capacitive screen and etc |
CAN Bus | 2 CAN pin headers (CAN0 mixed with TF) for CAN Bus peripherals (optional) |
SATA HD | Standard SATA 3.0 hard disk port with power supply header |
Real Time Clock | Ultra-low-power RTC circuit (CR1220 battery) with timer and alarm functionalities |
LED Indicator | Red LED indicator for standby and green LED indicator for running |
Buttons | Recovery mode button and power switch button |
DC Input | Supports 9~15V wide voltage DC power input |
Ambient Requirement | Working temperature -20¡ãC ~ 70¡ãC, working humidity 0%~95% (non-condensing) |
Physical Size | Length*Width*Height (135mm*95mm*14mm), PCB top side height 9mm |
Operating System | Recommend android 12, optional android 13, Linux Buildroot / Debian 11 /Ubuntu 22.04 and Tongxin UOS |
Dimensional drawing
