AOS-3568NL
Product introduction£º

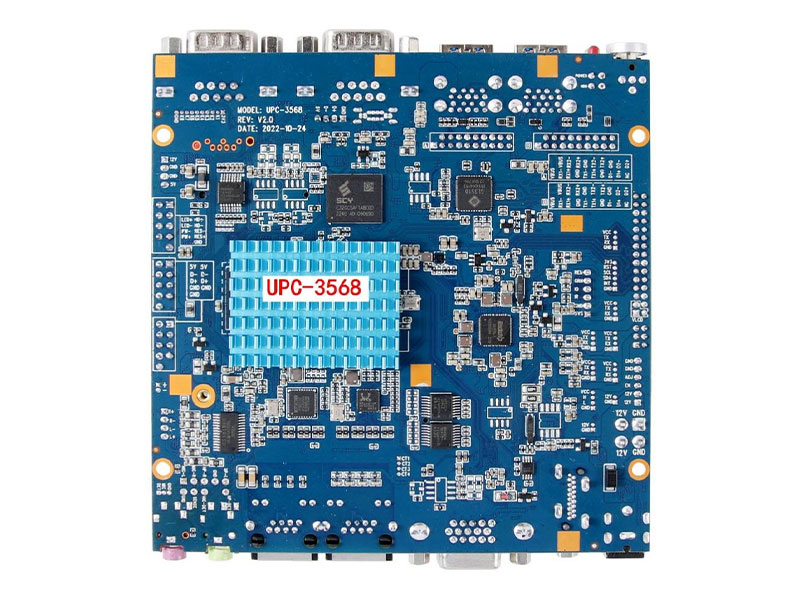

Product Overview
The RK3568 chip offers high performance and wide scalability. It's the most cost-effective chip in Rockchip's
product line, boasting industry-leading hardware specifications. The motherboard is based on Rockchip's
RK3568 high-performance application processor platform, featuring a large and small core architecture.
The RK3568 integrates a quad-core Cortex-A55 processor and a high-performance Mali-G52 2EE GPU,
clocked at up to 2.0GHz. It boasts exceptional computing performance, 2D/3D graphics processing,
and Full HD video encoding and decoding capabilities, supporting 4Kx2K @ 60fps ultra-HD decoding and
4Kx2K HDMI output.
Specification List
Function & Interface | Detailed Description |
CPU | RK3568 Cortex-A55 quad-core, up to 2.0GHz |
DDR | LPDDR4 2GB (4GB|8GB optional) |
Storage | The default comes with an 16GB EMMC NAND chip that can scale up to 128GB |
HDMI Output | HDMI 2.0a standard display interface supports up to 4K output |
LVDS | 30-pin industry-standard dual LVDS supporting VESA/JEITA format up to 1080P output |
VGA | Industry-standard DB-15 and 9-pin header VGA output up to 1080P |
Amplifier output | 8 Ohm 6W Dual Audio Amplifier Output |
Headphone Output | Stereo Headphone Output (Audio Jack) |
MIC Input | Differential MIC input (Audio Jack) |
USB Interface | USB 3.0 USB 3.0 USB 2.0 USB 2.0 Type-c |
Serial Port | 2 TTL/232/485 DB-9 serial port, with signal & power isolation; 1 TTL, 4 TTL/RS-232 compatible, 1 TTL/RS-485 compatible |
USB Camera | Support USB camera within 8 million pixels |
WiFi | Built-in high performance SDIO interface WiFi6 module, support IEEE 802.11 a/b/g/n/ac/ax |
Bluetooth | V2.1+EDR/BT v3.0/BT v3.0+HS/BT v4.0/BT v5.0 |
Ethernet | 2 port 10/100/1000M Adaptive Ethernet RJ45 connector |
Backlight Control | Industry standard LCD backlight control header, support for backlight switch and brightness adjustment |
Infrared RC | Standard infrared receiver pin header |
GPIO Signals | 8-way GPIO signals for such as GPIO buttons and/or 3.3V digital input/output |
Tamper Port | 1 Tamper control port |
I2C Bus | I2C pin header for I2C capacitive screen and etc |
CAN Bus | 1 CAN pin header for CAN Bus peripherals |
SATA HD | Standard SATA 3.0 hard disk port with power supply header |
Real Time Clock | Ultra-low-power RTC circuit (CR1220 battery) with timer and alarm functionalities |
LED Indicator | Red LED indicator for standby and green LED indicator for running |
Buttons | Recovery mode button and power switch button |
DC Input | Supports 9~15V wide voltage DC power input |
Ambient Requirement | Working temperature -20¡ãC ~ 70¡ãC, working humidity 0%~95% (non-condensing) |

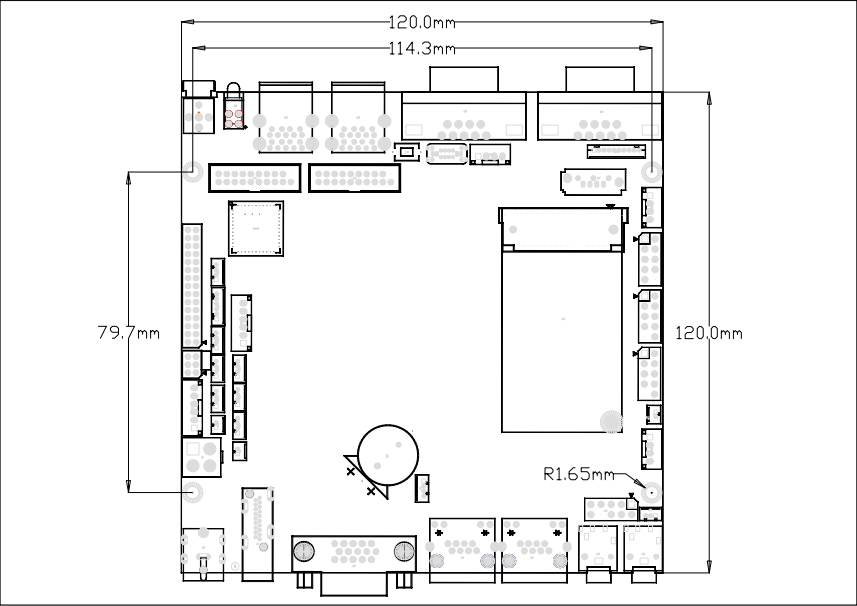

Physical Size | Length*Width*Height (120mm*120mm*18mm), PCB top side height 16mm |
Operating System | Recommended Android 11, Linux Buildroot/Debian 10/Ubuntu-18.04 and OpenHarmony 3.2 optional |
