AOS-3568ITXL
Product introduction£º
Product Overview
This motherboard is based on the Rockchip RK3568 high-performance application processor platform
featuring a large and small core architecture. The RK3568 integrates a quad-core Cortex-A55 processor and
a high-performance Mali-G52 2EE GPU, clocked at up to 2.0GHz. It offers exceptional computing performance,
2D/3D graphics processing, and Full HD video encoding and decoding capabilities, supporting 4Kx2K @ 60fps
UHD decoding and 4Kx2K UHD HDMI output.
Specification List
Function & Interface | Detailed Description |
CPU | RK3568 Cortex-A55 quad-core, up to 2.0GHz |
DDR | LPDDR4 2GB (4GB|8GB optional) |
Storage | The default comes with an 16GB EMMC NAND chip that can scale up to 128GB |
LVDS | 30-pin industry-standard dual LVDS supporting VESA/JEITA format up to 1080P output |
MIPI-DSI | 31-Pin FPC MIPI-DSI display port supporting up to 1920x1200 |
HDMI Output | 1 HDMI 2.0 standard display interface supports up to 4K output |
VGA Output | Industry-standard DB-15 VGA output up to 1080P |
Amplifier Output | 8 Ohm 6W Dual Audio Amplifier Output |
Headphone Output | Stereo Headphone Output (Audio Jack) |
MIC Input | Differential MIC input (Audio Jack) |
USB Interface | 8 horizontal connectors (USB Host 3.0x4, USB Hub 2.0x3 and USB OTGx1), 7 pin headers USB 2.0 |
Serial Port | 1 TTL, 2 TTL/RS-232/RS-485 compatible, 3 TTL/RS-232 compatible, |
Camera | Support USB camera within 8 million pixels |
WIFI | Built-in high performance SDIO interface WiFi6 module, support IEEE 802.11 a/b/g/n/ac/ax, dual-band is configured by default. |
Bluetooth | Built-in high performance serial interface BT module with support for V2.1+EDR/BT v3.0/BT v3.0+HS/BT v4.0/BT v5.0 |
Ethernet | 6 port 10/100/1000M Adaptive Ethernet RJ45 connector + 4-Pin POE PD header |
m-PCIE 4G | 1 Industry standard m-PCIE 4G module interface |
Backlight Control | 1 port Industry standard LCD backlight control header, support for backlight switch and brightness adjustment |
GPIO Signals | Up to 8-way GPIO signals for such as GPIO buttons and/or 3.3V digital input/output |
I2C Bus | I2C pin header for I2C capacitive screen and etc |
Security Port | 1 Tamper control port |
CAN Bus | 1 CAN pin headers for CAN Bus peripherals |
m-SATA | 1 Industry standard mSATA module interface |
SATA HD | 4 Standard SATA 3.0 hard disk port with power supply header |
Real Time Clock | Ultra-low-power RTC circuit (CR1220 battery) with timer and alarm functionalities |
LED Indicator | Red LED indicator for standby and green LED indicator for running |
Fan Header | SYS fan power and CPU fan power |
Buttons | Recovery mode button£¬power switch button and reset button |
POE PSE | 4-way RJ45 network port PSE output 48V power supply (optional) |
DC Input | Supports 9~15V wide voltage DC power input (18~52V power input optional) |
Ambient Requirement | Working temperature -20¡ãC ~ 70¡ãC, working humidity 0%~95% (non-condensing) |
Physical Size | Length*Width*Height (170mm*170mm*17.5mm), PCB top side height 16mm |
Operating System | Recommended Android 11.0, Linux Buildroot/Debian 10/Ubuntu-20.04 optional |

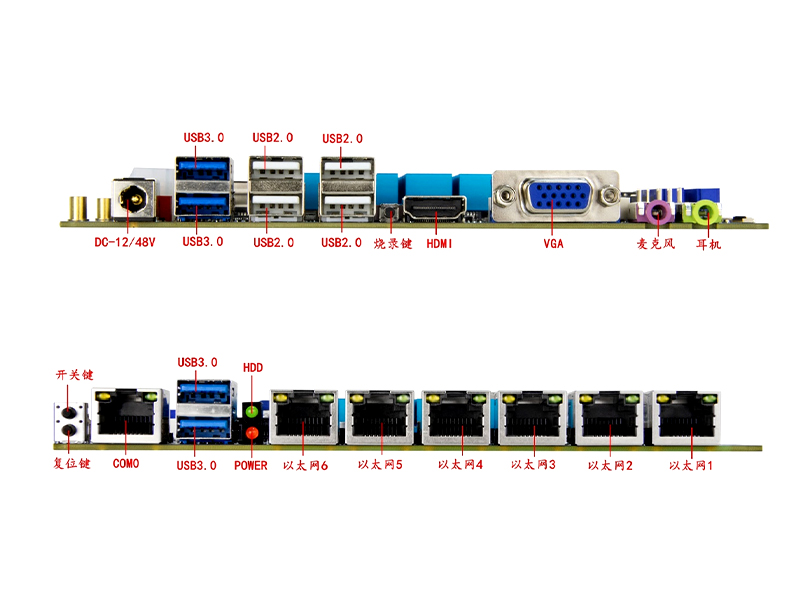

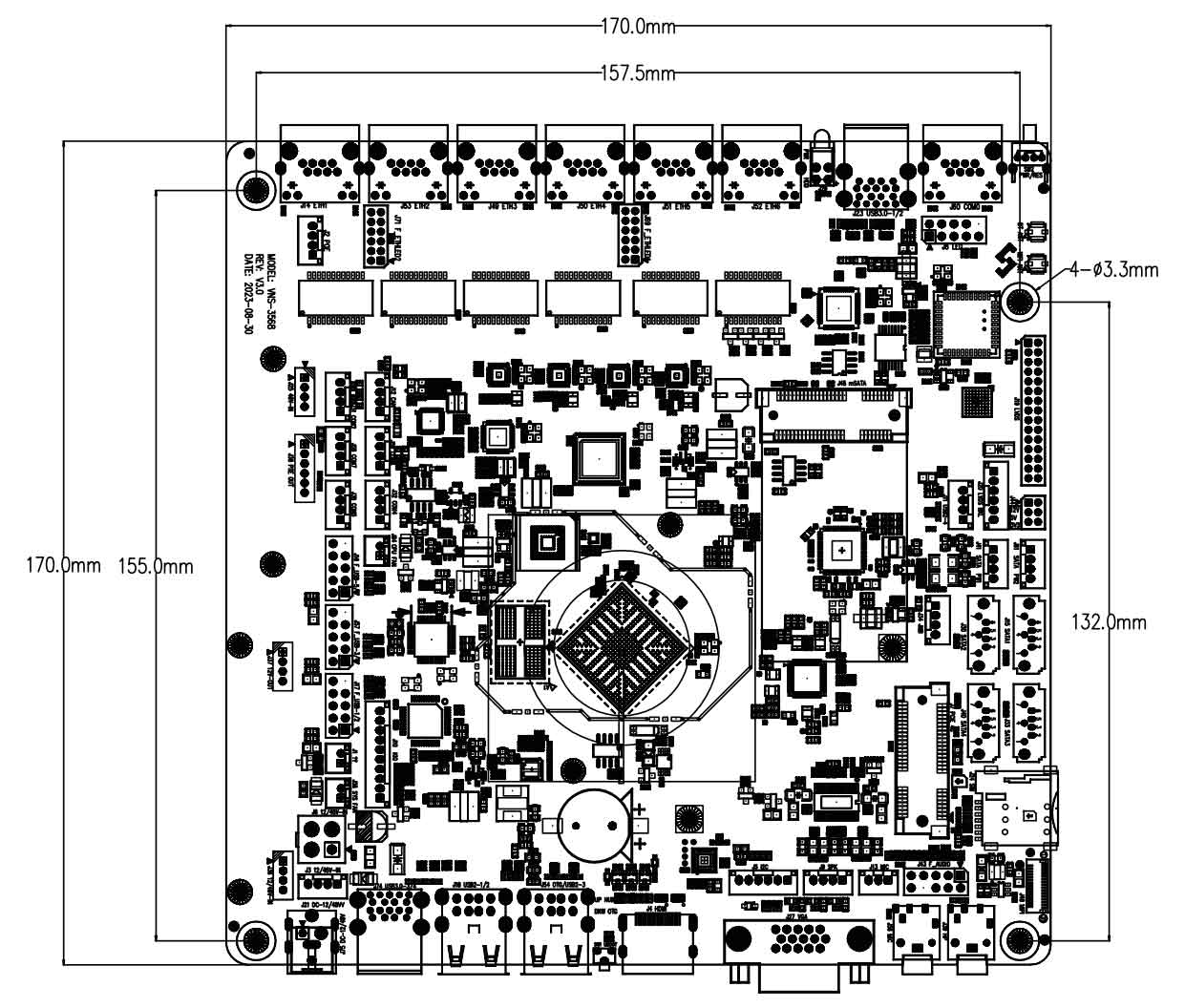

Physical Size
