AOS-3568DL
Product introduction£º
Product Overview
The AOS-3568DL motherboard is based on the Rockchip RK3568 high-performance, big-small-core
architecture application processor platform. The RK3568 integrates a quad-core Cortex-A55 processor and a
high-performance Mali-G52 2EE GPU, clocked at up to 2.0GHz. It offers exceptional computing performance,
2D/3D graphics processing, and Full HD video encoding and decoding capabilities, supporting 4Kx2K @ 60fps
UHD decoding and 4Kx2K UHD HDMI output.
Specification List
Function & Interface | Detailed Description |
CPU | RK3568 Cortex-A55 quad-core, up to 2.0GHz |
DDR | LPDDR4 2GB (4GB|8GB optional) |
Storage | The default comes with an 16GB EMMC NAND chip that can scale up to 128GB |
LVDS | 30-pin industry-standard dual LVDS supporting VESA/JEITA format up to 1080P output |
EDP | 30-pin FPC EDP supporting 1~2 lanes format up to 1920x1200 output |
MIPI-DSI | 31-Pin FPC MIPI-DSI display port supporting up to 1920x1200 |
HDMI Output | HDMI 2.0a standard display interface supports up to 4K output |
HDMI Input | HDMI 1.4 standard video input interface supports 720P and 1080P signals (pin header) |
HP/MIC | Support CTIA 4-pole HP/Mic socket (Left-Right-GND-MIC) |
Line Output | Support standard left and right channel line output (pin header + headphone jack) |
Amplifier output | 8 Ohm 6W Dual Audio Amplifier Output |
MIC Input | Differential MIC input (pin header) |
Line Input | Support standard left and right channel line input (pin header) |
USB Interface | 2 horizontal connectors (USB 3.0x1 and USB2.0x1), 7 pin headers USB 2.0 |
Serial Port | 1 TTL, 2 TTL/RS-232/RS-485 compatible, 6 TTL/RS-232 compatible |
Micro SD Card | Self-elastic micro SD card socket, up to 256GB capacity |
Camera | Support USB camera within 8 million pixels |
WiFi | Built-in high performance SDIO interface WiFi6 module, support IEEE 802.11 a/b/g/n/ac/ax |
Bluetooth | Built-in high performance serial interface BT module with support for V2.1+EDR/BT v3.0/BT v3.0+HS/BT v4.0/BT v5.0 |
Ethernet | 2 port 10/100/1000M Adaptive Ethernet RJ45 connector + 4-Pin POE header |
Mini PCI-E 4G | Industry standard Mini PCI-E 4G module interface |
Backlight Control | 2 port Industry standard LCD backlight control header, support for backlight switch and brightness adjustment |
Infrared RC | Standard infrared receiver pin header |
GPIO Signals | 8-way GPIO signals for such as GPIO buttons and/or 3.3V digital input/output |
I2C Bus | I2C pin header and FPC for I2C capacitive screen and etc |
ADC Input | 1-way ADC voltage acquisition signal |
CLK Clock | 1 CLKO homologous clock signal |
CAN Bus | 3 CAN pin header for CAN Bus peripherals (optional) |
SATA HD | Standard SATA 3.0 hard disk port with power supply header |
Real Time Clock | Ultra-low-power RTC circuit (CR1220 battery) with timer and alarm functionalities |
LED Indicator | Red LED indicator for standby and green LED indicator for running |
Buttons | Recovery mode button and power switch button |
DC Input | Supports 9~15V wide voltage DC power input |
Ambient Requirement | Working temperature -20¡ãC ~ 70¡ãC, working humidity 0%~95% (non-condensing) |
Physical Size | Length*Width*Height (135mm*95mm*9mm), PCB top side height 7mm |
Operating System | Recommended Android 11£¬optional Android 12/13, Linux QT/Debian 11/Ubuntu-20.04, Tongxin UOS and OpenHarmony 4.0 |

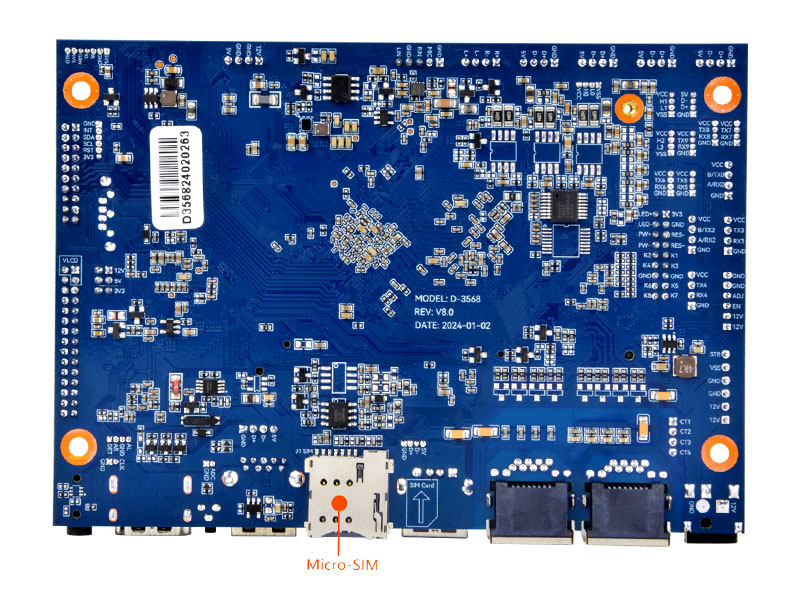

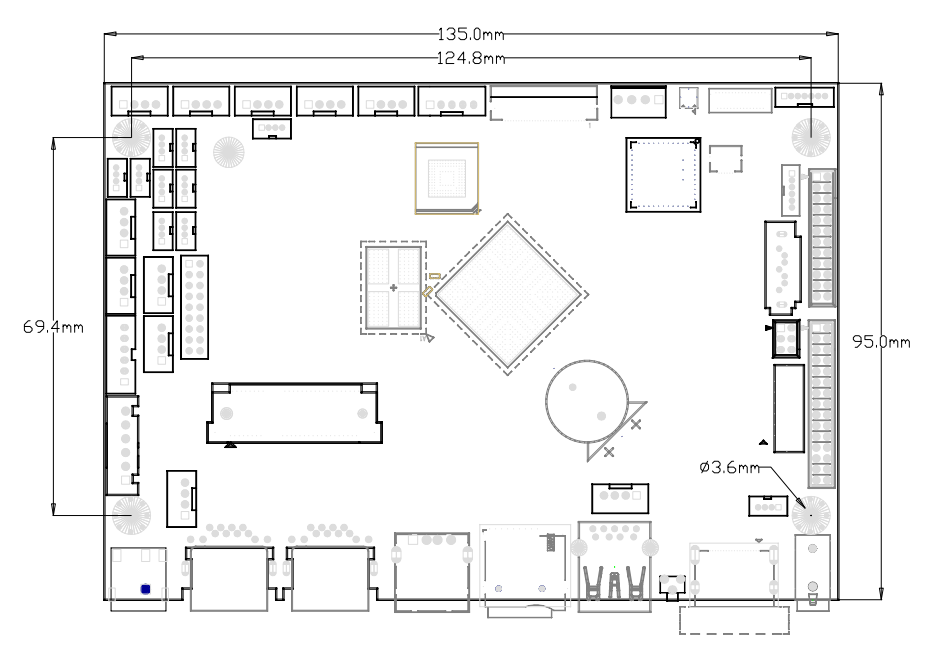

Physical Size
