Chipset

Intel® SOC

BIOS

EFI BIOS

Memory

Capacity

1*DDR5 SO-DIMM, Max. 16GB

Storage

M.2 Interface

SATA Interface

1*M.2 KEY-M 2280 (PCle_X2 NVMe)

1*SATA3.0, SATA Power 5V 2Pin

Display

Output

1*HDMI2.1,1¡ãLVDS (LVDS/EDP Select One) 1*DP1.4

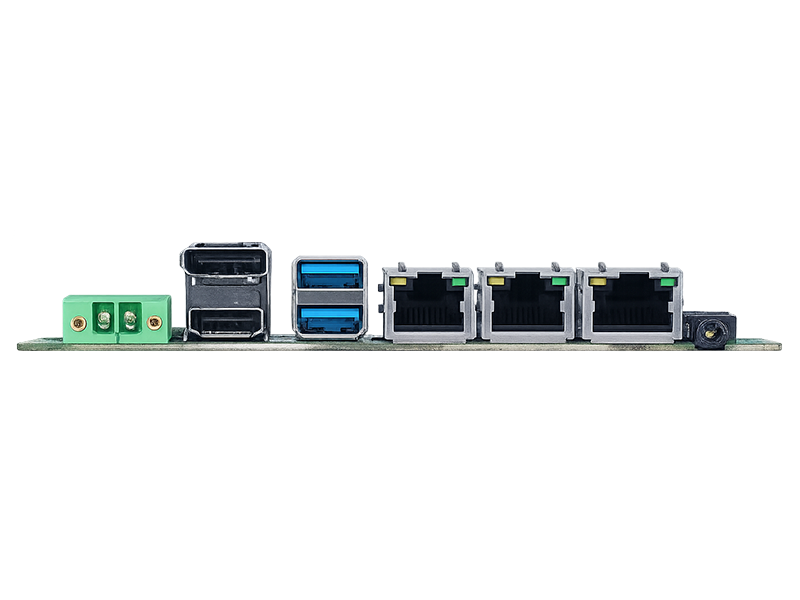

I/O

DC

USB

LAN

Audio

DP

HDMI

1*DC_IN,

2*USB3.0,

3*LAN(Intel I226-V, LAN1 & LAN2 Support 15W POE)

Audio,

DP1.4,

HDMI2.1

Expansion I/O / Functions

1*TPM2.0 (Optional Chip; Default: None)

1*M.2Key-B (PCle+USB2.0, Supports 4G), 1*Nano SIM Slot

1*M.2 Key-E (PCle_X1+USB2.0)

1*CAN+12C 2x3Pin, 2.0mm Pitch; 1*SPK 1x4, 2.54mm Pitch

6*COM,2x5Pin, 2.0mm Pitch (COM1/2: RS232 Default, RS485/RS422 via BIOS; Other 4: RS232)

1*CL_CMOS 1x2Pin, 2.0mm Pitch

2*USB2.0 Headers, 2x5Pin, 2.0mm Pitch

1*CPU_FAN, 4Pin; 1*SYS_FAN, 3Pin, 2.54mm Pitch

1*F_Panel,2x5Pin, 2.0mm Pitch; 1*BUZZ

1*8-bit GPIO Header, 2x5Pin, 2.0mm Pitch

1*F_AUDIO,2*5Pin, 2.0mm Pitch

1*AT/ATX 1x2Pin, 2.0mm Pitch

Power

Input

DC9-36V, 12V Optional

Watchdog

Output

Interval

Interrupt / System Reboot

255-Level Timer Interval

Physical Parameters

Dimensions

Weight

146mm (L) x 102mm (W)

160g excl. Heatsink; Heatsink 142g

Environment

Temperature

Humidity

Operating: -20¡ãC~+60¡ãC; RH: 0%~90%, Non-condensing

Storage: -40¡ãC~+85¡ãC; RH: 0%~90%, Non-condensing

Operating System

Version

Windows 10/Windows 11/ Linux

AOS-M3N100P

N97/N100/13-N305/N150
