Chipset

Intel® SOC

BIOS

AMI 32Mbit, supporting diskless booting, network wake-up, power-on startup, watchdog function, etc.

Memory

Capacity

1¡Á DDR5 memory slot, 4800MHz, maximum memory support is 16GB

Storage

M.2 interface

SATA interface

1¡ÁM.2£¨NVME£©

1¡ÁSATA 3.0

Display

export

2¡ÁHDMI port

1¡ÁVGA 2¡Á8Pin

1¡ÁLVDS (optional EDP), supporting synchronous or asynchronous display

Network

Chip

SIM

2¡ÁIntel i210/i211 AT network cards, supporting network wake-up and PXE function

1¡ÁSIM card slot

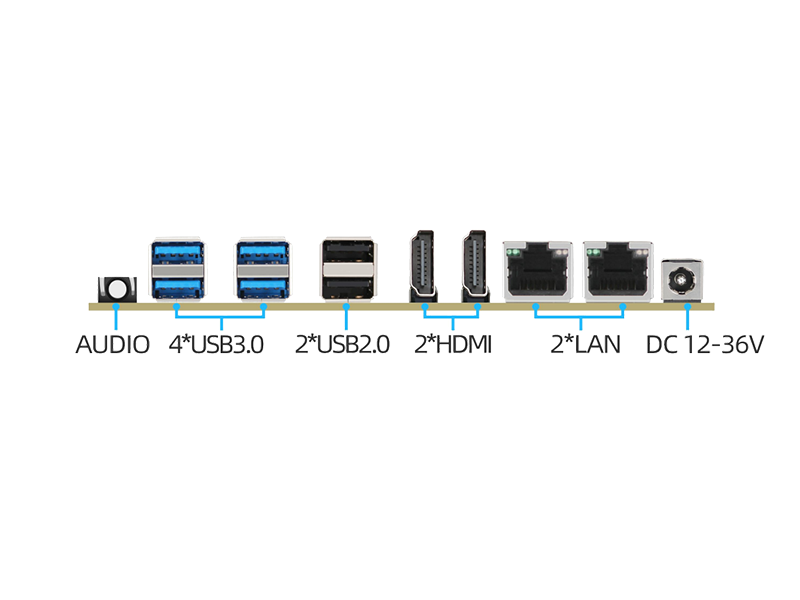

I/O

AUDIO

USB 3.0

USB 2.0

HDMI

LAN

DC

1¡ÁAUDIO (headset and microphone combined interface)

4¡ÁUSB3.0 interfaces

2¡ÁUSB2.0 interfaces

2¡ÁHDMI interfaces

2¡ÁLAN interfacesDC12-36V

Built-in functions

COM

USB2.0

FP

GPIO

TPM

SPK

CPUFAN

expand

6¡ÁCOM (COM1-2 supports RS232/485/422, COM3-6 supports RS232)

4¡ÁUSB2.0 2¡Á5Pin 1¡ÁFP 2¡Á4Pin

1¡ÁGPIO 2¡Á5Pin

1¡ÁTPM 2¡Á6Pin

1¡ÁSPK_CON 1¡Á4Pin

1¡ÁCPUFAN (on the back of the board) 1¡Á4Pin

1¡ÁMini-PCIe (supports 4G module/WIFI/BLE)

Power supply

Input

DC 12V, wide voltage input range of 12V - 36V

Watchdog

Output

Interval

Interrupt, system restart

255-level fixed interval

Physical parameters

Size

148mm (L) x 102mm (W)

Environment

Temperature

Humidity

Working temperature: 0¡ãC ~ 50¡ãC   Storage temperature: -20~70¡ãC

5% ~ 90%  without condensation

Operating System

Version

Windows 10/Windows 11/ Linux

AOS-M3N102L6CM

Intel N100 CPU

Intel N150 CPU

Intel M250 CPU

Intel N95 CPU

Intel I3 N305 CPU
