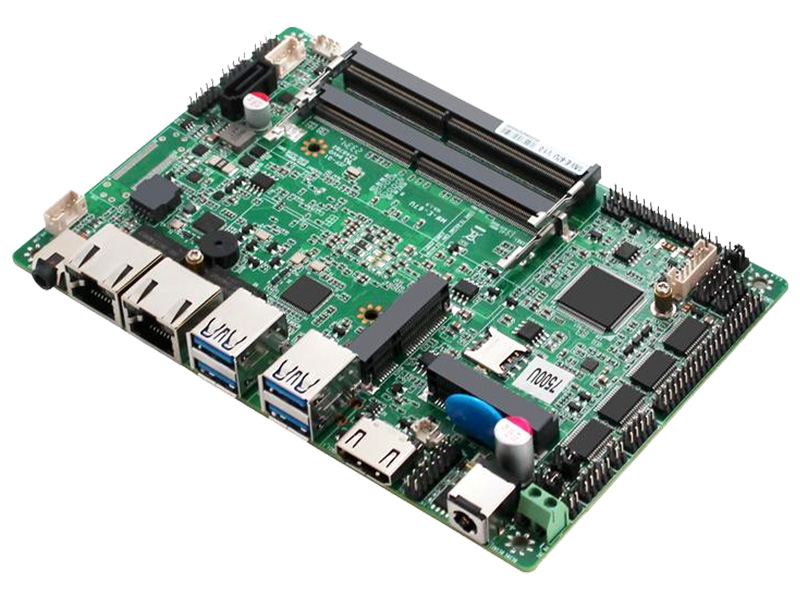

AOS-M3SU6C28M
Product introduction£º
Product Description
3.5-inch industrial motherboard (148 x 102 mm)
Supports SkyLake series 6-7 Intel Core i3/I5/I7 CPUs
Supports HDMI, VGA (pin header), and LVDS, synchronous or asynchronous display
Supports two Gigabit Ethernet ports and one HDMI port
Supports two DDR4 RAM (up to 32GB)
Supports four USB 3.0 ports, four USB 2.0 ports, and up to six COM ports
Supports wake-on-LAN, power-on, and watchdog timer
Complies with CE, FCC, and ROHS regulations
Specifications and parameters
processor | CPU | support Intel®Sky LAKE Core™ i5 6300U 2.4G 2 cores 4 threads(15W) I3-6100U/I3-7100U£¬I5-6300U/I5-7300U£¬ i7-6500U/i7-7500U The processor is optional. |
chipset | Intel® SOC | |
BIOS | AMI 32Mbit£¬Supports diskless boot, network wake-up, power-on after power-up, watchdog features, etc. | |
memory | capacity | 4GB 2¡ÁDDR4 2133/2400 MHz memory , Max.32GB |
store | SATA interface MSATA interface | 1¡ÁSATA 3.0 1¡ÁMSATA |
display | Chipset output | CPU Integrated graphics HD Graphics 1 ¡ÁHDMI Maximum supported resolution£º3840x2160 60HZ£© |
internet | Chip Wake-on-LAN | 2 ¡Á 10/100/1000M£¨RJ45 LANintel i210 AT+1*intel i219 V Íø¿¨£© Supports network wake-up, PXE functionality |
I/O | AUDIO HDMI USB 3.0 RJ45 DC JACK | 1¡Á AUDIO£¨(Headset and microphone two-in-one) 1 ¡Á HDMI 4 ¡Á USB3.0 2 ¡Á RJ45 Network port 1*DCIN DC input |
°åÔع¦ÄÜ | COM¿Ú USB2.0 LVDS VGA GPIO FP CPUFAN TPM SPKCON MSATA SATA3.0 expansion slot | 6¡ÁCOM£¨COM1-2 support RS232/485/422£¬COM3-6 support RS232£© 4¡ÁUSB2.0 1¡ÁLVDS 1¡ÁVGA 1¡ÁGPIO 1¡ÁFP 1¡ÁCPUFAN 1¡ÁTPM 1¡ÁSPKCON 1¡ÁMSATA 1¡ÁSATA3.0 1 full-size Mini-PCIe (supports 4G module/WIFI/Bluetooth), 1*EIO expansion port |
µçÔ´ | Input Power Rating | 12V DC Jack, wide-range 12V-24V input 60W |
¿´ÃŹ· | Output Interval | Interrupt and system restart 255-level timer intervals |
ÎïÀí²ÎÊý | Dimensions | 148mm (L) x 102mm (W) |
»·¾³ | Temperature Humidity | Operating temperature: 0¡ãC to 50¡ãC Storage temperature: -20¡ãC to 70¡ãC 5% to 90% humidity, non-condensing |
²Ù×÷ϵͳ | Version | Windows 7/Windows 10/ Linux |
Order information
sales model | illustrate |
AOS-M3SUI6C28M | CPU£ºI3-6100U/I3-7100U |
AOS-M3SUF6C28M | CPU£ºI5-6300U/I5-7300U |
AOS-M3SUJ6C28M | CPU£ºI7-6500U/i7-7500U |

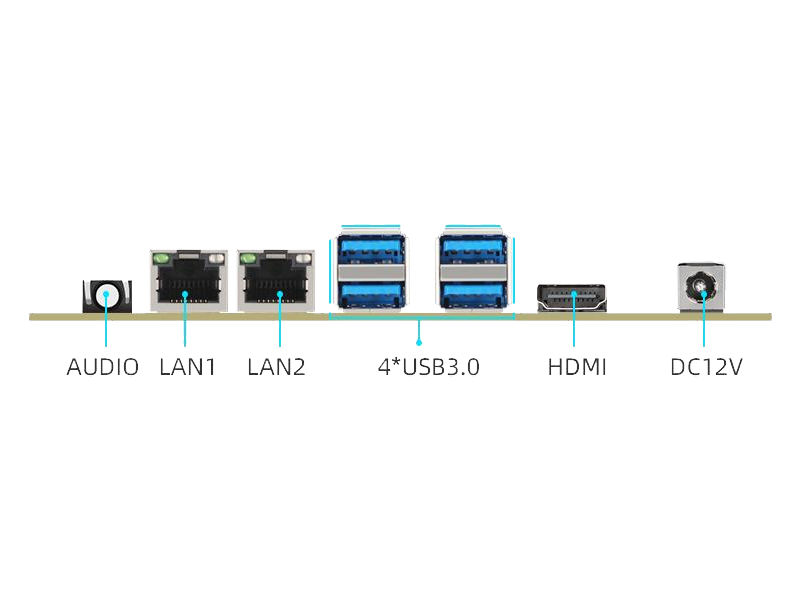

display diagram
application areas
Suitable for education, restaurants, hotels, shopping malls, company meetings,government transparency, and other fields.
