CPU/GPU

RAM

Storage

Sound card

Networking

LVDS

Dual Display

COM

USB

Backplane  I/O

OnboardI/O

Special Functions

Power Supply

Heat Dissipation

Dimension

Operating Temperature

Storage Temperature

Ambient Humidity

Onboard Intel®  Tigerlake-u (I3 1115U/I5 1135G7U /I7 1165G7)

1 x SODIMM memory slot, supports DDR4 2133MHZ memory up to 32GB

1¡ÁSATA ,1¡Á M.2 NVME SSD interface

Realtek ALC269, support 5.1 channel audio

2¡ÁINTEL RJ45Íø¿¨Ð¾Æ¬,PCI-E bus Gigabit NIC (optional support 4*INTLE I210 /8111H RJ45)

1¡ÁM.2(Key-M 2280,PCIE NVME SSD)

1¡ÁM.2(Key-E WIFI/BT)

1¡ÁM.2(Key-B 3042/3052,PCIE/USB3.0+USB2.0,4G/5G )

Dual-channel 24-bit LVDS, support for maximum resolution: 1920 ¡Á 1200

VGA+LVDS(eDP ) HDMI+ LVDS(eDP ) VGA+HDMI synchronous, asynchronous dual display

6¡ÁCOM RS-232£¬of which 4 groups are compatible with RS-485

2*USB3.0+6¡Á USB2.0 (onboard pins)

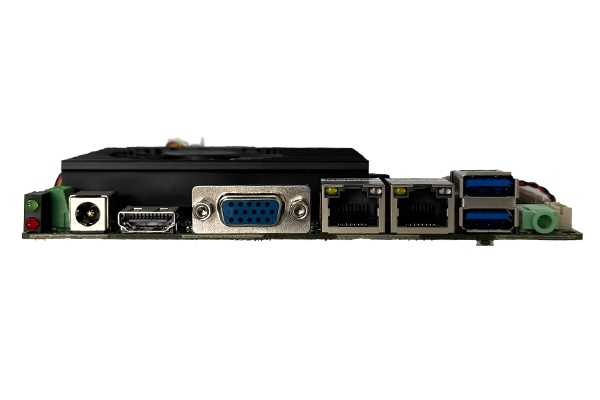

LED,DC, HDMI, VGA, LAN1, LAN2, USB, Line-out

1¡ÁLVDS(eDP) pin, 1¡Áinvert pin, 1¡ÁVGA pin, 1¡Áfront audio pin, 1¡Á4pin amplifier pin

6 x COM pins to extend 6 COM ports

3¡ÁUSB pin to extend 6 USB ports

1¡Á8bit GPIO pin, 1¡ÁSIM card slot

1¡Á2-pin DC 12V power input connector, 1¡ÁCPU fan power socket, 1¡Ásystem fan power socket

1 x SATA power supply pin, 1 x front panel pin, 1 x buzzer

Supports Watchdog, Diskless Boot, Wake-on-LAN, Power-On, Timed Power-On

DC 12V

Fanless

146mm(L)¡Á102mm(W)

-25~75¡æ

-40~80¡æ

0~90% air humidity, non-condensing
