CPU/GPU

RAM

Storage

Sound card

Networking

LVDS

Dual Display

COM

USB

Backplane  I/O

OnboardI/O

Special Functions

Power Supply

Heat Dissipation

Dimension

Operating Temperature

Storage Temperature

Ambient Humidity

Intel® Geminilake J4125 2.0G 4-core, 4-thread onboard

1¡ÁSODIMM memory slot, support DDR4 2400MHZ memory up to 16GB

1¡ÁSATA ,1¡Á M.2 NVME  SSD interface

Realtek,  support 5.1 channel audio

2¡ÁRTL 8111H RJ45 NIC chip, PCI-E bus Gigabit LAN card

1¡ÁM.2(Key-M 2280, PCIE NVME SSD)

1¡ÁM.2(Key-E WIFI/BT)

1¡ÁM.2(Key-B 3042/3052,PCIE/USB3.0+USB2.0,4G/5G)

Dual-channel 24-bit LVDS, support maximum resolution:1920¡Á1200

HDMI+LVDS(eDP ), HDMI+ VGAsynchronous, asynchronous dual display

6¡ÁCOM RS-232, 2 of them optional RS232 /RS-485

2*USB3.0+6¡Á USB2.0 (onboard pins)

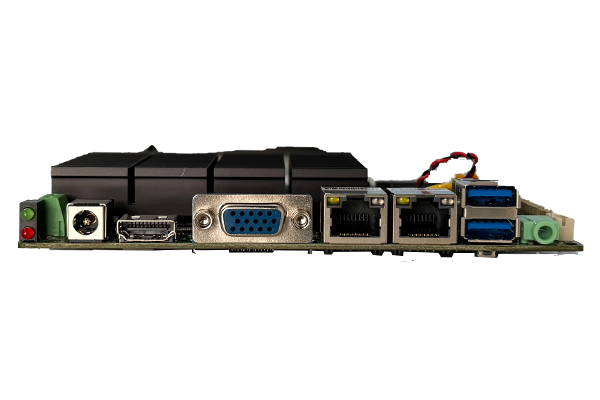

LED£¬DC, HDMI, VGA,LAN1, LAN2,USB3.0,Line-out

1¡ÁLVDS(eDP) pin, 1¡Áinvert pin, 1¡ÁVGA pin, 1¡ÁFront Audio pin, 1¡Á4pin Amplifier pin

6 x COM pins to extend 6 COM ports

3¡ÁUSB pin to extend 6 USB interfaces

1¡Á8bit GPIO pin, 1¡ÁSIM card slot

1¡Á2-pin DC 12V power input connector, 1¡ÁCPU fan power socket, 1¡Ásystem fan power socket

1 x SATA power supply pin, 1 x front panel pin, 1 x buzzer

Support Watchdog, Diskless Boot, Wake-on-LAN, Power On, Timer On

DC 12V

Fanless

146mm(L)¡Á102mm(W)

-25~75¡æ

-40~75¡æ

0~90%  air humidity, non-condensing
