CPU/GPU

RAM

Storage

Sound card

Networking

LVDS

Dual Display

COM

USB

Backplane  I/O

OnboardI/O

Special Functions

Power Supply

Heat Dissipation

Dimension

Operating Temperature

Storage Temperature

Ambient Humidity

On board Intel®  Alderlake-u (I3 1220P/1315U/I5 1240P/13420H /I7 1260P/12650H)

1¡ÁSODIMM memory slot, supports DDR5 4800MHZ memory up to 32GB

1¡ÁSATA ,1¡Á M.2 NVME SSD interface

Realtek ALC269, support 5.1 channels

2¡ÁINTEL i210 1000M RJ45 NIC chip+1¡ÁINTEL i225/i226 2.5G RJ45 NIC chip

1¡ÁM.2(Key-B ,PCIE 4G/5G)

1¡ÁMINI PCIE( WIFI/BT/4G)

Dual-channel 24-bit LVDS, support maximum resolution:1920¡Á1200

VGA+LVDS(eDP ) HDMI+ LVDS(eDP ) VGA+HDMI synchronous, asynchronous dual display

6¡ÁCOM RS-232, COM1,2 compatible with RS-485/422

2*USB3.0+6¡ÁUSB2.0 (onboard pins)

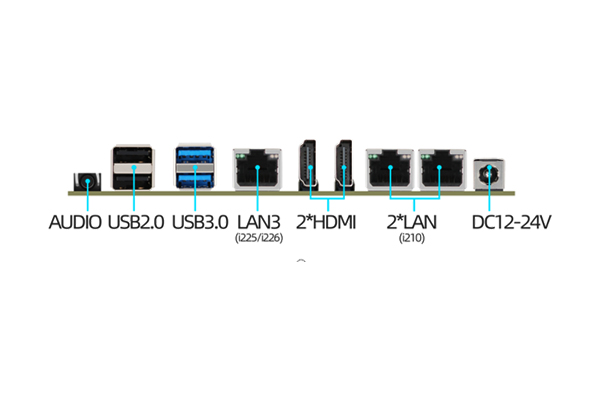

DC,  LAN1/2, HDMI1/2,LAN3, USB3.0, USB2.0, Line-out

1¡ÁLVDS(eDP) pin, 1¡Áinvert pin, 1¡ÁVGA pin, 1¡Áfront audio pin, 1¡Á4pin amplifier pin

6 x COM pins to extend 6 RS232 COM ports

3¡ÁUSB pin to extend 6 USB ports, 1xFP

1¡Á8bit GPIO pin, 2¡ÁSIM card slot, 1x TPM

1 x 2-pin DC 12V power input connector, 1 x CPU fan power supply socket, 1 x system fan power supply socket

1x SATA power supply pin, 1x front panel pin, 1x buzzer

Support Watchdog, Diskless Boot, Wake-on-LAN, Power On, Timer On

DC 12-24V

Fanless

148mm(L)¡Á102mm(W)

-25~75¡æ

-40~80¡æ

0~90% air humidity, non-condensing
