Processor

Integrated Intel® Celeron J1900/2.0G quad-core processor, compatible with Intel® Baytrail-I/M/D series CPUs

Memory

1*SO-DIMM memory slot, supports single-channel 1600/1333MHz DDR3L/1.35V memory up to 8GB

Display

Integrated Intel® HD Graphics core graphics card

1*VGA interface, 1*HDMI1.4 interface, 1*LVDS interface (default LVDS, optional eDP interface, order in advance to confirm)

Support VGA, HDMI, LVDS synchronous / asynchronous dual display

Internet

2* intel i211 Gigabit LAN card, support Wake on LAN/PXE

1* Mini-PCIe slot (half card and long card are supported), support WIFI/4G module

Storage

1* SATA2.0 interface

1* mSATA2.0 slot

Audio

Onboard ALC662/ALC897/ALC262 6-channel hi-fi audio controller, support MIC/Line-out, amplifier 3W

Backboard I/O interface

1* HDMI display interface

1* VGA display interface

1* USB3.0 interface, 1* USB 2.0 interface

2* RJ-45 Gigabit network interface

1* Line out connector (green)

1* Hard disk/power indicator

1* 12V DC power input connector

built-in I/O interface

1* LVDS interface 2*15pin, support dual-channel 24bit

1* Screen backlight power supply interface 1*6pin

4* USB 2.0 interface 2*5Pin

1* Front Audio Interface 2*5pin

1* Amplifier connector 1*4pin

1* SIM connector 2*3Pin

6* COM port (COM2/COM3 optional to support RS485)

1* PS2 interface 1*6Pin

1* Hard disk power supply interface 1*4Pin

1* Front Panel Switch Button and Indicator Lamp Interface 2*5Pin

1* 2pin DC 12V power connector

Fan interface

Fanless cooling design, 1*4pin CPU fan interface

GPIO

Support 4 input/output GPIO

BIOS

64Mb Flash ROM

watchdog

Support hardware reset function (256 levels, 0~255 seconds)

operating system

Windows 7/Windows 10/Linux

power types

Power supply by DC 12V ±5% power supply

Working temperature

60℃～20℃

Storage temperature

-20℃～70℃

Environment  temperature

5% to 95% relative humidity, non-condensing

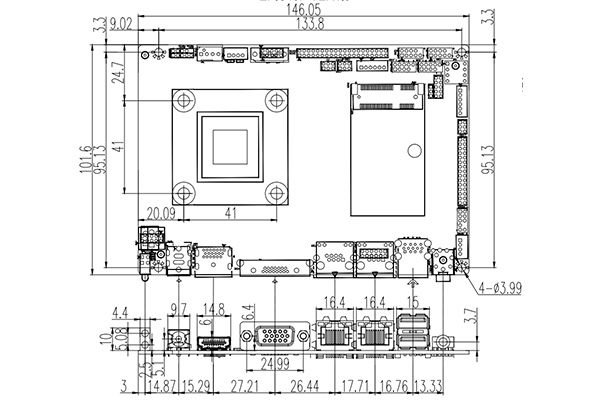

Size

146mm x 102mm

1

AOS-EPIC19D

J1900

4

2.0G

DDR3L

1

1

1

/

2

6

1

/

6 / 2

12V
