AOS-EPIC40D
Product introduction£º
Detailed specifications of the motherboard
project | describe |
Processor | Integration Intel®Celeron J4125 2.0GHz quad-core processor ,TDP 10W |
Memory | 1* SODIMM slot, supports single channel 2400MHz DDR4 memory, max support 16GB |
Display | Integration Intel®UHD Graphics 600 core graphics card |
1* VGA interface£¬1*HDMI interface£¬1*LVD or eDP interface£¨by default LVDS£© | |
Support VGA¡¢HDMI¡¢LVDS or eDP Synchronous/asynchronous ManaBars | |
Internet | 2* Realtek RTL8111H gigabit network adapter, support network wake up /PXE |
Storage | 1* 7pin SATA3.0 Hard disk interface, transmission rate up to 6Gbps |
1* M.2 KeyM SSD slot£¨2280/2242£© | |
Audio | Onboard ALC897 7.1 channel hi-fi audio controller Support MIC/Line-out, power amplifier (support 2 euro 5W dual channel) |
PCI-E
| 1* M.2 KeyE 2230 slots£¬ support WIFI module |
1* M.2 KeyB 3052 slots£¬ support 4G/5G module | |
Backboard I/O interface | 1* HDMI Display Interface |
1* VGA Display Interface | |
2* USB3.0 interface | |
2* RJ-45 gigabit network interface | |
1* Line out/MIC 2-in-1 port (Black) | |
1* HDD Power LED | |
1* 12V DC Power input interface | |
built-in I/O interface | 1* LVDS interface 2*15pin, support dual channel support24bit£¨either eDP or EDP, default£© |
1* screen backlight power supply port 1*6pin | |
4* USB 2.0 interface 2*5Pin (6 USB2.0 interfaces can be supported when 4G/5G is not required) | |
1* front audio interface 2*5pin | |
1* power amplifier interface 1*4pin | |
6* COM interface (COM1-6 supports RS232 by default, COM1/2 can support RS232 or RS485, COM3 can support RS485/422, COM4 can support RS485, COM1 to COM6 can also support 6 TTL serial ports) | |
1* Hard disk power port | |
1* 4pin ATX power interface | |
1* Front panel switch button and indicator port 2*5Pin | |
Fan interface | Fan free design, reserved 1*4pin CPU fan port |
GPIO | Supports four input/output GPIO |
BIOS | 64Mb Flash ROM |
watchdog | Support hardware reset function (256 level, 0~255 seconds) |
operating system | Windows 10/Linux |
power types | Adopts DC 12V power supply |
Working temperature | 60¡æ¡«-10¡æ |
Storage temperature | -20¡æ¡«70¡æ |
Environment temperature | 5%-95% relative humidity, no condensation |
Size | 146mm x 102mm |
ordering information
Serial Number | model | CPU | audit | frequency | Memory | HDMI | VGA | LVDS | EDP | LAN | USB | PS2 | LPT | COM/485 | POWER |
1 | AOS-EPIC40D-L26 VER1.0 | J4125 | 4 | 2.0G | DDR4 | 1 | 1 | 1 | / | 2 | 6 | / | / | 6/2 | 12V |
Application field
3.5-inch series industrial motherboard that supports Intel ® Gemini Lake-R full series CPU. It can be widely used in fields such as commercial displays, communication control, medical instruments, industrial control, financial equipment, cloud terminals, etc.

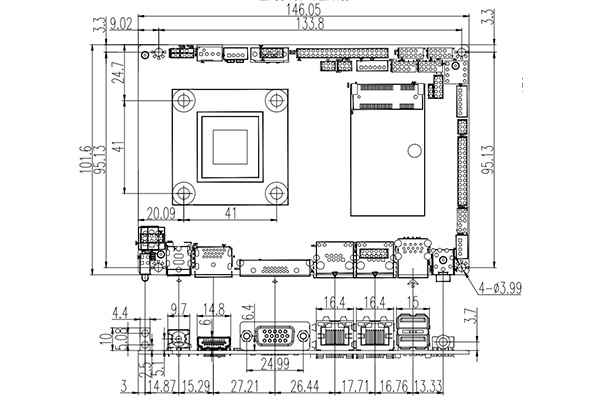

Dimension drawing
