Processor | CPU | Supports Intel® Alder Lake 12th Gen LGA1700 Core i3-12300, i5-12400, i7-12700, i9-12900, etc.
Supports Intel® Raptor Lake 13th Gen LGA1700 Core i3-13100, i5-13400, i7-13700, i9-13900, etc.
Supports Intel® Raptor Lake 14th Gen LGA1700 Core i3-14100, i5-14400, i7-14700, i9-14900, etc. |
Chipset | Intel® H670 Chipset |
BIOS | AMI BIOS; supports auto power-on, scheduled power-on, remote power on/off, and intelligent device recognition |
Memory | Capacity | 2 × DIMM slots, PC-DDR4 memory, supports 2133/2400/2666/2933/3200MHz, up to 64GB |
Storage | NGFF (M.2) Interface
SATA Interface | 1 × NGFF (M.2): Key-M, M.2 2280 NVMe PCIe 3.0 x4 SSD; optional M.2 2242 drive
NVMe (PCIe) protocol by default; hardware can be modified to support both SATA and PCIe protocols
The motherboard NGFF (M.2) interface can be modified to support both PCIe and SATA protocols; after modification, the SATA2 interface has no signal
1 × SATA1/2/3/4: standard SATA drive interfaces, supports SATA 3.0 |
Display | UHD 730/770
HDMI®2.0
HDMI_CON
VGA DB15
EDP
EDP_PWR
eDP-C Display Cable
PCI-E X16
PCI-E X4
Graphics Display Settings | Intel® UHD Graphics 730/770: supports single display, dual/triple/quad display duplication and extended desktop
1×HDMI®2.0: 4096/3840×2160@60Hz
1×HDMI_CON: 4096/3840×2160@60Hz(16Pin, 2×8Pin, 2.0mm)
1×VGA DB15: 1920×1080@60Hz
1×EDP: 4096/3840×2160@60Hz(30Pin, 2×15Pin, 2.0mm)
1 × EDP_PWR: eDP voltage-control header (6Pin, 2×3Pin, 2.0mm)
eDP uses an EDP-C display cable (30Pin integrated backlight cable)
2 × PCI-E X16: PCIe 3.0 x16 when only X16_1 is populated; if X16_2 is populated or both slots are populated, both operate at PCIe 3.0 x8; BIOS can be updated to support PCIe 4.0
3 × PCI-E X4: supports PCIe 3.0 x4; BIOS can be updated to support PCIe 4.0
By default, when a discrete graphics card is installed, the motherboard display outputs are disabled; BIOS can be modified to support simultaneous output from the discrete GPU and motherboard display ports |

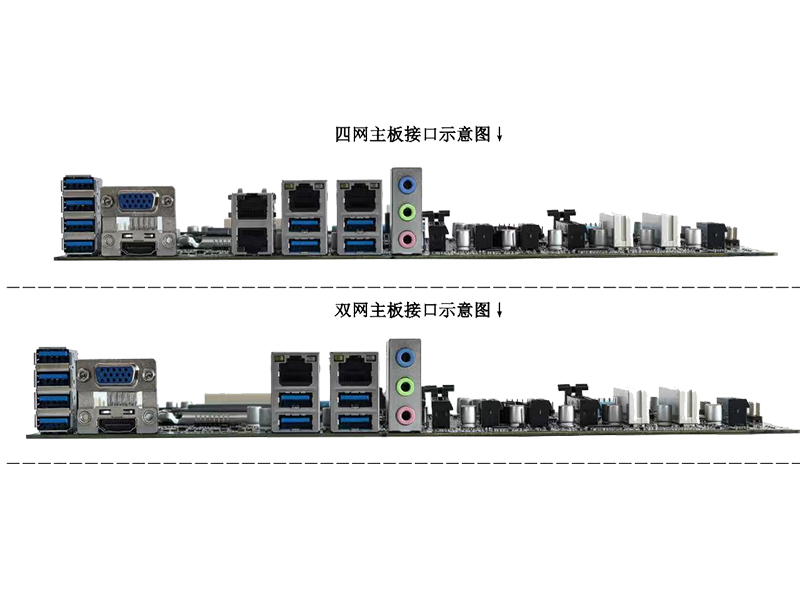

Network | 2/4/6×LAN
M2-WIFI | 6-LAN: 1×Intel® I219V + 5×Intel® I226-V 2.5G (default)
4-LAN: 1×Intel® I219V + 3×Intel® I226-V 2.5G
2-LAN: 1×Intel® I219V + 1×Intel® I226-V 2.5G
Wake-on-LAN, PXE
M2-WIFI: Key-E 2230, PCIe3.0 x1 + USB, Wi-Fi/BT |
I/O | USB3.2
F_USB3_A
F_USB1/2/3
Audio
LINE IN
LINE OUT
MIC IN
F_AUDIO
F_PANEL
AUTO_SW | 8×USB3.2 Gen1 rear, 5Gbps
F_USB3_A: 2× front USB3.2 Gen1 (20Pin, 2×10Pin, 2.0mm)
F_USB1/2/3: 2× front USB2.0 each (9Pin, 2×5Pin, 2.54mm)
Realtek ALC897, 6-ch HD audio
LINE IN (blue)
LINE OUT (green)
MIC IN (red)
F_AUDIO: 9Pin, 2×5Pin, 2.54mm
F_PANEL: power switch/LED, HDD LED, reset (9Pin, 2×5Pin, 2.54mm)
AUTO_SW: hardware auto power-on (3Pin, 1×3Pin, 2.0mm) |
Onboard Features | PCI
COM1/2
JCOM1
JCOM2
COM3-8
COM9-12
TTL
FAN1
FAN2
CLR_CMOS
GPIO_CN
JLPT | 2×PCI: standard PCI slots
COM1/2: RS232/RS485, BIOS-selectable (9Pin, 2×5Pin, 2.54mm)
JCOM1: COM3 Pin9 0V/5V/12V (6Pin, 2×3Pin, 2.0mm)
JCOM2: COM4 Pin9 0V/5V/12V (6Pin, 2×3Pin, 2.0mm)
COM3-8: RS232 default (9Pin, 2×5Pin, 2.54mm)
COM9-12: RS232 default (39Pin, 2×20Pin, 2.0mm)
All COM ports: optional TTL
FAN1: CPU fan, temp control (4Pin, 1×4Pin, 2.54mm)
FAN2: system fan, no temp control (3Pin, 1×3Pin, 2.54mm)
CLR_CMOS: clear/discharge (3Pin, 1×3Pin, 2.0mm)
GPIO_CN: GPIO (10Pin, 2×5Pin, 2.0mm)
JLPT: parallel printer port (25Pin, 2×13Pin, 2.0mm) |
Power | ATXPWR1
ATX2 | ATXPWR1: 24Pin standard ATX PSU
ATX2: 8Pin; CPU max turbo ~219W; ≥500W PSU recommended |
Watchdog | Watch Dog | Watchdog: 256 levels, 0-255s |
Physical Parameters | Dimensions | 305mm (L) × 220mm (W) × 42mm (H) |
Environment | Temperature
Humidity | Operating: -10°C to 60°C
Humidity: 5-95% RH, non-condensing |
Operating System | Version | Windows 11/10/Linux |
