Chipset

Intel Q470

BIOS

AMI BIOS

Memory

Capacity

4 ¡Á U-DIMM memory slots, supports dual-channel DDR4 2933MHz; up to 32GB per module, 128GB total

Graphics

Chip

Intele UHD Graphics

Storage

SATA Interface

M.2 Interface

4 ¡Á SATA III, supports RAID 0/1/5/10

1 ¡Á M.2 Key-M, NVMe/SATA auto-detect

Display

Output

VGA + HDMI + DP display interfaces

VGA: 1 ¡Á standard DB15 port (1920¡Á1080@60Hz)

HDMI: 1 ¡Á standard HDMI port (4096¡Á2160@30Hz)

DP: 1 ¡Á standard DP port (3840¡Á2160@60Hz)

Network

Chip

2 ¡Á Intel 10/100/1000Mb Ethernet ports

2 ¡Á LAN using Intel i219-LM + Intel i210-AT Ethernet controllers

I/O

Other I/O

Battery

1 ¡Á LPT, 1 ¡Á F_Audio, 1 ¡Á F_Panel, 1 ¡Á GPIO with 4 inputs/4 outputs, 1 ¡Á TPM (reserved), 1 ¡Á CPU FAN with temperature control, 2 ¡Á SYS FAN with temperature control

1*BAT CR2032

Onboard Features

COM

USB

Keyboard/Mouse

Audio

Expansion Slots

2 ¡Á COM1/2 support RS232/422/485; COM1 Pin 9 supports 5V/12V power, located on rear I/O

4 ¡Á COM3/4/5/6 support full RS232 signals, onboard

Supper I/O IT8786I HX

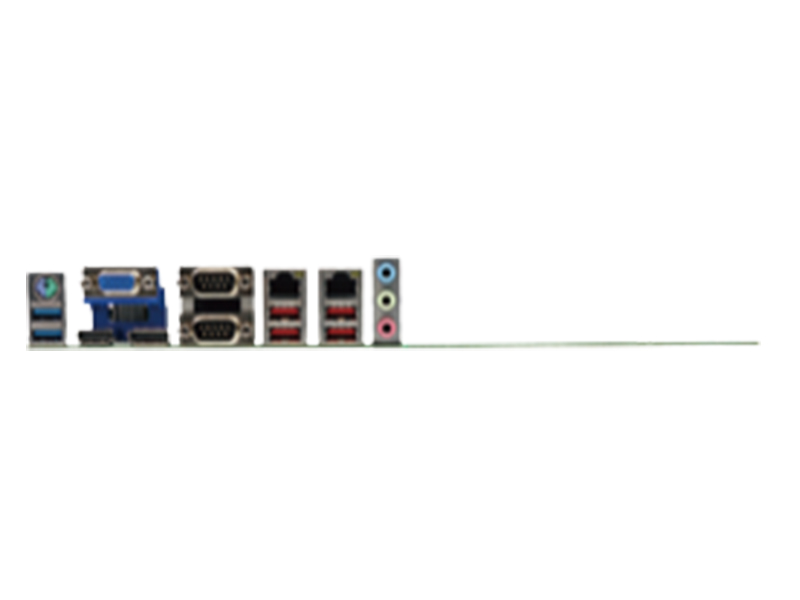

4 ¡Á USB3.2 Gen2, located below the LAN ports on rear I/O

2 ¡Á USB3.2 Gen1, located below PS/2 on rear I/O

6 ¡Á USB2.0 onboard via pin headers

1 ¡Á USB2.0 Type-A onboard

1 ¡Á PS/2 keyboard/mouse port on rear I/O

Line-out, Line-in, Mic-in on rear I/O

2 ¡Á PCIe x16 Gen4; when both slots are populated, both x16 slots automatically operate at x8; when the far x16 slot is empty, the near slot operates at x16

3*PCIe x4 Gen3

2*PCI 32-bit/33 MHz,IT892E

1 ¡Á mPCIe, supports Wi-Fi/BT, includes 1 ¡Á USB2.0 signal and supports 4G

PCI bridge chip IT892E

Power

Input

Standard ATX 24-pin + 8-pin power input

Watchdog

Output

Interval

Watchdog function

Supports system restart interval of 1-255 seconds

Physical Parameters

Dimensions

305mm x 244mm

Environment

Temperature

Humidity

Operating temperature: -10¡ãC to 60¡ãC   Storage temperature: -20¡ãC to 75¡ãC

5% to 95%, non-condensing

Operating System

Version

Windows 10/Windows 11/ Linux

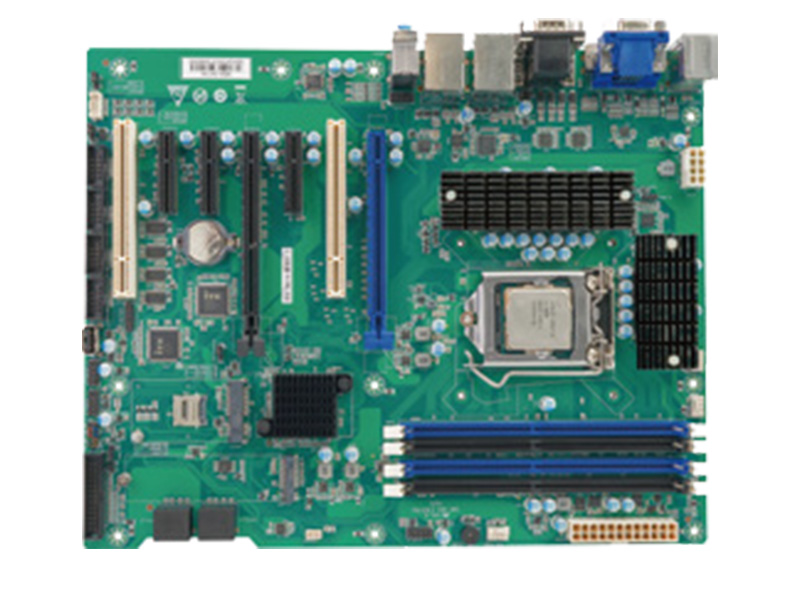

AOS-MSQ6702LZ

i9-10900T, i7-10700T, i5-10500T, i3-10300T; Pentium G6400T; Celeron G5905T

i9-11900T, i7-11700T, i5-11500T, i5-11400T, i3-11300T; Pentium G6405T; Celeron G5905T

10th Gen: i9-10900, i7-10700, i5-10500, i5-10400, i3-10300

11th Gen: i9-11900, i7-11700, i5-11500, i5-11400, i3-11300
