Chipset

Intel Q670

BIOS

AMI BIOS 256Mb SPI FLASH

Memory

Capacity

4 ¡Á DIMM memory slots, supports dual-channel DDR5 5600MHz; up to 32GB per module, 128GB total

Graphics

Chip

Intele UHD Graphics

Storage

SATA Interface

M.2 Interface

4 ¡Á SATA III, supports software RAID 0/1/5/10

1 ¡Á M.2 Key-M 2280 SSD socket, supports PCIe x4 signal

1 ¡Á M.2 Key-M 2280 SSD socket, NVMe/SATA auto-detect (BOM option shared with onboard PCIe x4 slot)

Display

Output

VGA + HDMI + DP display interfaces

VGA: 1 ¡Á standard DB15 VGA port, supports up to 1920¡Á1080@60Hz

HDMI: 1 ¡Á standard HDMI port, supports up to 4096¡Á2160@30Hz

2 ¡Á LAN using Intel i219-LM (PHY) + Intel i226-V (NIC) Ethernet controllers

DP: 1 ¡Á standard DP port, supports up to 4096¡Á2304@60Hz

Network

Chip

2 ¡Á LAN using Intel i219-LM (PHY) + Intel i226-V (NIC) Ethernet controllers

1 ¡Á Intel 10/100/1000Mb + 1 ¡Á Intel 10/100/1000/2500Mb Ethernet port

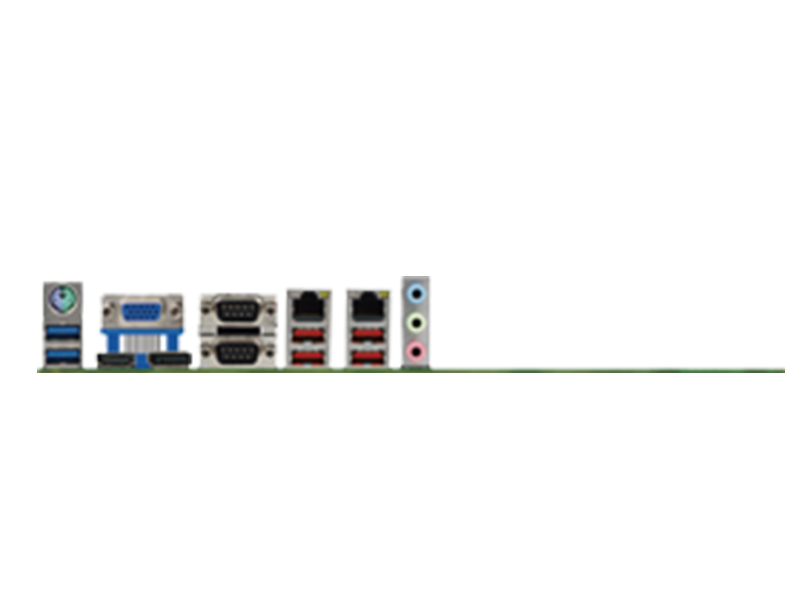

I/O

Other I/O

Battery

1 ¡Á LPT, 1 ¡Á F_Audio, 1 ¡Á F_Panel, 1 ¡Á eSPI, 1 ¡Á SMBUS, 1 ¡Á GPIO header supporting 4 inputs and 4 outputs; 1 ¡Á TPM2.0, 1 ¡Á CPU FAN with temperature control; 2 ¡Á SYS FAN with temperature control

1*BAT CR2032

Onboard Features

COM

USB

Keyboard/Mouse

Audio

Expansion Slots

4 ¡Á COM3/4/5/6 support full RS232 signals; 2 ¡Á COM1/2 support RS232/485/422

6 ¡Á USB3.2 on rear I/O (4 ¡Á 10Gbps, 2 ¡Á 5Gbps)

3 ¡Á USB3.2 onboard (1 ¡Á vertical USB3.2 port, 2 ¡Á USB3.2 headers, 5Gbps)

4 ¡Á USB2.0 via onboard headers

1 ¡Á PS/2 keyboard/mouse port

Line-out,Line-in,Mic-in;Realtek ALC897

2 ¡Á PCI-E x16 Gen 5.0 (x8 signal), 1 ¡Á PCI-E x4 Gen 4.0 (BOM option shared with onboard M.2), 2 ¡Á PCI-E x4 Gen 4.0, 1 ¡Á PCI-E x4 Gen 3.0, 1 ¡Á PCI, 1 ¡Á mPCI-E

Power

Input

Standard ATX 24-pin + 8-pin power input

Watchdog

Output

Interval

Watchdog function

Supports system restart interval of 1-255 seconds

Physical Parameters

Dimensions

305mm x 244mm

Environment

Temperature

Humidity

Operating temperature: -10¡ãC to 60¡ãC   Storage temperature: -20¡ãC to 75¡ãC

5% to 95%, non-condensing

Operating System

Version

Windows 10/Windows 11/ Linux

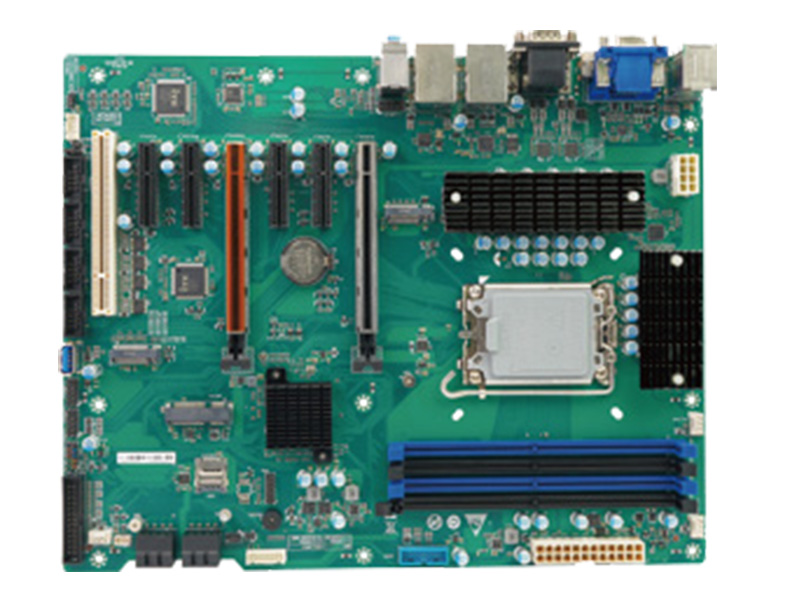

AOS-MSQ6702LZ

Supports: i9/i7/i5/i3, Pentium, Celeron G-series

i9:12900T,13900T,14900T

i7:12700T,13700T,14700T

i5:12500T,13500T,14500T

i3:12300T,13300T,14300T

Pentium: G7400T

Celeron: G6900T

i912900 /13900 /14900 i712700 /13700 /14700 i512500 /13500 /14500 i312300 /13300 /14300
