Chipset

Intel Q870/H810

BIOS

AMI BIOS 256Mb SPI FLASH

Memory

Capacity

4 ¡Á 288-pin U-DIMM memory slots, supports dual-channel DDR5 5200/5600MHz; up to 48GB per module, 192GB total

Graphics

Chip

Intel Xe LPG Graphics

Storage

M.2 Interface

SATA Interface

1 ¡Á M.2 M-Key 2280, SATA/NVMe auto-detect, PCIe x4/SATA3.0 signal

4 ¡Á SATA III, supports software RAID 0/1/5/10

Display

Output

VGA + HDMI + DP + eDP, four display interfaces

VGA: 1 ¡Á standard DB15 VGA port, supports up to 1920¡Á1080@60Hz

HDMI: 1 ¡Á standard HDMI port, supports up to 4096¡Á2160@30Hz

DP: 1 ¡Á standard DP port, supports up to 4096¡Á2304@60Hz

eDP: 1 ¡Á eDP interface

Network

Chip

2 ¡Á LAN using Intel i219-LM (PHY) + Intel i210-AT (NIC) Ethernet controllers

1 ¡Á Intel 10/100/1000Mb + 1 ¡Á Intel 10/100/1000/2500Mb Ethernet port

I/O

Other I/O

Battery

1 ¡Á LPT; 1 ¡Á F_Audio; 1 ¡Á F_Panel; 1 ¡Á eSPI; 1 ¡Á eDP; 1 ¡Á GPIO header supporting 4 inputs and 4 outputs; 1 ¡Á TPM2.0; 1 ¡Á CPU FAN with temperature control; 2 ¡Á SYS FAN, one with temperature control

1*BAT CR2032

Onboard Features

COM

USB

Keyboard/Mouse

Audio

Expansion Slots

4 ¡Á COM3/4/5/6 support full RS232 signals; 2 ¡Á COM1/2 support RS232/485/422

4 ¡Á USB3.2 Gen2 on rear I/O (10Gbps)

2 ¡Á USB3.2 Gen1 on rear I/O (5Gbps)

4 ¡Á USB3.2 Gen1 via onboard headers (5Gbps)

3 ¡Á USB2.0 onboard, including 1 ¡Á vertical Type-A port

1 ¡Á PS/2 keyboard/mouse port

Line-out,Line-in,Mic-in;Realtek ALC897

1 ¡Á PCIe x16 Gen 5.0; 1 ¡Á mPCIe (PCIe x1 3.0 + USB2.0 signal); 1 ¡Á PCIe x8 Gen 5.0; 2 ¡Á PCIe x4 Gen 4.0 (x2 signal); 2 ¡Á PCIe x4 Gen 4.0; 1 ¡Á PCI (32-bit/33MHz)

Power

Input

Standard ATX 24-pin + 8-pin power input

Watchdog

Output

Interval

Watchdog function

Supports system restart interval of 1-255 seconds

Physical Parameters

Dimensions

305mm x 244mm

Environment

Temperature

Humidity

Operating temperature: -10¡ãC to 60¡ãC   Storage temperature: -20¡ãC to 75¡ãC

5% to 95%, non-condensing

Operating System

Version

Windows 10/Windows 11/ Linux

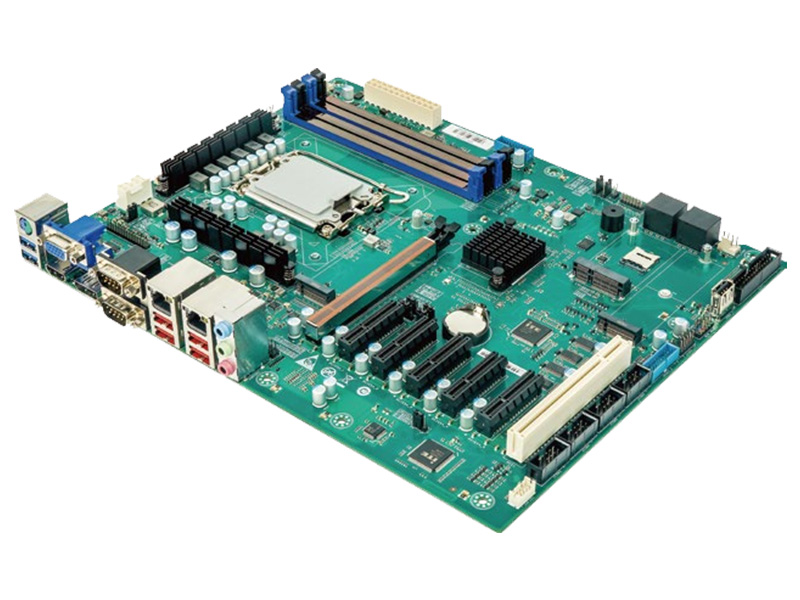

AOS-MSH8102LZ

Supported CPUs

Ultra 9 285 (65W) | Ultra 9 285T (35W low power)

Ultra 7 265 (65W) | Ultra 7 265T (35W low power)

Ultra 5 245 (65W) | Ultra 5 245T (35W low power)

Ultra 5 225 (65W) | Ultra 5 225T (35W low power)

Ultra9285K,Ultra7265K/KF,Ultra5245K/KF
