AOS-MSH110AM
Product introduction：
Product Description
Industrial-grade Micro ATX motherboard
ATX industrial motherboard
Supports Skylake/Kabylake LGA1151 Intel Core i3/i5/i7 CPUs
Supports Intel H110 high-speed chipset
Supports 2-4 Gigabit Ethernet ports and asynchronous dual display (HDMI + VGA)
Supports multi-channel DDR4 memory up to 64GB
Supports 1 x MSATA and 2 x SATA 3.0 interfaces
Supports 1 x PCIE x16, 1 x PCIE x1, and 2 x PCI interfaces
Supports Wake-on-LAN, power-on, and watchdog timer
Complies with CE, FCC, and ROHS regulations
Specifications and parameters
processor | CPU | Supports Intel® Skylake/KabyLake-S Core™ 6th to 9th Generation CPUs (i3/i5/i7/Xeon/Celeron/Pentium LGA1151 processors) |
Chipset | Intel® H110 | |
BIOS | AMI 32Mbit, supports diskless boot, LAN wake-up, power-on restart, watchdog timer, and other functions | |
memory | Capacity | 2*DDR4 2133/2400 MHz memory , Max.64GB |
store | SATA Port MSATA Port | 2*SATA 1*MSATA |
display | Chipset Output | CPU-integrated HD Graphics VGA+HDMI single display, dual display (synchronous/asynchronous) 1 × VGA (maximum supported resolution: 1920×1080) 1 x HDMI (maximum supported resolution: 1920×1080) |
internet | chip | 2~4 INTEL I211AT 10/100/1000M（RJ45 LAN） |

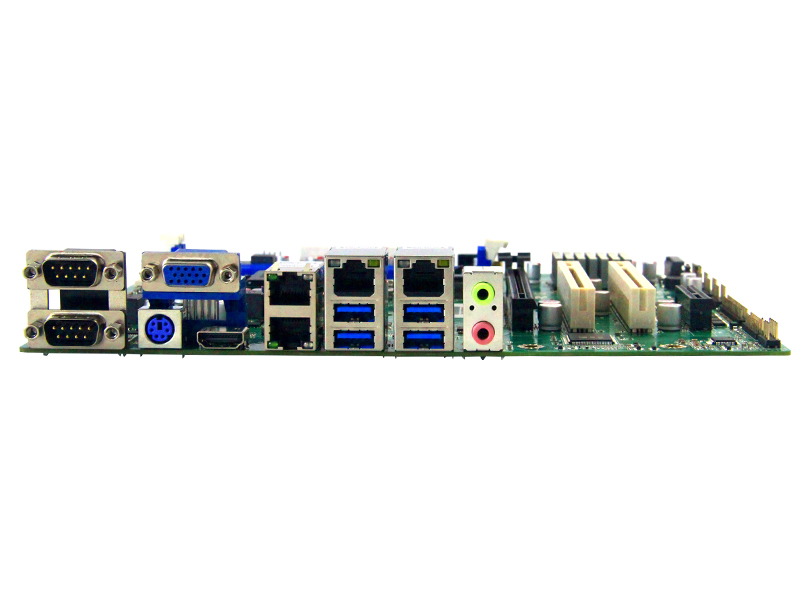

I/O | USB 3.0 PS/2 COM port audio | 4x USB 3.0 ports 1 x PS/2 keyboard and mouse 2 x COM ports 1 x LINE-OUT & MIC-IN port, integrated 6-channel high-fidelity audio |
Onboard features | COM port USB2.0 FP GPIO PCIE
| 4*RS232 4*USB2.0 1*FP 1*GPIO Four input and four output) 1*PCIE3.0 X16 1*PCIE X1 2*PCI |
Power supply | Input Power Rating | ATX 1*24Pin +1*8Pin 200W |
Watchdog timer | Output Interval | Interrupt, system restart 255 level timer intervals |
Physical parameters | Dimensions | 240mm (L) x 210mm (W) |
Environment | Temperature Humidity | Operating Temperature: 0°C to 50°C Storage Temperature: -20°C to 70°C 5% to 90% non-condensing |
Operating system | Version | Windows 10/Windows 7 / windows8 / Linux |
Order information
sales model | explain |
AOS-MSH110AM | CPU：i3-6100 clock speed 3.7GHz |
CPU：I3-7100 clock speed 3.9GHz | |
CPU：i3-8100 3.6GHz | |
CPU：i3-9100 clock speed 3.6GHz | |
AOS-MSH110AM | CPU：i5-6400 clock speed 2.7GHz |
CPU：i5-7400 clock speed 2.9GHz | |
CPU：i5-8400 clock speed 2.8GHz | |
CPU：i5-9400 clock speed 2.9GHz | |
AOS-MSH110AM | CPU：i7-6700c lock speed 3.4GHz |
CPU：i7-7700T clock speed 2.9GHz | |
CPU：i7-8700 clock speed 3.2GHz | |
CPU：i7-9700 clock speed 3.0GHz |
fields of application
Suitable for education, restaurants, hotels, shopping malls, company meetings,government transparency, and other fields.
