product type

Standard ATX industrial large master board

processor

Gen10 & 11 i9 / i7 / i5 / i3 / G full CPU TDP up to 125W

AOS-M W580 A also supports Gen10 & 11Xeon W series server CPU

chip set

Intel ® Q570 chipset, an optional W580 chipset

internal storage

4288PIN DDR4 UDIMM memory slot, single 32GB maximum support 128GB

DDR 4-2133 / 2400 / 2666 / 2933 / 3200

The AIoT 0-W580 also supports ECC memory

display control unit

Intel CPU Integrated display controller (depending on the assigned CPU)

Displays the interface

Four display output DP + DP + HDMI + DVI-D, support three display

memory

4 SATA 3.0 support SATA RAID 0 / 1 / 5 (S ATA1 has no signal when SATA SSD is inserted on M.2)

1 M.2 2242 / 2280 Key-MSSD socket supports SATA bus or Nvme x4 (Gen11 support only)

audio frequency

Post-IO supports MIC-In, Speaker-Out, and Line-In three-hole audio

network

2 Intel high-speed Ethernet ports: LAN1: i2252.5 Gb; LAN2: i 219 V

USB

10 IO leads directly after USB3.2 Type A (2 Gen2,8 Gen1)

2 USB2.0 board vertical plug, USB Dongle preset;

2 USB2.0 pins (2 pins against side reserved case front panel expansion)

LPT LPT

An LPT print port

gorge line

6 Serial port (COM1 & 2 supports RS232 / 422 / 485, COM3-6 supports RS232)

Keyboard mouse interface

One PS / 22-in-1 interface and two USB use a 3-in-1 connector

figure I/O

116-bit isolation digital I / O, providing power and ground, + 5V level

The eSPI bus interface

Provide 1 eSPI bus interface (2x6Pin wafer extended to four more RS232 or R S422 / 485 serial port)

The TPM / TCM nterface

The onboard encryption chip SLB9670 (SLB9672) supports TPM 2.0 (default) / BOM optional TCM chip

source

ATX power supply, support ATX / AT switch mode

Extended bus

2 x16 slots (2 x16 slots are automatically configured as x8 signal when distal x16 slot card; proximal PCIe x16 when no card)

4 PCIe x4 expansion slots (3 x4,1 x1), 1 PCI (32bit)

Working environment and atmospheric conditions

Temperature range-10¡æ ~60¡æ, relative humidity 10%~85%, atmospheric pressure 85 ~ 105 kPa

Storage of the ambient and atmospheric conditions

Temperature-40¡æ ~85¡æ; relative humidity 5%~ 9 5% (40¡æ), atmospheric pressure 85 ~ 105 kPa

Watch Dog

255 level programmable seconds / minutes, support timeout interruption or system reset

BIOS

AMI UEFI BIOS

operating system

Win10 x64£¬Win1 1 x64£¬Linux Ubuntu 18.04

PCB appearance and color matching

The PCB uses L. green

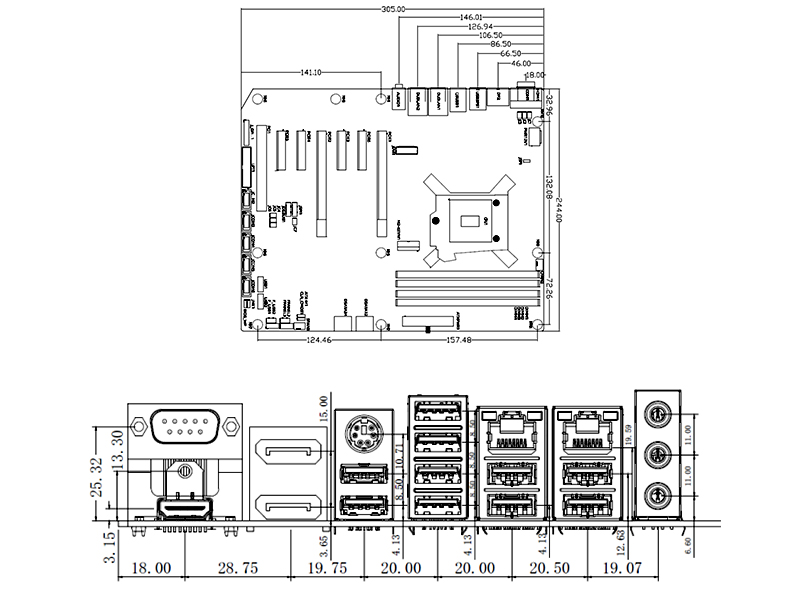

PCB Dimensions (LxWxH)

305mm X 244mm

A OS- M W580 A

W580

4 DDR4

4(3)

4 SATA

10

4

6

2

1PCI

6PCIe
