AOS-MMMU26M
Product introduction：
MINI-ITX Industrial Motherboard
Supports Meteor Lake-u 14th Ultra 3/5/7 CPUs
Supports Ultra5 135H/135U/Ultra7 155H/Ultra 9 185H
Supports dual Gigabit Ethernet ports and asynchronous triple display (2*HDMI/VGA+LVDS/edp)
Supports dual-channel DDR5 memory, maximum 96GB
Supports 1*SATA3.0 and 1*M.2 interface
Supports 6*RS232, 4*USB3.0, and 8*USB2.0 ports
Supports Wake-on-LAN, Power On, and Watchdog timer functions
Complies with CE, FCC, and RoHS standards
Specifications
processor
| CPU | support Meteor Lake-u Ultral 7 155H 4.8G 16 cores and 22 threads 45W) Meteor Lake-u Ultra5 135H/135U/Ultra7 155H/155U/Ultra 9 185H /185Uprocessor
|
chipset | Intel® SOC | |
BIOS | AMI 32Mbit, supports diskless boot, wake-on-LAN, power-on, watchdog timer and other functions. | |
Memory | capacity | 8GB DDR5 4800/5600 MHz memory , Max.96GB |
storage | SATA interface M.2 interface | 1*SATA 3.0 1*M.2 Key M NVME/SATA 2280 |
show | Chipset Output
| Integrated HD Graphics CPU HDMI+HDMI+LVDS/edp Single Display, Dual Display, Triple Display (Simultaneous/Asynchronous Display) 1 × VGA/HDMI Optional 2 × HDMI (Maximum supported resolution: 3840x2160 60HZ) |
network | chip WIFI 4G/5G | 1 × 10/100/1000M（RJ45 LAN-8111H）Optional dual network ports 1 x WIFI Module support 802.11b/g/n （M.2 E-KDY PCIE half card） 1X M.2B-KEYOptional |

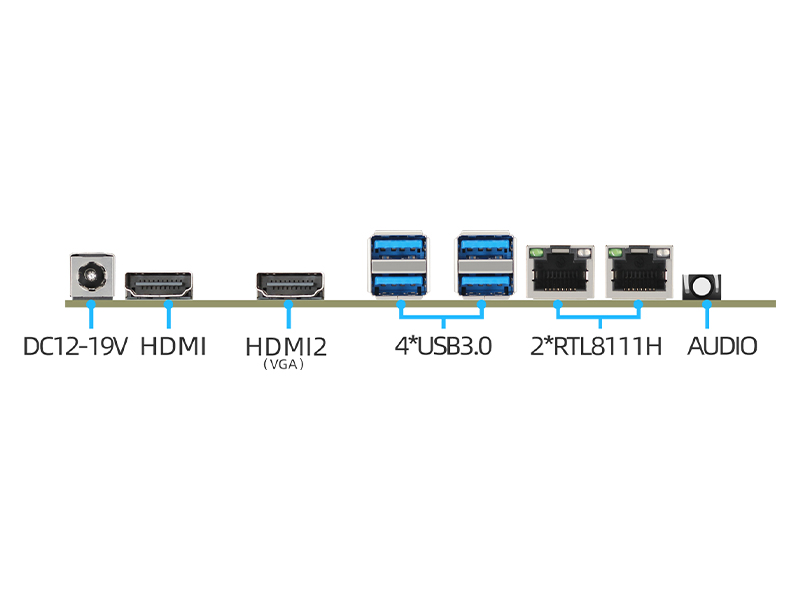

I/O | USB 3.0 VGA HDMI DC JACK Audio | 4x USB3.0 1× VGA/COM 1 × HDMI 2.0 1 × DC JACKinterface 1 × LINE-OUT & MIC-IN |
Onboard features | COM口 USB2.0 LVDS FP LED EDP GPIO LPT SPK Front panel SATA PCIE | 1*RS232 (optional 6 COM RS232/or 2*RS485) 1*USB header (expandable to 2*USB2.0) supports up to 6 USB2.0 ports 1*LVDS 1*FP 1*SATA LED 1*EDP (optional 2 EDP ports) 1*4-in-4-out GPIO (optional) 1*JLPT (optional) 1*SPK 3W amplifier 1*Front panel 1*SATA 1*PCIe x4 |
Power supply | Input Rated Power Consumption | DC JACK 12V 60W |
Watchdog timer | output interval | Interruption, system restart; 255-level timer interval |
Physical parameters | size | 170mm (L) x 170mm (W) |
Environment | temperature humidity | Operating temperature: 0°C ~ 50°C; Storage temperature: -20~70°C; 5%~90% non-condensing. |
Operating system | Version | Windows 10/Windows 11/ Linux |
Ordering information
Sales model | illustrate |
AOS-MMMU26M-L1 | Ultra5 135H/135U/Ultra7 155H/155U/Ultra 9 185H /185U (Single-net single-COM) |
AOS-MMMU26M-L2 | Ultra5 135H/135U/Ultra7 155H/155U/Ultra 9 185H /185U (Dual-network single COM) |
Application areas
Suitable for education, restaurants, hotels, shopping malls, company meetings,government information disclosure and other fields.
