AOS-MMAUHXW
Product introduction：

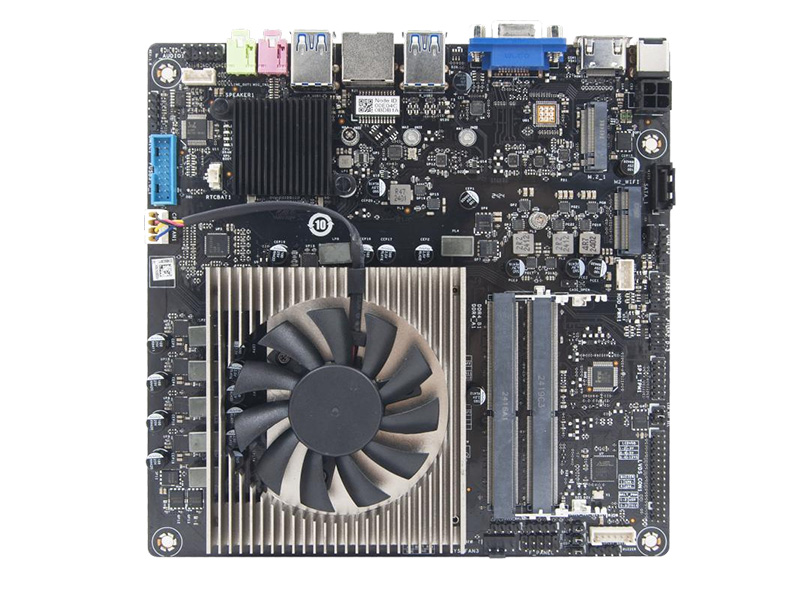

MINI-ITX Industrial Motherboard (170*170mm)
Supports Intel Core i5-12600HX, i5-12450HX
Supports asynchronous single, dual, and triple display (HDMI + VGA + LVDS)
Supports Gigabit Ethernet port, 2 x USB 3.0 ports, 2 x USB 3.0 interfaces
Supports dual-channel DDR4 memory, maximum 128GB
Supports Wake-on-LAN, Power On, Watchdog timer, etc.
Complies with CE, FCC, and RoHS standards.
Specification
Processor | CPU | Intel Core" i5-12600HX Processor 18M Cache, up to 4.60 GHz(I5 Intel Core" i5-12450HX Processor 12M Cache, up to 4.40 GHz |
Chipset | Intel° HM670 | |
BIOS | UEFI | |
Memory | Capacity | 4GB 2×DDR4 2133/2400 MHz memory , Max.128GB |
Storage | M.2 | 1xM.2 WIFI/BT/CNVI 1*M.2 Key M NVME/SATA 2280 |
Display | Chip Output
| Intel UHD Graphics for 12th Gen intele Processors HDMI+VGA Singal display, Double display（synchronpus/Asynchronous display） 1 ×HDMI （Max Resolution：3840x2160 60HZ） 1 ×VGA （Max Resolution：1920x1080 30HZ） |
Internet | Lan WIFI/3G/4G | Realtek 8111M Gigabit Ethernet Card 1 x WIFI Module support 802.11b/g/n （M.2 PCIE half card） |

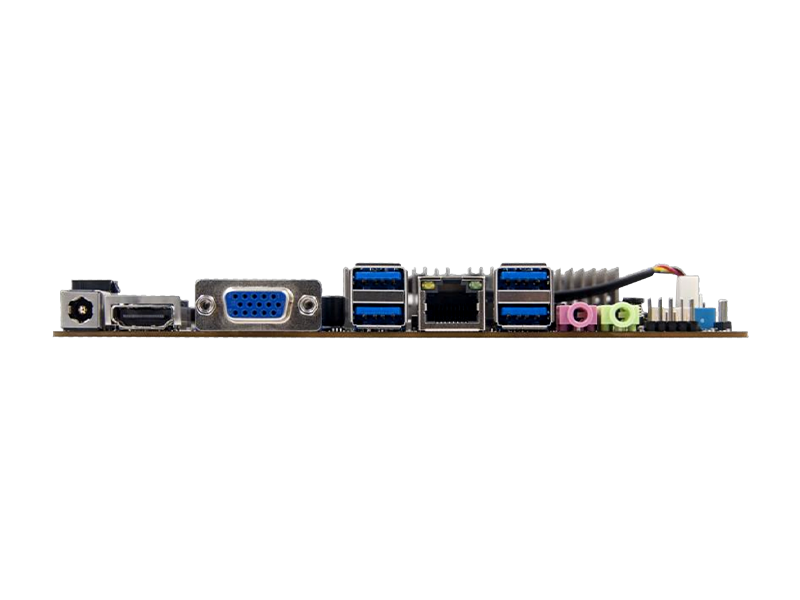

I/O | POWER Rest Audio USB3.0 USB2.0 HDMI VGA RJ45 DC JACK Mic Line-out | 1x Switch 1x reset 1 × ALC897+LTK5208 2xUSB3.2 Gen2 2xUSB3.2 Gen2 1xHDMI 1.4(Colay HDMI2.0) 1xVGA/COM/DP++(Colay 可optional) 1 × RJ45 1 × 1xDC-Jack(standard HP 头 5.5mm) 1xMic 1xLine-out |
Onboard Function | PWR IN FP_AUDIO Speaker SATA PWR SATA CPU FAN USB2.0 LVDS INV_VOT SEL SOC CON TN SYS FAN INVERTER LCD_VOL SEL TPM2.0 USB3.0 BUZZER DMIC CASE OPEN | PWR IN(4pin 12v Power port) FP_AUDIO pin Speaker socket 1*SATA PWR Socket 1*SATA 6Gb/S (SATA!II) CPU FAN Port 2.5* USB2.0 Pin(5*USB2.0) LVDS CON Pin INV_VOT SEL Pin(with jump cap) SOC CON TN Pin和 SOC CON Pin SYS FAN Port INVERTER Socket LCD_VOL SEL Pin Jump cap TPM2.0 Pin 1*USB3.0Pin(2*USB3.0) BUZZER Pin DMIC Pin CASE OPEN Pin |
Power | Input Rated power | DC Jack 19V 90-200W |
Watchdog | Output Interval | Interrupts, system restart 255 level timing interval |
Physical parameters | Dimensions | 180mm (L) x 206mm (W) x 38mm (H) |
Environment | Temperature Humidity | Working temperature：0°C ~50°C Storage temperature：-20~70°C 5%~90% No condensation |
Operating system | Version | Windows 11/ Windows 10/ Linux |
Ordering information
Sale model | illustrate |
AOS-MMAUHXW | i5-12600HX |
AOS- MMAUHXW | i5-12450HX |
Size Image
Application area
Applicable to Education ,restaurants, hotels, Shopping malls, corporate meeting, goverment affairs disclosure and other fields.
