chipset

Intel® SoC

BIOS

AMI 32Mbit, supports diskless boot, LAN wake-up, power-on restart, watchdog timer, and other functions

Memory

capacity

4GB  DDR3 1333/1600 MHz memory ,  Max.8GB

Storage

SATA interface

M.2 interface

1*SATA 3.0

1*M.2  Key M NVME/SATA 2280

Display

Chipset

 Output

CPU-integrated HD Graphics

VGA (optional EDP) + HDMI + LVDS/EDP (optional) Single display, dual display (synchronous/asynchronous)

1 x VGA/COM port (optional)

1 x HDMI (maximum resolution: 3840x2160 30Hz)

Network

Chip

WIFI

4G/3G

1 x 8111H 10/100/1000M (RJ45 LAN) with optional dual Ethernet ports or dual Intel Ethernet ports

1 x Wi-Fi Module supporting 802.11b/g/n (M.2 PCIE half card)

1 x Mini PCIE slot (optional)

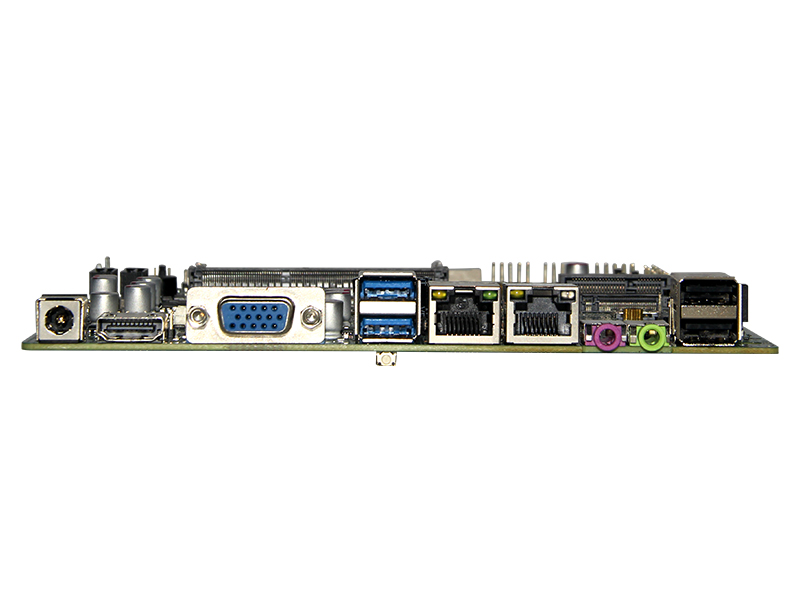

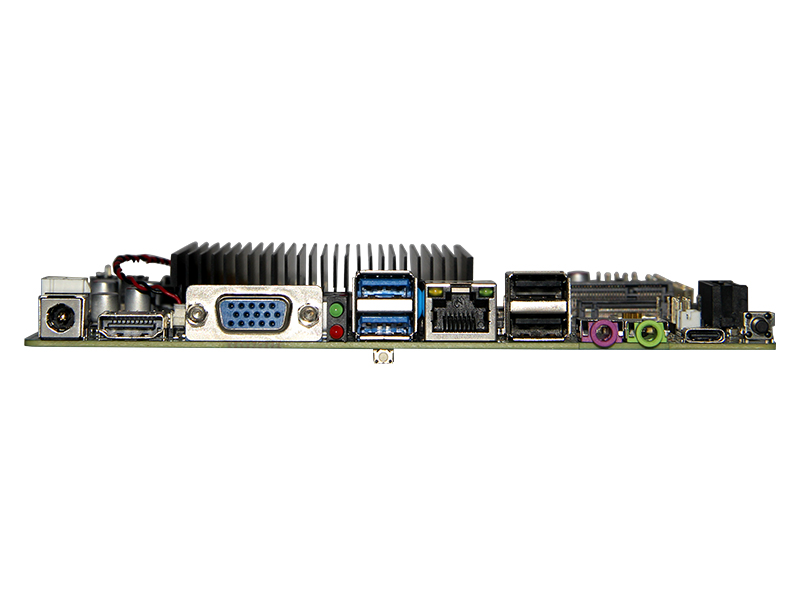

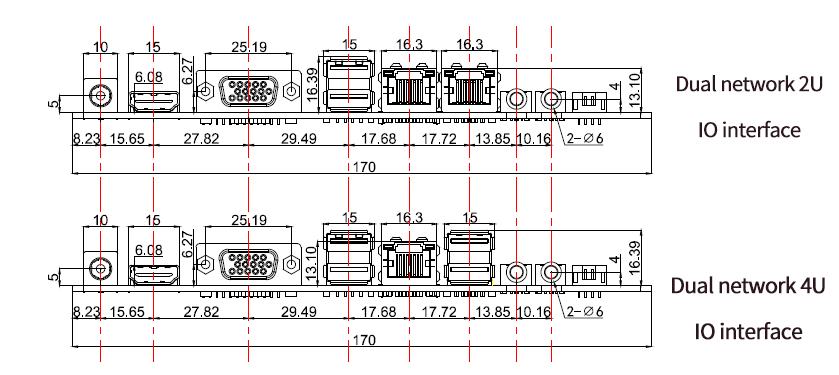

I/O

DC JACK

VGA

HDMI

USB3.0

RJ45

USB 3.0

DC JACK

Audio

Type-c

switch

1 x 12V DC JACK

1¡Á VGA/COM

1 ¡Á HDMI 1.4

2 ¡Á USB3.0

1 x RJ45 (PoE optional)

2 x USB 2.0 (RJ45 optional)

1 x DC Jack

1 x Line-Out & Microphone-In

1 x Type-C (USB 2.0 optional for dual Ethernet) - optional

1 x Power (optional)

onboard functions

COM¿Ú

USB2.0

LVDS

FP

LED

EDP

GPIO

LPT

SPK

       PCIE

1 x RS232 (optional 6-COM RS232 or 2 x RS485)

3 x USB headers (expandable to 2 x USB 2.0), supports up to 6 USB 2.0 ports

2 x LVDS (optional)

1*FP

1*SATA LED

1 EDP (optional 2 EDPs)

1 4-input, 4-output GPIO (optional)

1 JLPT (optional)

1 SPK 3W amplifier

1 front panel

1 SATA (optional 2 SATA)

1*PCIEX1

Power supply

Input Rated power consumption

DC JACK 12V

60W

Watchdog timer

Output

Interval

Interrupt, system restart

255 level timer intervals

Physical parameters

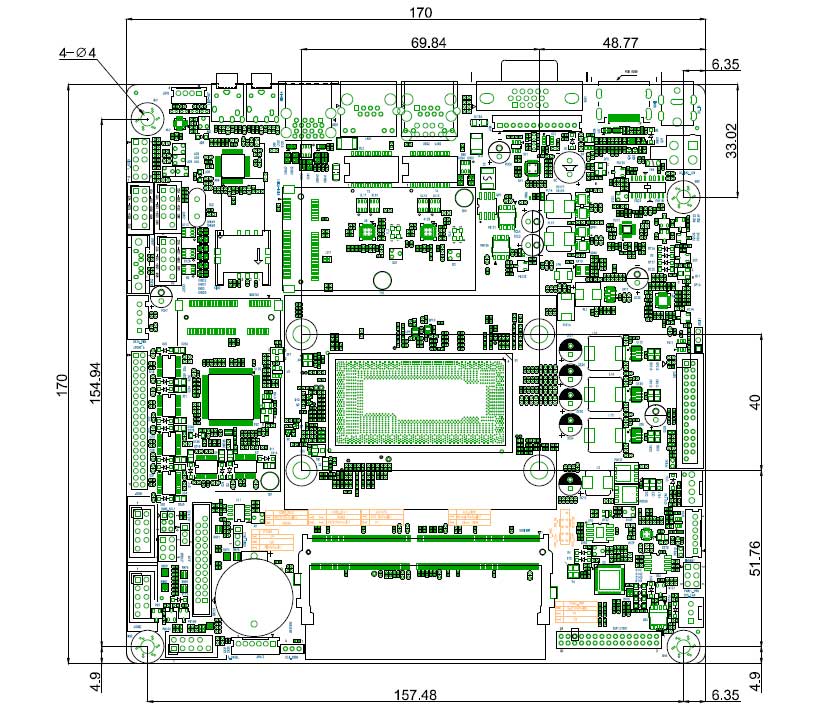

dimension

170mm (L) x 170mm (W)

Environment

temperature humidity

Operating Temperature: 0¡ãC to 50¡ãC Storage Temperature: -20¡ãC to 70¡ãC

5% to 90% non-condensing

operating system

Version

Windows 10/Windows 11/ WIN7 /Linux

AOS-MMJ19A-L1

N2840/J1800/J1900/J2900 (µ¥Íøµ¥COM)

AOS-MMJ19A-L2

N2840/J1800/J1900/J2900 (µ¥Íø2COM)

AOS-MMJ19A-L3

N2840/J1800/J1900/J2900 (Ë«Íø6COM)
