AOS-MMWU26M
Product introduction：
Product Description
Mini ITX industrial motherboard (170×170mm)
Intel Core 8th/10th Generation Comet Lake i3/i5/i7 processor
2 Gigabit Ethernet ports (RTL8111H chip)
2 HDMI ports + 1 LVDS port, supporting synchronous or asynchronous display
Supports 2 DDR4 RAM (up to 32GB)
Supports 4 USB 3.0, 4 USB 2.0,
Up to 6 COM ports (COM1-2 supports RS232/485)
Supports wake-on-LAN, power-on, watchdog timer, etc.
Compliant with CE, FCC, and ROHS regulations
Specifications and parameters
processor | CPU | Intel I7-8565U，Intel Core 8/10 代 i3/i5/i7 processor I3-8145U/ I5-8265U / I7-8565U，I3-10110U/ I5-10210U / I7-10510U optional |
chipset | Intel® SOC | |
BIOS | AMI 32Mbit，Support booting from a diskless system、Wake-on-LAN、Power on and start up、features such as watch dogs | |
memory | capacity | 4GB 2×DDR4 2133/2400 MHz memory , Max.32GB |
store | SATA capacity M.2 capacity | 1×SATA 3.0 1×*M.2(NVME/NGFF) |
display | Chipset output | CPU Integrated graphics HD Graphics 1 ×LVDS 2×HDMI （Maximum supported resolution：3840x2160 60HZ） Supports synchronous or asynchronous display |
internet | chip Wake-on-LAN | 2 × 10/100/1000M（RJ45 LAN） Supports network wake-up, PXE functionality |

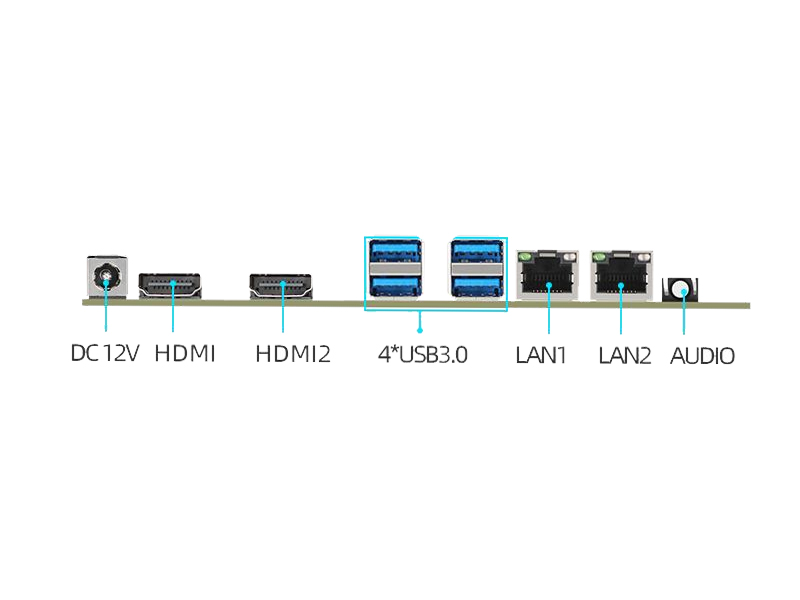

I/O | AUDIO HDMI USB 3.0 RJ45 DC | 1× AUDIO 2 × HDMI（I（HDMI2 can be changed VGA）） 4 × USB3.0 2 × RJ45 ( RTL8111 H Gigabit network card ) 1×DC 12V |
Onboard functions | COM port USB2.0 LVDS VGA M.2 SATA M2E M2B GPIO FP CPUFAN TPM SPKCON SYSFAN expansion slot | 6 x COM ports (COM1-2 support RS232/485/422, COM3-6 support RS232) Supports up to 4 x USB 2.0 1×LVDS 1×VGA 1×M.2(NVME/NGFF) 1×SATA 1×M2E(WIFI/Bluetooth） 1×M2B（4G/5G） 1×GPIO 1×FP 1×CPUFAN 1×TPM 1×SPKCON 1×SYSFAN 1 full-length Mini-PCIe slot (supports 4G module/WiFi/Bluetooth), 1 EIO expansion port |
Power supply | Input Power Rating | DC JACK 12V，Phoenix terminal 2pin supply power 60W |
Watchdog timer | Output Interval | interruption, system restart
255-level time interval |
Physical parameters | Dimensions | 170mm (L) x 170mm (W) |
Environment | Temperature Humidity | Operating temperature: 0°C to 50°C, Storage temperature: -20°C to 70°C, Humidity: 5% to 90%, No condensation |
Operating system | Version | Windows 10/Windows 11/ Linux |
Order information
sales model | explain |
AOS-MMWUI26M | CPU：I3-8145U / I3-10110U |
AOS-MMWUF26M | CPU：I5-8265U / I5-10210U |
AOS-MMWUJ26M | CPU：I7-8565U / I7-10510U |

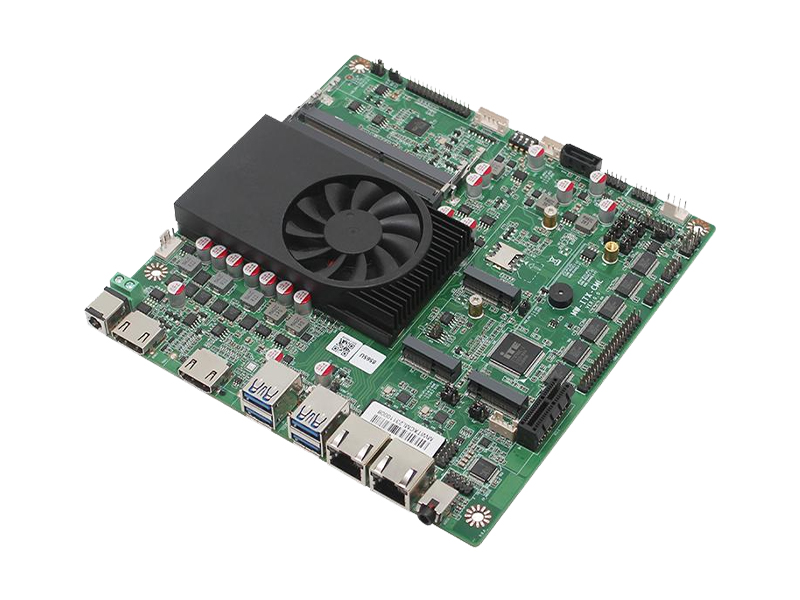

display diagram
application areas
Suitable for education, restaurants, hotels, shopping malls, company meetings,government transparency, and other fields.
