AOS-MMWSGOA
Product introduction：
Product introduction
MINI-ITX Industrial Motherboard（172*190mm）
Support Comet Lake-U series 10th I3/I5/I7CPU
Support asynchronous two-Three Display（HDMI+DP /LVDS）
Support MXM independent graphics card（730M/1050TI/RX550/1060/3050）
Support Gigabit Ethernet port (optional dual Ethernet port)
Support dual-channel DDR4 memory, maximum support 64G
Support 1*MSATA/M.22280 NGFF/MVME interface
2*USB2.0、4*USB3.0、1*type-c、1*RS232
Support network wake-up, power-on, watchdog, etc.
Products comply withCE FCC ROHS specification
Specifications
Processor
Memory | CPU | Intel Cometlake-u I5 10210U 1.6GHZ Quad Core (I3 10110U/I5 10210U 4 Core/I7 10510U 4 Core) |
Chipset | Intel® SOC | |
BIOS | AMI 32Mbit，Support diskless boot, network wake-up, power-on boot, watchdog and other functions | |
Storage | Capacity | 4GB DDR4 2133/2400 MHz memory , Max.64GB |
Display | MSATA M.2 interface | 1*MSATA 1*M.2 Key M NVME/SATA 2280 |
Processor | Chipset Output
| CPU integrated graphics card HD Graphics HDMI+DP/LVDS single display, dual display (synchronous/asynchronous display) 1 × HDMI (maximum supported resolution: 3840x2160) 1 × DP (maximum supported resolution: 3840x2160) |
Discrete graphics card output
HDMI/D two choices Discrete graphics card optional models and display output channels | HDMI/DP+LVDS single display, dual display (synchronous/asynchronous display) 1 × LVDS (maximum supported resolution: 1920x1080) 1 × HDMI (maximum supported resolution: 3840x2160) 1 × DP (maximum supported resolution: 3840x2160) GTX730 2GB( HDMI/HDMI) GTX1030 2GB(HDMI/DP) GTX1050 2GB(HDMI/HDMI) AMD RX550 4GB(HDMI/HDMI) GTX1050TI 4GB(HDMI/HDMI/DP) GTX1060 6GB(HDMI/HDMI) GTX1070 8GB(HDMI/HDMI) GTX3080 16GB(HDMI/HDMI) | |
Network | Chip WIFI/3G/4G | 1 × 10/100/1000M（RJ45 LAN）Optional dual network ports 1 x WIFI Module support 802.11b/g/n （M.2 PCIE half card） |

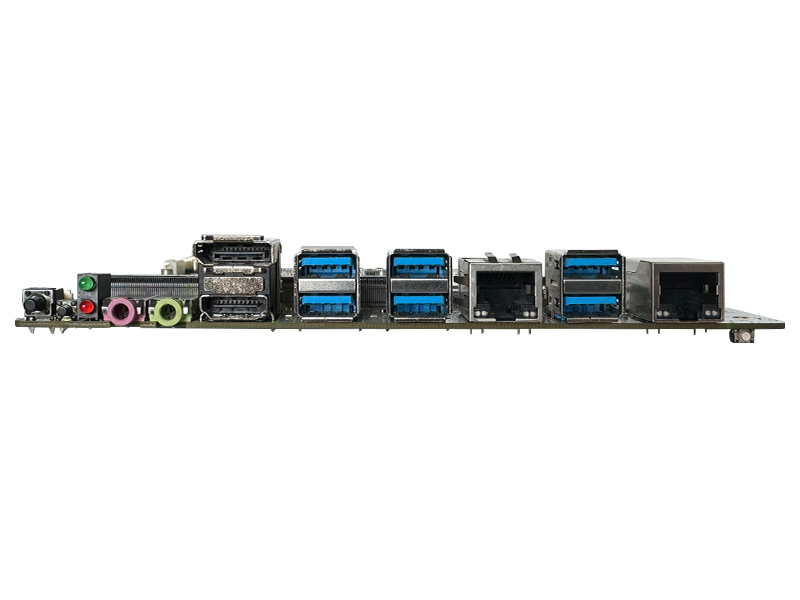

I/O | POWER Rest Audio USB3.0 DP HDMI USB 2.0 USB 3.0 GOST RJ45 Type-c
DC JACK | 1x switch 1x reboot 1 × LINE-OUT & MIC-IN 4x USB3.0 1× DP 1 × HDMI 1.4 2 × USB2.0 4 × USB3.0 1X System Restore 1 × RJ45 Network Port 1 × type-c (USB2.0)(Optional dual network ports )
1 × DC JACK interface (rear I/O optional) |
Onboard functions | COM口 USB2.0 LVDS LED SPK PANEL PCIEX8 | 1*RS232（Optional multi-COM (default single COM） 1*USB pin (can be expanded to 2*USB2.0) supports up to 5 groups of USB2.01*LVDS 1*SATA LED 1*SPK（3-5W） 1*Front panel 1*PCIEX8(MXM) |
Power supply | Input | DC JACK 12V-19V 60W |
Watchdog | Rated power consumption | Interrupt, system restart 255 level timer interval |
Physical parameters | Output | 172mm (L) x 190mm (W) |
Environment | Interval | Operating temperature: 0°C ~50°C Storage temperature: -20~70°C 5%~90% non-condensing |
Operating system | Dimensions | Windows 10/Windows 11/ Linux |
Ordering Information
Sales Model | illustrate |
AOS-MMWSGOA-L1 | I3 10110U/I5 10210U/I7 10510U (single network single COM) |
AOS-MMWSGOA-L2 | I3 10110U/I5 10210U/I7 10510U (双网单COM) |
AOS-MMWSGOA-L3 | I3 10110U/I5 10210U/I7 10510U (双网单COM)+MXM显卡 |
Dimensions
Application Areas
Applicable to education, restaurants, hotels, shopping malls, company meetings, government affairs disclosure and other fields.
