Product introduction：
Product introduction
MINI-ITX industrial motherboard (172*190mm)
Support Comet Lake-U series 8-10th I3/I5/I7CPU
Support asynchronous dual-triple display (HDMI+DP/LVDS)
Support 4G communication module, 1*Minipice+1*M.2
Support Gigabit network port (optional dual network port)
Support single-channel DDR4 memory, maximum support 32G
Support 1*MSATA/M.22280 NGFF/MVME interface
2*USB2.0, 4*USB3.0, 1*type-c, 1*RS232
Support network wake-up, power-on, watchdog, etc.
The product complies with CE FCC ROHS specifications
Specifications
Processor
Memory | CPU | Intel Cometlake-u I5 10210U 1.6GHZ Quad Core (I3 8145U 2.1G Dual Core/I3 10110U 2.1G Dual Core/I5 8265U 1.6G Quad Core/I5 10210U 1.6G Quad Core/I7 8565U 1.8G Quad Core/I7 10510U 1.8G Quad Core) |
Chipset | Intel® SOC | |
BIOS | AMI 32Mbit，Support diskless boot, network wake-up, power-on boot, watchdog and other functions | |
Storage | Capacity | 4GB DDR4 2133/2400 MHz memory , Max.64GB |
Display | MSATA | 1*MSATA 1*M.2 Key M NVME/SATA 2280 |
Processor | M.2 interface | CPU integrated graphics card HD Graphics HDMI+DP+LVDS single display, dual display (synchronous/asynchronous display) 1 × HDMI (maximum supported resolution: 3840x2160) 1 × DP (maximum supported resolution: 3840x2160) |
network | Chip WIFI | 1 × 10/100/1000M（RJ45 LAN）Optional dual network ports 1 x WIFI Module support 802.11b/g/n （M.2 PCIE half card） |

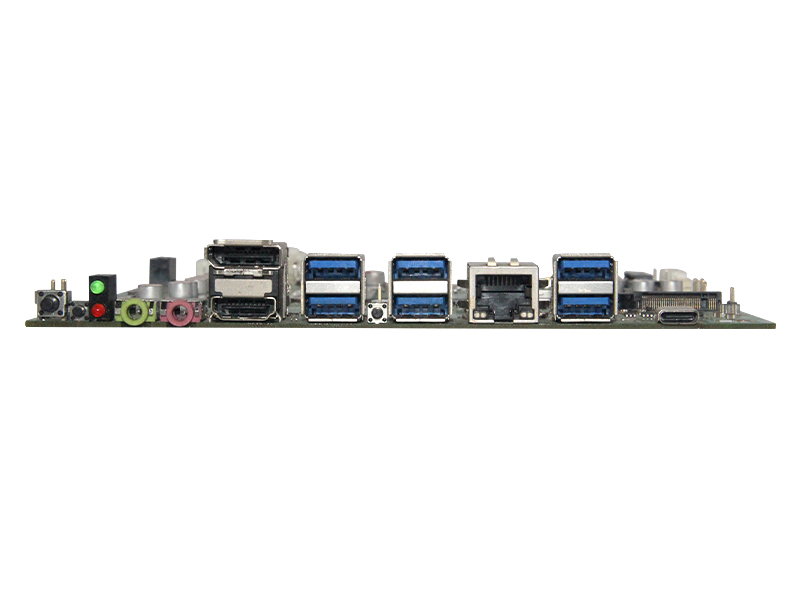

I/O | POWER Rest Audio USB3.0 DP HDMI USB 2.0 USB 3.0 GOST RJ45 Type-c
DC JACK | 1x switch 1x reboot 1 × LINE-OUT & MIC-IN 4x USB3.0 1× DP 1 × HDMI 1.4 2 × USB2.0 4 × USB3.0 1X system restore 1 × RJ45 network port 1 × type-c (USB2.0) (optional network port) 1 × DC JACK interface (rear I/O optional) |
Network | COM口 USB2.0 LVDS LED SPK PANEL PCIE | 1*RS232 (optional multi-COM (default single COM) 1*USB pin (expandable 2*USB2.0) supports up to 5 groups of USB2.01*LVDS 1*SATA LED 1*SPK（3-5W） 1*Front panel 1*MINI PCIE(3G/4Gcommunication) |
I/O | Input | DC JACK 12V-19V 60W |
Onboard functions | Rated power consumption | Interrupt, system restart |
Power supply | Output | 255-level timing interval |
Watchdog | Interval | 172mm (L) x 190mm (W) |
Physical parameters | Dimensions | Windows 10/Windows 11/ Linux |
Ordering Information
Sales Model | illustrate |
AOS-MMWSCOA-L1 | I3 8145U/10110U/I5 8265U/10210U/I78565U/ 10510U(Single network singleCOM) |
AOS-MMWSCOA-L2 | I3 8145U/10110U/I5 8265U/10210U/I7 8565U/10510U (Dual network single COM) |
Dimensional drawing
Application Areas
Applicable to education, restaurants, hotels, shopping malls, company meetings, government affairs disclosure and other fields.
