AOS-MMH610OA
Product introduction：
Product introduction
MINI-ITX industrial motherboard (175*190mm)
AdlerLake-S H610 12-14 generation I3 12100/I5/I7 14700 CPU
Support asynchronous triple-quad display (HDMI+DP +VGA+LVDS)
Support independent display (GT1030/RX550/1050TI/1060/3080 2-16G)
Support Gigabit network port (optional dual network port), 1*HDMI IN (optional)
Support dual-channel DDR5 memory, maximum support 96G
Support 1*SATA3.0/MSATA/M.22280 NGFF/MVME interface
2*USB2.0, 4*USB3.0, 1*type-c, 1*PCIEX16, 6*RS232
Support network wake-up, power-on, watchdog, etc.
Products comply with CE FCC ROHS specifications
Specifications
Processor
Memory | CPU | Support Intel Core 12-13-14th CPU |
Chipset | i3-12100 (3.3GHz/4 CORE/8 threads/12MB/HD730/14nm/60W/LGA1700) | |
BIOS | Intel® H610/B660/Q670 | |
Storage | Capacity | AMI 32Mbit, supports diskless boot, network wake-up, power-on, watchdog and other functions |
Display | SATA interface | 1*SATA 3.0 1*MSATA 1*M.2 Key M NVME 2280 1*M.2 Key M SATA 2280 |
Display | MSATA interface | CPU integrated graphics card HD Graphics VGA+HDMI+DP+LVDS single display, dual display, triple, quad display (synchronous/asynchronous display) 1 × VGA (maximum supported resolution: 1920×1080) 1 × HDMI (maximum supported resolution: 3840x2160 60HZ) 1 × DP (maximum supported resolution: 7680x4320 60HZ)
|
Processor | M.2 interface | HDMI+HDMI+HDMI+DP single display, dual display, triple display, quad display (synchronous/asynchronous display) 1 × HDMI (maximum supported resolution: 3840x2160) 1 × HDMI (maximum supported resolution: 3840x2160) 1 × DP (maximum supported resolution: 3840x2160/7860*4320) GTX1030 2GB(HDMI/DP) GTX1050 2GB(HDMI/HDMI/DP) RX550 4GB(HDMI/HDMI/HDMI) GTX1050TI 4GB(HDMI/HDMI/DP) GTX1650 4GB(HDMI/HDMI/DP) GTX1060 6GB(HDMI/HDMI/DP) GTX1070 8GB(HDMI/DP/DP) GTX1080 8GB(HDMI/DP/DP) RTX3050 6GB(HDMI/HDMI/DP) RTX3050 8GB(HDMI/HDMI/DP) RTX3060 6-12GB(HDMI/HDMI/DP) RTX3070 8GB(HDMI/HDMI/DP) RTX3080 16GB(HDMI/HDMI/DP) RTX4060 8GB(HDMI/HDMI/DP)
A1000 4G(DP/DP) A2000 8G(DP/DP) T1000 4G(DP/DP) P1000 4G(DP/DP) P2000 4G(DP/DP) P3000 6G(DP/DP) |
Network Chip | WIFI/3G/4G 1 × 10/100/1000M (RJ45 LAN) | 1 × 10/100/1000M（RJ45 LAN）Optional dual network port 1 x WIFI Module support 802.11b/g/n （M.2 PCIE half card） |

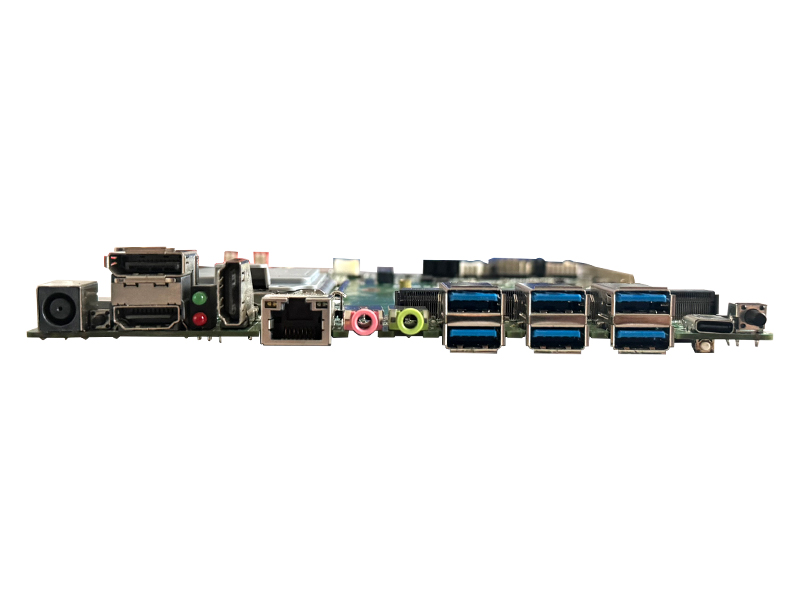

I/O | USB 3.0 USB2.0 Type-c COM Power button Reset OPS interface LED light DC JACK One-click restore Audio | 3× USB3.0 (B660/H670 chip can support 6 USB3.0) 3× USB2.0 1x Type-c 1x COM optional1 × power button 1 × Reset button 1 × OPS interface (80pin) 1 x power indicator light & 1x hard disk indicator light 1 × DC JACK 1 x one-key restore 1 × LINE-OUT & MIC-IN, integrated 6-channel sound effect ALC897 sound card chip |
Onboard functions | COM口 USB2.0 PCIEX4 MINI PCIE M.2 LVDS GPIO COM-E VGA SPK PANEL SATA
| 6*RS232 (2 of which are optional RS422/485) optional (default single COM) 1*USB pin (expandable 2*USB2.0) supports up to 4 USB2.0 1*PCIEX16 (MXM) 1*MINIPCIE (3G/4G) 1*M.2 WIFI/5G 1*LVDS 1*8 in 8 out GPIO 1*COME (optional) 1*JVGA(optional) 1*SPK（3-5W） 1*Front panel 1*SATA
|
Power supply | Input | DC JACK 12V-19V 60W |
Watchdog | Rated power consumption | Interrupt, system restart |
Physical parameters | Output | 255-level timing interval |
Environment | Interval | 175mm (L) x 190mm (W) |
Operating system | Dimensions | Windows 10/Windows 11/ Linux |
Ordering Information
Sales Model | illustrate |
AOS-MMH610OA-L1 | 12-13-14th i3/i5/i7 CPU (single network single COM) |
AOS-MMH610OA-L2 | 12-13-14th i3/i5/i7 CPU (dual network 6COM) |
AOS- MMH610OA-L3 | 12-13-14th i3/i5/i7 CPU (dual network 6COM+MXM graphics card) |
Dimensions
Application Areas
Applicable to education, restaurants, hotels, shopping malls, company meetings, government affairs disclosure and other fields.
