AOS-MMJAN502H
Product introduction：
Product introduction

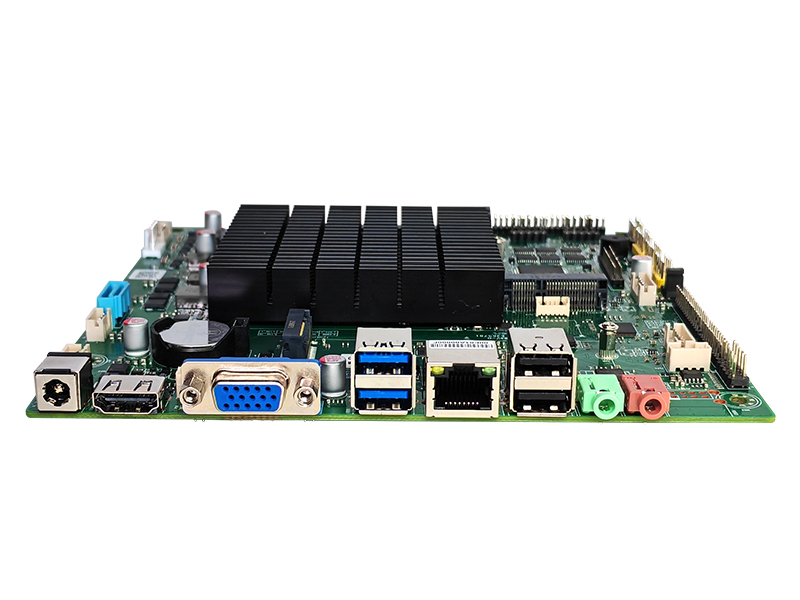

MINI-ITX industrial motherboard
Support Jasper lake-N5095 CPU
Support asynchronous triple display (VGG+HDMI +EDP+LVDS/edp)
Support DDR4 memory up to 32G
Support 1*LPT, 1*PS/2, 1*GPIO
Support 1*SATA3.0, 1*M.2 interface
Support 6*RS232, 2*USB3.0/8*USB2.0
Support network wake-up, power-on, watchdog, etc.
The product complies with CE FCC ROHS specifications
Specifications
Processor | CPU | Intel Jasper lake-N platform N5095 2.0-2.7G 4 core 4 threads(15W) |
Chipset | Intel® SOC | |
BIOS | AMI 32Mbit，support diskless boot, network wake-up, power-on boot, watchdog and other functions | |
Memory | capacity | 4GB DDR4 2600 MHz memory , Max.32GB |
Storage | SATA connector MINI PCIE | 1*SATA 3.0 1*M.2 Key M NVME/SATA 2280 |
Display | GPU Output
| CPU Integrated Graphics HD Graphics VGA/HDMI+LVDS/edp+EDP Single display, dual display, triple display (synchronous/asynchronous display) 1 × HDMI+1 x VGA
|
Network | Chip WIFI/4G/5G
| 1 × 10/100/1000M（RJ45 LAN，Optional dual network ports） 1 x WIFI/3G/4G （M.2 ）
|
I/O | DC JACK HDMI VGA USB 3.0 RJ45 USB 2.0 Audio | 1 × DC JACK interface 1× HDMI 1× VGA/COM optional 2x USB3.0 1× 1000M RJ45（Optional dual network ports） 2x USB2.0 1 × LINE-OUT & MIC-IN |
Onboard Features | COM port USB2.0 LVDS FP LED EDP GPIO LPT SPK
PS/2
| 1*RS232(Optional 6COM COM2/3 supports PIN9 5/12V power supply) 1*USB pin (expandable 2*USB2.0) supports up to 6 groups of USB2.01*LVDS 1*FP 1*SATA LED 1*EDP(optional 2 groups of EDP) 1*4 in 4 out GPIO (optional) 1*JLPT(optional) 1*SPK 3W amplifier 1*Front panel 1*SATA 1*PS/2
|
power supply | Input Rated power consumption | DC JACK 12V 30W |
Watchdog | Output Interval | Interrupt, system restart 255 level timer interval |
Physical parameters | size | 170mm (L) x 170mm (W) |
environment | Temperature Humidity | Operating temperature: 0°C ~50°C Storage temperature: -20~70°C 5%~90% non-condensing |
operating system | Version | Windows 10/Windows 11/ Linux |
Ordering Information
Sales Model | illustrate |
AOS-MMAN102H-L1 | N100/N150/N250/N300/N95/N97/I3 N305 (Single network singleCOM) |
AOS-MMAN102H-L2 | N100/N150/N250/N300/N95/N97/I3 N305 (Dual Network 6COM) |
Dimensions
Application Areas
Applicable to education, restaurants, hotels, shopping malls, company meetings, government affairs disclosure and other fields。
