AOS-MMAN102H
Product introduction：
Product introduction
MINI-ITX industrial motherboard
Support Alder lake-N series CPU
Support N100/N95/N97/N300/N305 CPU
Support dual Gigabit network ports, asynchronous triple display (HDMI + VGA + LVDS/edp)
Support DDR4 memory up to 32G
Support 1*SATA3.0, 1*M.2 interface
Support 6*RS232, 2*USB3.0/10*USB2.0
Support network wake-up, power-on, watchdog, etc.
The product complies with CE FCC ROHS specifications
Specifications
processor | CPU | Intel Alder lake-N/Twin LakePlatform N100 0.8-3.4G 4 cores 4 threads (6W) N100/N150/N250/N300/N95/N97/I3 N305 processor |
Chipset | Intel® SOC | |
BIOS | AMI 32Mbit，Support diskless boot, network wake-up, power-on boot, watchdog and other functions | |
Memory | capacity | 4GB DDR4 2600 MHz memory , Max.32GB |
storage | SATA Interface M.2 interface | 1*SATA 3.0 1*M.2 Key M NVME/SATA 2280 |
show | Chipset Output
| CPU integrated graphics card HD Graphics VGA+HDMI+LVDS/edp single display, dual display, triple display (synchronous/asynchronous display) 1 × HDMI/ 1 × VGA
|
network | Chip WIFI/4G/5G
| 1 × 10/100/1000M（RJ45 LAN）Optional dual network ports 1 x WIFI/3G/4G （MINIPCIE ）
|

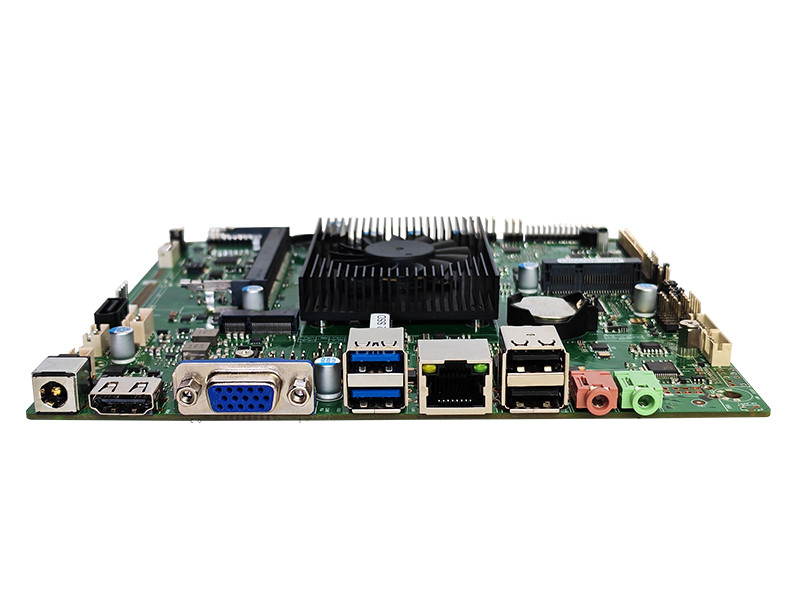

I/O | DC JACK HDMI VGA USB3.0 RJ45 USB2.0 Audio | 1 × DC JACKInterface 1 × HDMI 1 × VGA/COM optional 2x USB3.0 1 × 1000M RJ45 (optional dual network port) 2x USB2.0 1 × LINE-OUT & MIC-IN
|
Onboard Features | COM port USB2.0 LVDS FP LED EDP GPIO LPT SPK
PS/2
| 1*RS232 (optional 6COM RS232/or 2*RS485) 1*USB pin (expandable 2*USB2.0) supports up to 6 groups of USB2.0 1*LVDS 1*FP 1*SATA LED 1*EDP (optional 2 groups of EDP) 1*4 in 4 out GPIO (optional) 1*JLPT (optional) 1*SPK 3W amplifier 1*Front panel 1*SATA 1*PS/2
|
power supply | Input Rated power consumption | DC JACK 12V 30W |
Watchdog | Output Interval | Interrupt, system restart 255 level timer interval |
Physical parameters | size | 170mm (L) x 170mm (W) |
environment | Temperature Humidity | Operating temperature: 0°C ~50°C Storage temperature: -20~70°C 5%~90% non-condensing |
operating system | Version | Windows 10/Windows 11/ Linux |
Ordering Information
Sales Model | illustrate |
AOS-MMAN102H-L1 | N100/N150/N250/N300/N95/N97/I3 N305 (Single network singleCOM) |
AOS-MMAN102H-L2 | N100/N150/N250/N300/N95/N97/I3 N305 (Dual Network 6COM) |

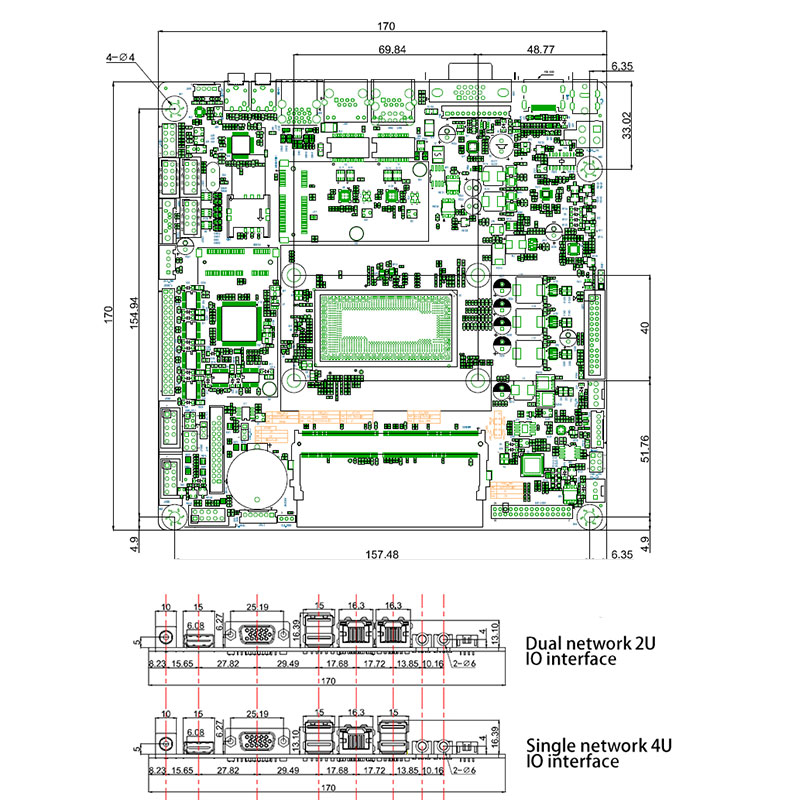

Dimensions
Application Areas
Applicable to education, restaurants, hotels, shopping malls, company meetings, government affairs disclosure and other fields。
