chipset

Intel® SOC

BIOS

AMI 32Mbit£¬Supports disk-free startup, network wake up, power-on, and watchdog functions

Internal memory

capacity

4GB  DDR4 2133/2400 MHz memory ,  Max.64GB

store

SATA interface

M.2 Ports

1*SATA 3.0

1*M.2  Key M NVME/SATA 2280

reveal

chipset

Exportation

CPU integrated Graphics card HD Graphics

VGA+HDMI+DP+LVDS/edp Single display, dual display, three, four display (same/asynchronous display)

1 ¡Á VGA (Max support resolution: 1920¡Á1080)

1 ¡ÁHDMI (Max support resolution: 3840x2160 60HZ)

1 ¡ÁDP (Max support resolution: 7680x4320 60HZ)

network

Chip

WIFI/3G/4G

1 ¡Á  10/100/1000M£¨RJ45 LAN£©Optional dual network ports

1 x WIFI Module support 802.11b/g/n £¨M.2 PCIE half card£©

I/O

POWER

Rest

񙮵

DP

HDMI

USB 2.0

USB 3.0

GOST

RJ45

Type-c

HDMI IN

DC JACK

HDMI

1x switch

1x restart

1 ¡Á LINE-OUT &  MIC-IN

4x USB3.01¡Á DP

1 x HDMI 2.0

2 x USB2.0

4 x USB3.0

1X System restore

1 x RJ45 network port

1 x type-c (USB2.0)

1 ¡Á HDMI IN

1 x DC JACK interface (Post I/O optional)

1 x HDMI2.0 interface (post-I /O optional)

Onboard function

COMport

USB2.0

PCIEX4

MINI PCIE

LVDS

GPIO

LED

EDP

SPK

PANEL

SATA

6*RS232 (2 groups of RS422/485 optional) Optional (default single COM)

1*USB pin (expandable 2*USB2.0) supports up to 5 groups of USB2.0

1*PCIEX4

1*MINIPCIE(3G/4G)

1*LVDS

1 x 8 In and 8 out of GPIO

1*SATA LED

1*EDP(optional)

1*SPK (3-5W)

1*Front panel

1*SATA

Power source

input

Rated power consumption

DC JACK 12V-19V

60W

Guard dog

exportation

interval

The system restarts. Procedure

255 level timing interval

Physical parameter

dimension

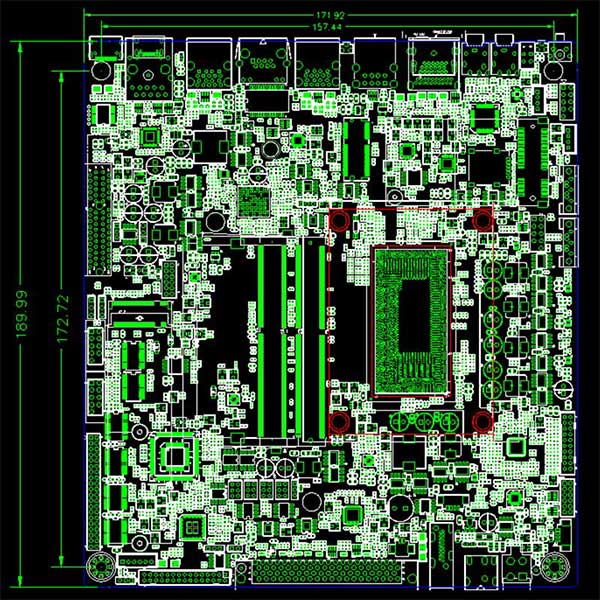

172mm (L) x 190mm (W)

environment

temperature

humidness

Operating temperature: 0¡ãC ~50¡ãC Storage temperature: -20 ¡ãC ~70¡ãC

5% to 90% no condensation

Operating system

edition

Windows 10/Windows 11/ Linux

AOS-MMTU11IOA

I3 1115G4  3.0G   2/4

AOS-MMTU11FOA

I5 1135G7  2.4G   4/8

AOS-MMTU11JOA

I3 1165G7  3.0G   4/8
