processor

Integrated Intel ®Celeron J6412 2.0GHz quad-core processor, TDP 10W is compatible with Intel ® Elkhart Lake full CPU full range

internal storage

1 * SODIMM slot, support for 3,200 MHz DDR4 of memory, up to 16GB support

show

Integrated Intel ®UHD Graphics, the 10th generation core graphics card

1 * VGA interface, 1 * HDMI (or EDP) interface, 1 * LVDS or eDP interface (the default is LVDS)

Support for VGA, HDMI or EDP, LVDS, or eDP synchronous / asynchronous triple display

network

2 * Realtek RTL8111H Gigabit network card, support network wake up / PXE

memory

1 * 7pin SATA3.0 hard disk interface, the transmission rate of 6 Gbps

1 * 1 M.2 Key-M interface, supporting 2280 PCIE / SATA SSD

audio frequency

Oboard ALC897 7.1 channel high fidelity audio controller, MIC / Line-out, power amplifier (2 O 5W dual channel)

Extended slot

1 * Mini-PCIe slot, supporting the WIFI / 4G module

1 * M.2 Key-E (WIFI / Bluetooth support, WIFI only by default)

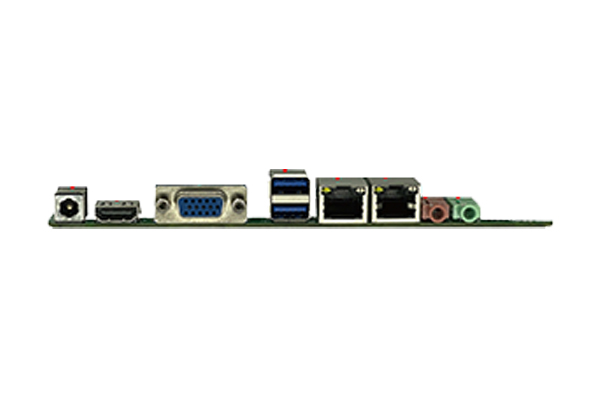

Backplane I / O interface

1 * HDMI display interface

1 * The VGA display interface

2 * The USB3.0 interface

2 * RJ-45 Gigabit network interface (including LAN2 and USB2.0)

1 * Line out interface (green), 1 * MIC interface (red)

1 * 12V DC power input interface

Built-in I / O interface

1 * JHDMI interface 2 * 8 Pin (optional)

1 * JVGA interface 1 * 12 Pin (same signal as DB15)

1 * LVDS interface 2 * 15pin, support dual channel 24bit (and eDP two, default)

1 * screen backlight power supply interface 1 * 6pin

1 * eDP interface 2 * 15pin (and LVDS, optional)

1 * eDP interface 2 * 15pin (and HDMI two, optional)

7 * USB 2.0 interface 2 * 5 Pin (when selecting a single network, support 5 built-in USB2.0, dual network support 7 USB2.0)

1 * front-facing audio interface 2 * 5pin

1 * Power amplifier interface 1 * 4pin

6 * COM interface (COM1~2 supports RS485, COM1 / 29P charged, 4485, or 2 R485 and 1 RS422)

1 * The LPT interface

The 1 * 4pin ATX power supply interface

1 * Hard disk power supply interface

1 * Front panel switch button and indicator light interface 2 * 5 Pin

Fan interface

No fan cooling design, reserve 1 * 4pin CPU fan interface, reserve 1 * 4pin system fan interface

GPIO

Support for a 4-way input and output GPIO

BIOS

128Mb Flash ROM

watchdog

Support hardware reset (256,0 to 255 seconds)

operating system

Windows 10/Windows 11/Linux

Power type

Use DC 12V power supply

working temperature

60℃～-20℃

storage temperature

-20℃～70℃

Working humidity

5% -95% relative humidity, and no condensation

size

170mm x 170mm

1

AOS-ITX60D-L12 VER1.2

J6412

4

2.0G

DDR4

1

1

1

/

1

9

/

1

2 / 1

12V

2

AOS-ITX60D-L16 VER1.2

J6412

4

2.0G

DDR4

1

1

1

/

1

9

/

1

6 / 2

12V

3

AOS-ITX60D-L26 VER1.2

J6412

4

2.0G

DDR4

1

1

1

/

2

9

/

1

6 / 2

12V
