AOS-ITXW108U
Product introduction：
Detailed specifications of motherboard
Project | Description | |
Processor
| Intel®Core i5-8265U | Intel®Core i5-10210U |
Quad-core 1.6GHz (Up to 3.9GHz) | Quad-core 1.6GHz (Up to 4.2GHz) | |
Intel® Coffee Lake-U or Comet Lake-U Pentium/Celeron/I3/I5/I7 series low power processors. | ||
Memory | 2* SO-DIMM memory slots supporting dual-channel 2133MHz DDR4 memory up to 16GB. | |
Display
| Integrated Intel® UHD Graphics (depending on the specific CPU model support) | |
1* VGA or DP connector (supports 4K 60Hz), 1* HDMI connector, 1* LVDS or eDP connector (choose one, default is LVDS) | ||
Support VGA or DP, HDMI, LVDS or eDP synchronous / asynchronous triple display | ||
Network | 2* Gigabit LAN card (1 network optional), support Wake-on-LAN/PXE | |
Storage
| 1* SATA3.0 interface | |
1* M.2 2280/2242 slot | ||
Audio | Onboard ALC662/ALC888 6-channel hi-fi audio controller, support MIC/Line-out, amplifier (support 2-ohm 5W dual-channel) | |
Expansion Slots
| 1* Mini-PCIe slot (half card and long card support), support WIFI/4G module | |
1* M.2 interface, support WIFI module | ||
Backplane I/O Ports
| 1* HDMI display interface | |
1* VGA display interface (and 4K 60Hz DP interface, the default is VGA interface) | ||
2* USB2.0 interface (optional, and built-in USB2.0 pin one of the two) | ||
2* USB3.0 interface | ||
2* RJ-45 Gigabit network interface (including LAN2 and USB2.0 interface is optional) | ||
1* Line out connector (green), 1* MIC connector (red) | ||
1* One-Key Restore Switch (optional) | ||
1* 12V DC power input connector | ||
Built-in I/O Ports
| 1* JHDMI interface 2*8Pin (with HDMI standard interface with the same signal, optional) | |
1* JVGA connector 1*12Pin (same signal as DB15) | ||
1* LVDS connector 2*15pin, support dual-channel 24bit (and eDP, default) | ||
1* Screen backlight power supply connector 1*6pin | ||
1* eDP connector 2*15pin (either one or LVDS, optional) | ||
6* USB 2.0 connector 2*5pin (supports 4 USB2.0 when single network is supported, and F_USB1 and external standard USB2.0 are either one or the other) | ||
1* Front Audio Interface 2*5pin | ||
1* Amplifier connector 1*4pin | ||
6* COM interface (COM2/COM3/COM4/COM5 can support RS485, optional 2 serial ports) | ||
1* LPT interface | ||
1* Hard disk power supply interface 1*4Pin | ||
1* 4pin ATX power supply interface | ||
1* Front panel switch button and indicator interface 2*5Pin | ||
Fan Interface | 1*4pin CPU smart fan interface, 1*4pin system smart fan interface | |
GPIO | Support 4-way input/output GPIO | |
BIOS | 64Mb Flash ROM | |
Watchdog | Support hardware reset function (256 levels, 0~255 seconds) | |
Operating System | Windows 8/Windows 10/Windows 11/Linux | |
Power Supply Type | Adopt DC 12V power supply | |
Operating Temperature | 60℃～-10℃ | |
Storage Temperature | -20℃～70℃ | |
Working Humidity | 5%-95% relative humidity, non-condensing | |
Dimension | 170mm x 170mm | |
Order information：
No. | Model | CPU | Nuclear number | frequency | RAM | HDMI | VGA | LVDS | EDP | LAN | USB | PS2 | LPT | COM/485 | POWER |
1 | AOS-ITXW108U VER1.0 | I5-8265U | 4 | 1.6G | 2*DDR4 | 1 | 1 | 1 | / | 1 | 8 | 1 | 1 | 6 / 2 | 12V |
2 | I5-10210U | 4 | 1.6G | 2*DDR4 | 1 | 1 | 1 | / | 2 | 8 | 1 | 1 | 6 / 2 | 12V |
Product Introduction
ITX series industrial motherboard of Aiostar Micro, supporting Whiskey Lake-U or Comet Lake-U whole series CPU; it can be widely used in commercial display, communication control, medical instrument, industrial control, financial equipment, cloud terminal and other fields.

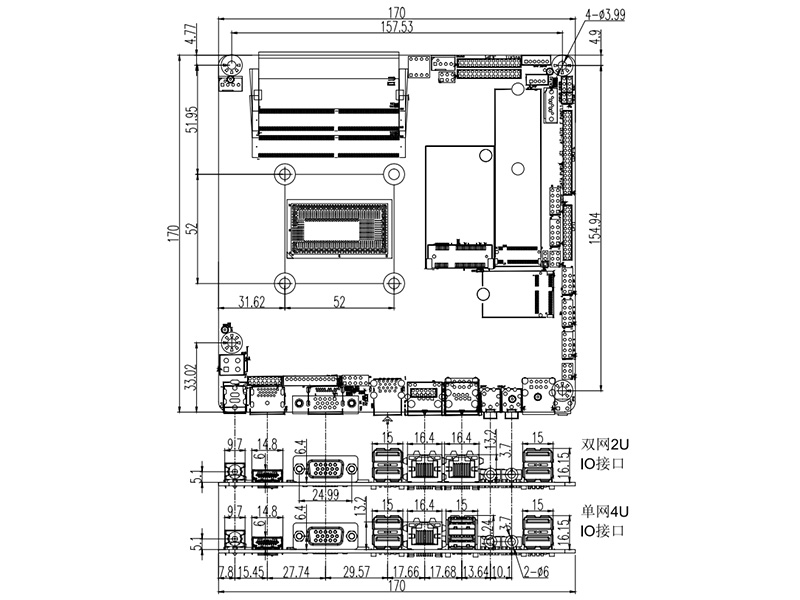

Dimension drawing
