Processor

Intel®Core i5-1135G7

Intel®Core i7-1165G7

Quad-core 2.4GHz

Quad-core 2.8GHz

Intel® Tiger Lake-U Pentium/Celeron/I3/I5/I7 series low power processor

Memory

2* SO-DIMM memory slots, support dual-channel 2133MHz DDR4 memory, maximum support 16GB

Display

Integrated Intel® UHD Graphics core graphics card, support DirectX12.1, OpenGL4.6, support 4K/60Hz.

1* VGA interface, 1* HDMI2.0b interface (support 4K, optional support 2 HDMI HD display)

1* LVDS or EDP interface, 1 eDP interface, support LVDS + EDP or dual EDP display

Support VGA, HDMI, LVDS, eDP synchronous/asynchronous quad display

Network

2* intel I226V 2.5G network card (1 network optional), support for Wake-on-LAN/PXE

Storage

1* SATA3.0 interface

1* M.2 2280/2242 slot

Audio

Onboard ALC897 7.1-channel hi-fi audio controller, support MIC/Line-out, amplifier (support 2-ohm 5W dual-channel)

Expansion Slots

1* Mini-PCIe slot (half card and long card support), support WIFI/4G module

1* M.2 interface, support WIFI module

Backplane I/O Ports

1* HDMI2.0b display interface (support 4K, optional support 2 HDMI)

1* VGA display interface (and 4K 60Hz DP interface, the default is VGA interface)

2* USB3.1 interface

2* RJ-45 Gigabit network interface (of which LAN2 and USB2.0 interface is one or the other)

1* Line out connector (green), 1* MIC connector (red)

1* One-Key Restore Switch (optional)

1* 12V DC power input connector

Built-in I/O Ports

1* JHDMI interface 2*8Pin (with HDMI standard interface with the same signal, optional)

1* JVGA connector 1*12Pin (same signal as DB15)

1* LVDS connector 2*15pin, support dual-channel 24bit (and eDP, default)

1* Screen backlight power supply connector 1*6pin

1* eDP connector 2*15pin (either one or LVDS, optional)

6* USB 2.0 connector 2*5pin (supports 4 USB2.0 when single network is supported, and F_USB1 and external standard USB2.0 are either one or the other)

1* Front Audio Interface 2*5pin

1* Amplifier connector 1*4pin

6* COM interface (COM2/COM3/COM4/COM5 can support RS485, optional 2 serial ports)

1* LPT interface

1* Hard disk power supply interface 1*4Pin

1* 4pin ATX power supply interface

1* Front panel switch button and indicator interface 2*5Pin

Fan Interface

1*4pin CPU smart fan interface, 1*4pin system smart fan interface

GPIO

Support 4-way input/output GPIO

BIOS

128Mb Flash ROM

Watchdog

Support hardware reset function (256 levels, 0~255 seconds)

Operating System

Windows 8/Windows 10/Windows 11/Linux

Power Supply Type

Adopt DC 12V power supply

Operating Temperature

60℃～-10℃

Storage Temperature

-20℃～70℃

Working Humidity

5%-95% relative humidity, non-condensing

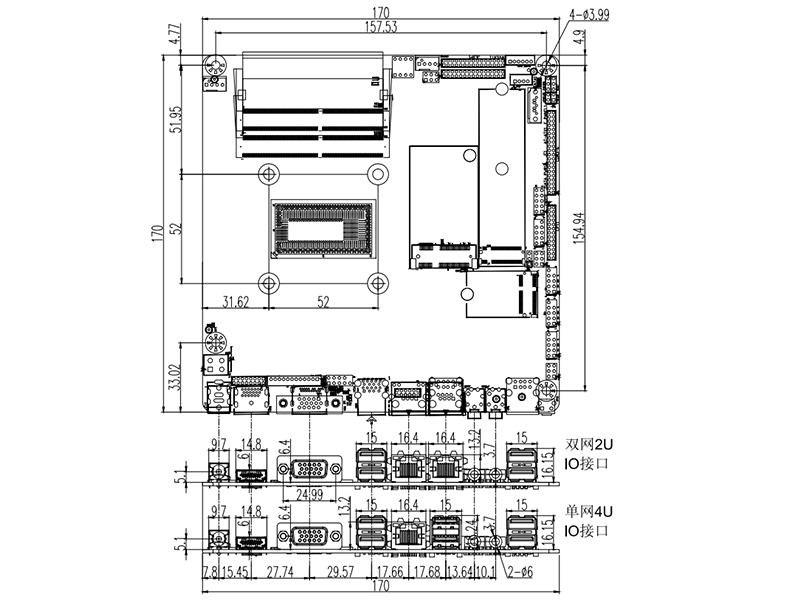

Dimension

170mm x 170mm

1

AOS-ITXTI11U

I5-1135G7

4

1.6G

2*DDR4

1

1

1

/

1

8

1

1

6 / 2

12V

2

I7-1165G7

4

1.6G

2*DDR4

1

1

1

/

2

8

1

1

6 / 2

12V
