Processor

Intel®Celeron 3965U

Intel®Core i5-6300U

Intel®Core i5-7267U

Intel®Core i7-6660U

Dual-core 2.2GHz

Dual-core 2.4GHz (Up to 3.0GHz)

Dual-core-core  3.1GHz (Up to 3.5GHz)

Dual-core-core 2.4GHz (Up to 3.4GHz)

Compatible with Intel® Skylake-U or Kaby lake-U Pentium/Celeron/I3/I5/I7 series low-power processors.

Memory

2* SO-DIMM memory slots, supports dual-channel 2133MHz DDR4 memory up to 16GB.

Display

Integrated Intel® HD Graphics 540/610/620/650, etc. (depending on the specific CPU model support)

1* VGA or DP connector (supports 4K 60Hz), 1* HDMI connector, 1* LVDS or eDP connector (default is LVDS)

Support VGA or DP, HDMI, LVDS or eDP synchronous/asynchronous triple display

Network

1* Realtek RTL8111H Gigabit LAN card (2 networks optional), support Wake-on-LAN/PXE

Storage

2* SATA3.0 interface

1* M.2 Key-M 2280/2242 slot

Audio

Onboard ALC662 6-channel hi-fi audio controller, support MIC/Line-out, amplifier (support 2-ohm 5W dual-channel)

Expansion Slots

1* Mini-PCIe slot (half card and long card support), support WIFI/4G module (this Mini-PCIEe can be used as MSATA option)

1* M.2 Key-E connector, support WIFI modules

Backplane I/O Ports

1* HDMI display interface

1* VGA display interface (and 4K 60Hz DP interface, the default is VGA interface)

2* USB 2.0 interface (USB2.0 and RJ45 is one of the two options)

2* USB3.0 interface

1* RJ-45 Gigabit network interface (LAN2 and USB2.0 interface is optional)

1* Line out connector (green), 1* MIC connector (red)

1* 12V DC power input connector

Built-in I/O Ports

1* JHDMI connector 2*8Pin (optional)

1* JVGA connector 1*12Pin (same signal as DB15)

1* LVDS connector 2*15pin, support dual-channel 24bit (and eDP one or the other, default)

1* Screen backlight power supply connector 1*6pin

1* eDP connector 2*15pin (either one of LVDS or LVDS, optional)

4* USB 2.0 interface 2*5pin (supports 6 USB2.0 when dual network is supported)

1* Front Audio Interface 2*5pin

1* Amplifier connector 1*4pin

6* COM interface (of which COM2/COM3 support RS485, COM1/2 9th P with power, optional to do 2 serial ports)

1* LPT interface

1* PS2 interface 1*6Pin

1* Hard disk power supply interface 1*4Pin

1* 4pin ATX power connector

1* Front Panel Switch Button and Indicator Light Interface 2*5Pin

Fan Interface

1*4pin CPU smart fan interface, 1*4pin system smart fan interface

GPIO

Support 4-way input/output GPIO

BIOS

64Mb Flash ROM

Watchdog

Support hardware reset function (256 levels, 0~255 seconds)

Operating System

Windows 7/Windows 10/Linux

Power Supply Type

Adopt DC 12V power supply

Operating Temperature

-10℃～60℃

Storage Temperature

-20℃～70℃

Working Humidity

5%-95% relative humidity, non-condensing

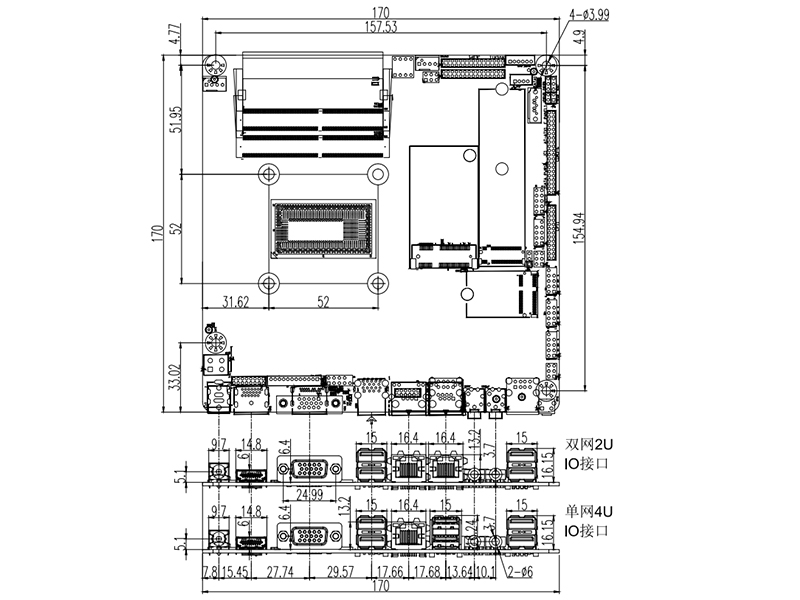

Dimension

170mm x 170mm

1

AOS-ITXS67U -3865U

3865U

2

1.8G

2*DDR4

1

1

1

/

2

8

1

1

6 / 2

12V

2

AOS-ITXS67U -6300U

I5-6300U

2

2.4G

2*DDR4

1

1

1

/

1

8

1

1

2

12V

3

selectable

I5-7267U

2

3.1G

2*DDR4

1

1

1

/

2

8

1

1

6 / 2

12V

4

selectable

I7-6660U

2

2.4G

2*DDR4

1

1

1

/

2

8

1

1

6 / 2

12V
