Processor

Support Intel® PGA 988 Sandy Bridge/Ivy Bridge 2nd/3rd Celeron/Pentium/Corei3/i5/i7 series processors

Chipset

Adopts Intel® NM70/HM76 and other high-speed chipsets

Memory

1*SO-DIMM memory slot, supports single-channel 1600/1333MHz DDR3 memory up to 8GB.

Display

Integrated Intel Core Graphics 4000

1* VGA, 1* HDMI, 1* LVDS interface

Support VGA, HDMI, LVDS synchronous / asynchronous dual display

Network

1* Realtek RTL8111H Gigabit network card (2 optional networks), support for Wake-on-LAN/PXE

Storage

1* SATA2.0 interface

1* mSATA3.0 slot (long card)

Audio

Onboard ALC662 6-channel hi-fi audio controller, support MIC/Line-out, amplifier (support 2-ohm 5W dual-channel)

Expansion Slots

1* Mini-PCIe slot (both half card and long card support),support WIFI/4G module

1* PCI slot (optional)

Backplane I/O Ports

1* HDMI display interface

1* VGA display interface

4* USB2.0 ports (2 USB2.0 ports and RJ45 are optional)

1* RJ-45 Gigabit network interface (LAN2 and 2 USB2.0 ports are optional)

1* Line out connector (green), 1* MIC connector (red)

1* 12V DC power input connector

Built-in I/O Ports

1* JVGA connector 1*12Pin (same signal as DB15)

1* LVDS connector 2*15pin, support dual-channel 24 bit

1* Screen backlight power supply connector 1*6pin

4* USB2.0 interface 2*5Pin

1* Front Audio Interface 2*5pin

1* Amplifier connector 1*4pin

6* COM interface (COM2, COM3 support RS485 by default, COM2 optional support 422, COM1/2 9th P with power)

1* LPT interface

1* PS2 interface 1*6Pin

1* Hard disk power supply interface

1* 4pin ATX power connector

1* Front Panel Switch Button and Indicator Light Interface 2*5Pin

Fan Interface

1*4pin CPU fan connector, 1*4pin system fan connector

GPIO

Support 4 input/output GPIOs

BIOS

32Mb Flash ROM

Watchdog

Support hardware reset function (256 levels, 0~255 seconds)

Operating System

Windows XP/Windows 7/Windows 10/Linux

Power Supply Type

Adopt DC 12V power supply

Operating Temperature

60℃～-10℃

Storage Temperature

-20℃～70℃

Working Humidity

5%-95% relative humidity, non-condensing

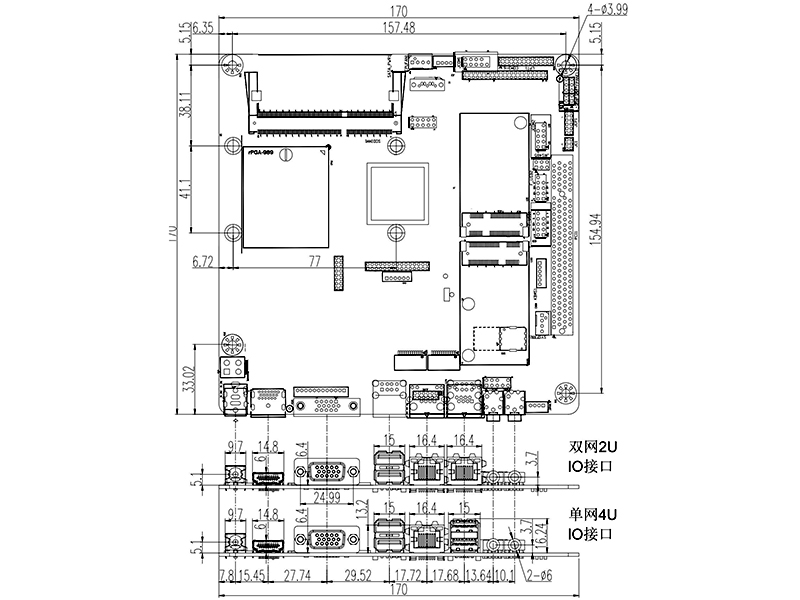

Dimension

170mm x 170mm

1

AOS-ITXNM70M

NM70

DDR3

NC

1

1

1

1

8

1

1

2/1

12V

2

optional

NM70

DDR3

NC

1

1

1

1

8

1

1

6/2

12V

3

optional

NM70

DDR3

NC

1

1

1

2

6

1

1

6/2

12V
