Processor

Intel®Core i3-4030U

Intel®Core i3-5005U

Intel®Core i5-4300U

Intel®Core i5-5300U

Dual-core 1.9GHz

Dual-core 2.0GHz

Dual-core 1.9GHz (Up to 2.9GHz)

Dual-core 2.3GHz (Up to 2.9GHz)

Compatible with Intel Celeoron,Pentium,Core®I3/I5/I7 Haswell/Broadwell-U Series Processors

Memory

2*SO-DIMM memory slots, support dual-channel 1600/1333MHz DDR3L/1.35V memory, support up to 16GB

Display

Integrated Intel® HD Graphics 4400 core graphics card

1* VGA, 1* HDMI interface, 1* LVDS or eDP interface (choose one, default is LVDS)

Support VGA, HDMI, LVDS or eDP synchronous / asynchronous display

Network

2* realtek RTL8111H Gigabit LAN card (1 network optional), support Wake-on-LAN/PXE

Storage

1* 2.5-inch SATA3.0 hard disk interface

1* SATA3.0 interface

1* mSATA3.0 slot (long card)

Audio

Onboard ALC897 7.1-channel hi-fi audio controller, support MIC/Line-out, amplifier (2-ohm 5W dual-channel)

Expansion Slots

1* Mini-PCIe slot (both half card and long card support), support WIFI/4G module

1* Mini-PCIe slot (half card, optional), support WIFI module

Backplane I/O Ports

1* HDMI display interface

1* VGA display interface (and COM1 one or the other)

2* USB3.0 interface

2* RJ-45 Gigabit network interface (of which LAN2 and USB2.0 interface is one of the two)

1* Line out connector (green), 1* MIC connector (red)

1* 12V DC power input connector

Built-in I/O Ports

1* JHDMI interface 2*8Pin (optional, with HDMI standard interface with the same signal)

1* JVGA connector 1*12Pin (same signal as DB15)

1* LVDS connector 2*15pin, support dual-channel 24bit (and eDP, default)

1* Screen backlight power supply connector 1*6pin

1* eDP connector 2*15pin (either one of LVDS or LVDS, optional)

4* USB 2.0 port 2*5pin (supports 6 USB2.0 ports when dual network is supported)

1* Front Audio Interface 2*5pin

1* Amplifier connector 1*4pin

6* COM interface (of which COM1/COM2 can support RS485, COM3-4 can optionally support RS485, COM3 can optionally support RS422, COM1/2 9th P with power)

1* LPT interface

1* PS2 interface 1*6Pin

1* Hard disk power supply interface

1* 4pin ATX power connector

1* Front Panel Switch Button and Indicator Light Interface 2*5Pin

Fan Interface

1*4pin CPU fan connector, 1*4pin system fan connector

GPIO

Support 4 input/output GPIOs

BIOS

64Mb Flash ROM

Watchdog

Support hardware reset function (256 levels, 0~255 seconds)

Operating System

Windows 7/Windows 10/Linux

Power Supply Type

Adopt DC 12V power supply

Operating Temperature

-20℃～60℃

Storage Temperature

-20℃～70℃

Working Humidity

5%-95% relative humidity, non-condensing

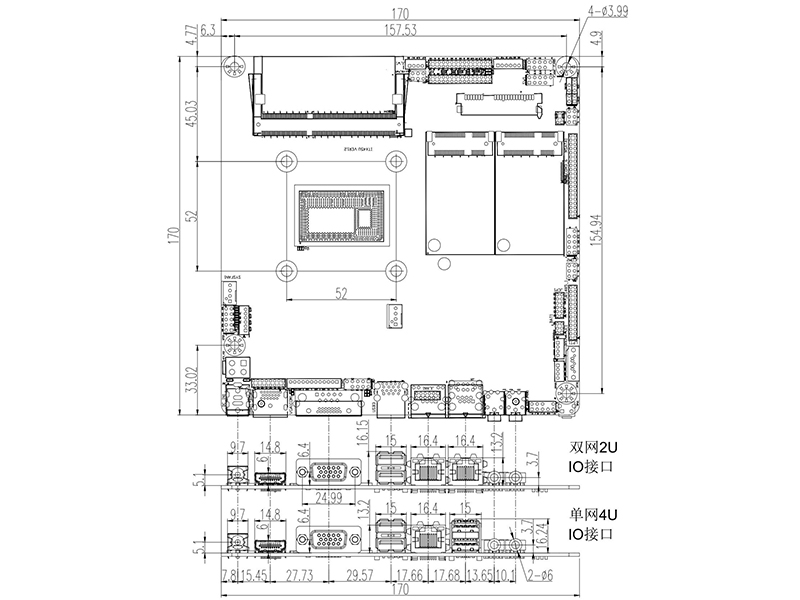

Dimension

170mm x 170mm

1

AOS-ITX54U -4030U VER1.1

I3-4030U

2

1.9G

DDR3L

1

1

1

/

1

8

1

1

2 / 1

12V

2

AOS-ITX54U -4300U VER1.1

I5-4300U

2

1.9G

DDR3L

1

1

1

/

1

8

1

1

2 / 1

12V

3

AOS-ITX54U -4300U VER1.1

I5-4300U

2

1.9G

DDR3L

1

1

1

/

2

8

1

1

6 / 2

12V

4

AOS-ITX54U -5300U VER1.1

I5-5300U

2

2.3G

DDR3L

1

1

1

/

2

8

1

1

6 / 2

12V
