Processor

Integrated Intel® Celeron J1900/2.0GHz quad-core processor

Compatible with Intel® Baytrail-I/M/D series CPUs

Memory

1*SO-DIMM memory slot, supports single-channel 1600/1333MHz DDR3L/1.35V memory, maximum support 8GB

Display

Integrated Intel® HD Graphics core graphics card

1* VGA connector, 1* HDMI connector or eDP connector (default is HDMI), 1* LVDS or eDP connector (default is LVDS)

Support VGA, HDMI, LVDS or eDP synchronous/asynchronous display, optional support for dual eDP display, or LVDS plus eDP display

Network

1* Realtek RTL8111H Gigabit LAN card (2 networks optional), support Wake-on-LAN/PXE

Storage

1* 2.5-inch SATA2.0 hard disk interface (and SATA2.0 interface two optional)

2* SATA2.0 ports (1 and 2.5-inch SATA2.0 hard disk interface two options, 1 and mSATA two options, default 1 SATA2.0 interface)

1* mSATA slot (long card)

Audio

Onboard ALC662 6-channel hi-fi audio controller, support MIC/Line-out, amplifier (support 2 ohm 5W dual-channel)

Expansion Slots

1* Mini-PCIe slot (both half card and long card supported), support WIFI/4G module

1* Mini-PCIe slot (half card, optional), support WIFI module

Backplane I/O Ports

1* HDMI display interface

1* VGA display interface (either one with COM1)

3* USB 2.0 interface (including 2 USB2.0 and LAN2 two optional)

1* USB3.0 interface

1* RJ-45 Gigabit network interface (of which LAN2 and USB2.0 is one or the other)

1* Line out connector (green), 1* MIC connector (red)

1* 12V DC power input connector

Built-in I/O Ports

1* JHDMI connector 2*8Pin (optional)

1* JVGA connector 1*12Pin (same signal as DB15)

1* LVDS connector 2*15pin, support dual-channel 24bit (and eDP one or the other, default)

1* Screen backlight power supply connector 1*6pin

1* eDP connector 2*15pin (either one of LVDS or LVDS, optional)

4* USB 2.0 interface 2*5pin (supports 6 USB2.0 when dual network is supported)

1* Front Audio Interface 2*5pin

1* Amplifier connector 1*4pin

2* COM interface (optional to do 6 serial ports, of which COM2~COM5 can support 4 RS485, COM1/2 9th P with power)

1* LPT interface

1* PS2 interface 1*6Pin

1* 4pin ATX power supply interface

1* Hard disk power supply interface

1* Front Panel Switch Button and Indicator Lamp Interface 2*5Pin

Fan Interface

Fanless cooling design, reserved 1*4pin CPU fan interface, reserved 1*4pin system fan interface

GPIO

Supports 4 input/output GPIOs

BIOS

64Mb Flash ROM

Watchdog

Support hardware reset function (256 levels, 0~255 seconds)

Operating System

Windows 7/Windows 10/Linux

Power Supply Type

DC 12V power supply

Operating Temperature

-20℃～60℃

Storage Temperature

-20℃～70℃

Working Humidity

5%-95% relative humidity, non-condensing

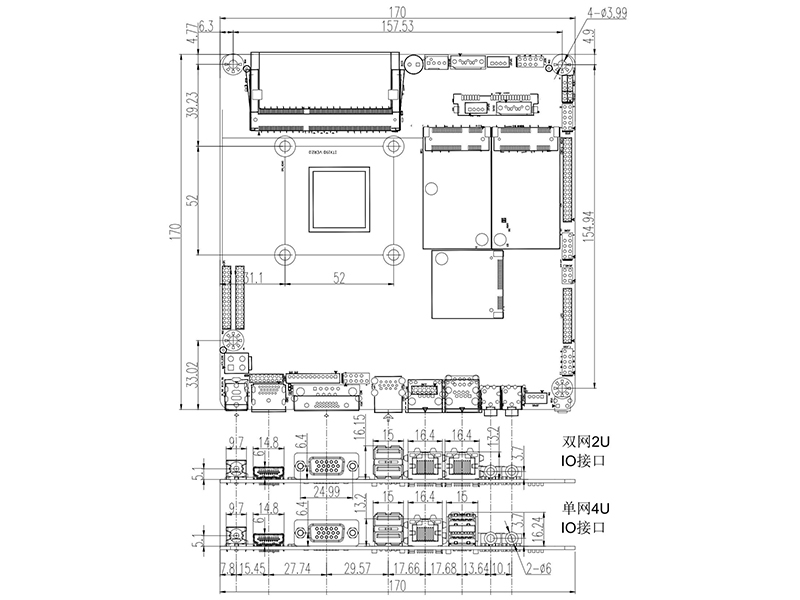

Dimension

170mm x 170mm

1

AOS-ITX19D VER2.0

J1900

4

2.0G

DDR3L

1

1

1

/

1

8

1

1

2 / 1

12V
