AOS-MMZX700D
Product introduction：
Product introduction
Based on Zhaoxin KaiXian KX-7000 series CPU
2*DDR4/2666 SO-DIMM, maximum memory capacity 64GB
Supports SATA/PCIe M.2 SSDs
Supports HDMI+VGA+LVDS triple display output
Supports Windows 10/11 and UOS/Kylin OS operating systems
NTX form factor, supports 12/19V power input
Specifictaion
Processor | CPU | Support ZhaoXin KX-7000 8 Core 8 thread 3.6GHz CPU Support ZhaoXin KX-7000 6 Core 6 thread 3.2GHz CPU |
Chipset | SOC | |
BIOS | AMI 32Mbit，Supports disk-free startup, network wake up, power-on, and watchdog functions | |
Memory | Capacity | 4GB 2×DDR4 3200MHz memory , Max.64GB |
Storage | M.2 SATA | 1x SATA/PCle 4X Signal M2280 M.2 SSD(Chip Automatic recognition) 2x SATA3.0 7Pin standard prot |
Display | Display Core Output
| CPU Integrated-C1190 HDMI2.0 (Max: 3840x2160@30Hz) VGA(Max.1920 x1080@60Hz) LVDS(Max. Max: 1920 x1080@60Hz) |
Internet | lan | 1x RTL8111H(Can optional double lan port)，Support Network wake-up and PXE Boot |
I/O | USB 3.0 RJ45 HDMI Chip/Audio DC | 2x USB 3.2 Gen1+2xUSB3.2 Gen1(Layout Ethernet Card) 1× RJ45 port（Can optional double lan port） 2×HDMI Realtek ALC897/Audio out+ Mic in+Line in 1×DC |
Onboard Function | USB3.0 USB2.0 COM LPT Expansion Interfaces | 2×USB 3.0 4×USB 2.0 2xRS232/RS485(jumper optional) 1x LPT 1x M.2 2230，SupportWIFI/BT 1x M.2 3042/3050 Support 4G/5G，Can through to BIOS Updata Spport M.2 SATA SSD |
Power source | Input Rated Power Consumption | DC 12~19V 90W |
Watchdog | Output intervals | The system restarts. Procedure 255 level timing interval |
Physical parameter | Size | 170mm (L) x 170mm (W)) |
environment | Temperature Humidity | Operating temperature: 0°C ~50°C Storage temperature: -20 °C ~70°C 5% to 90% no condensation |
Operating system | Versions | Win 10/11; Linux(Centos、Ubuntu、Fedora、NeoKylin、UOS) |
Cooling | Method | Heat sink&Fan |
Ordering Information
Sale | illustrate |
AOS-MMZX700D | KX-7000 8 Core 8 thread 3.6GHz CPU，KX-7000 6 Core 6 thread 3.2GHz CPU（ Optional） |

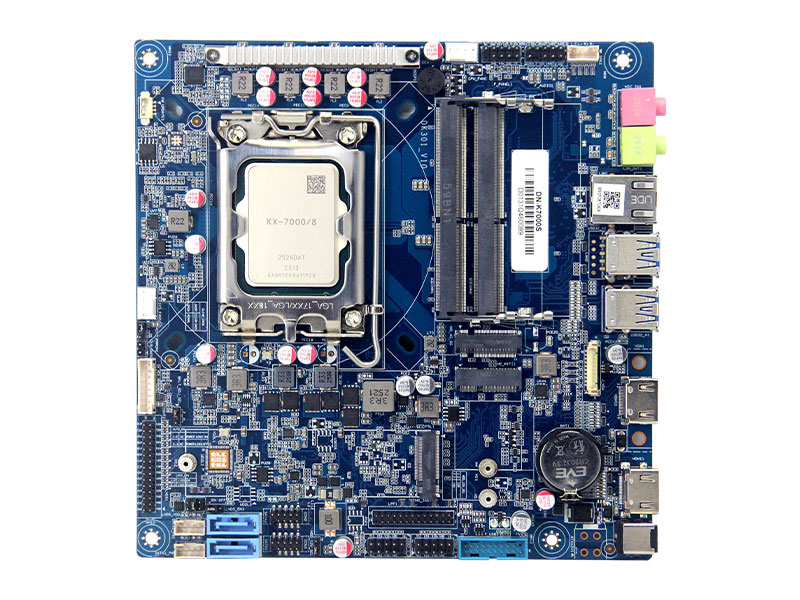

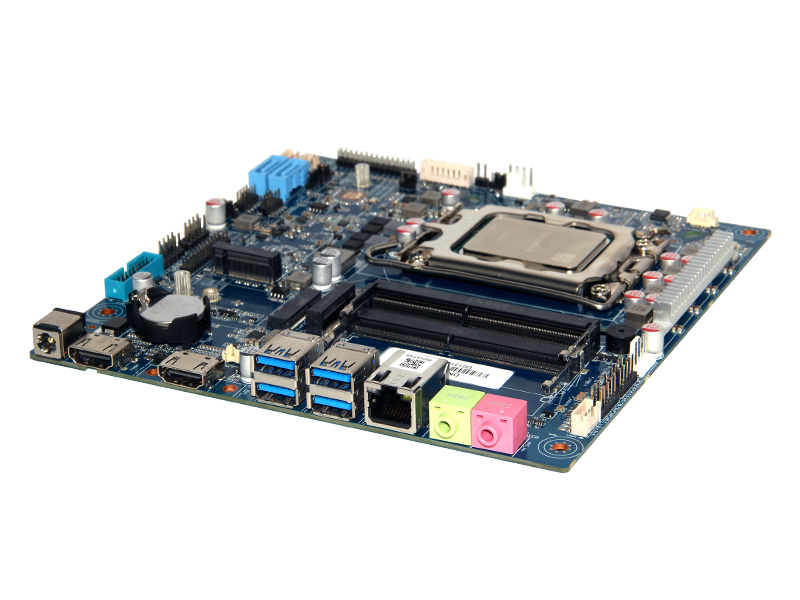

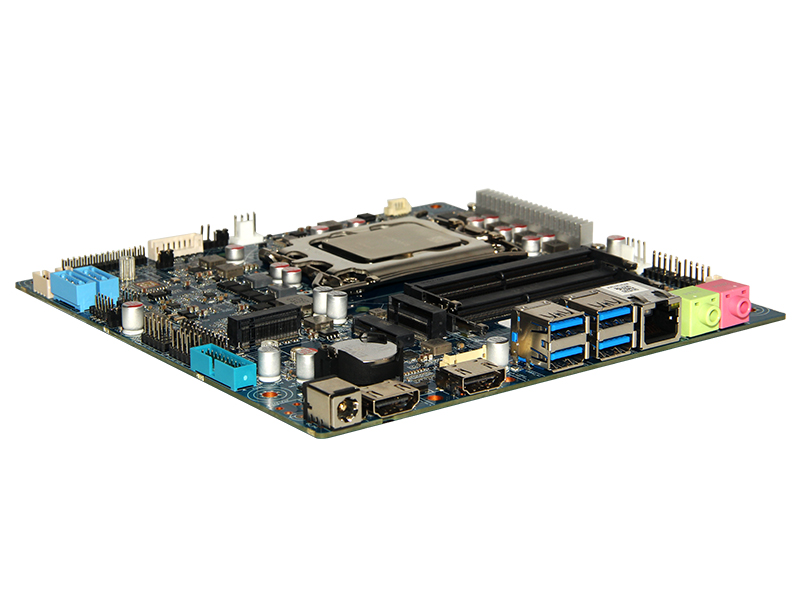

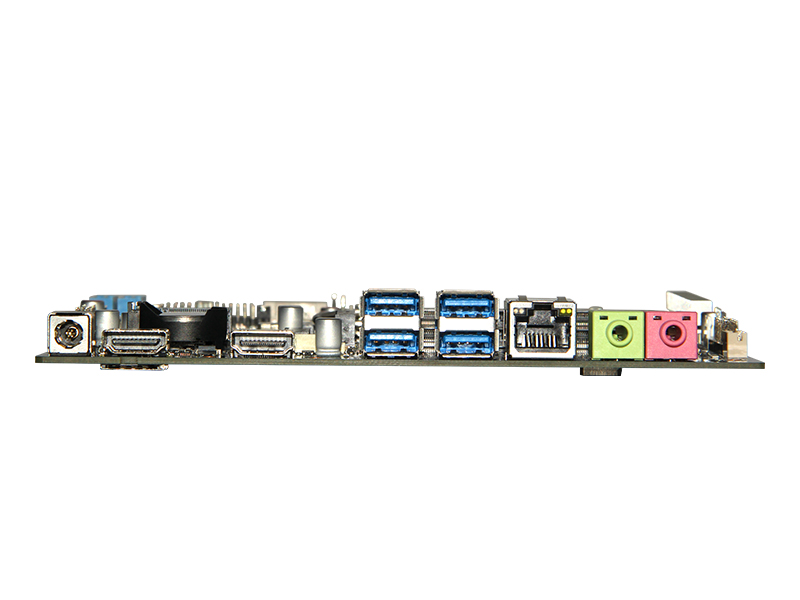

Image Chart
Application area
Application to Industrial automation, machine vision, Intellgent transportation, and commercial displays(education, retail, goverment, conferencing)
