AOS-N12N1012UH
Product introduction：
Product introduction

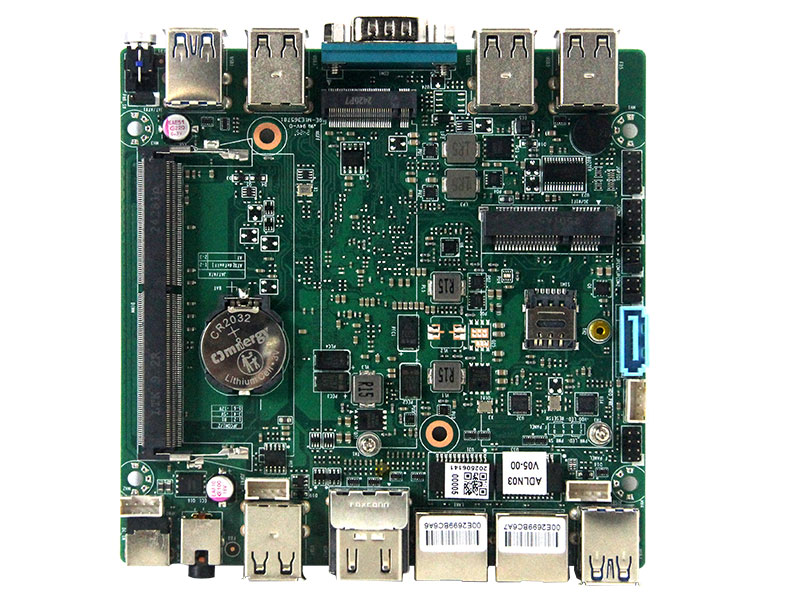

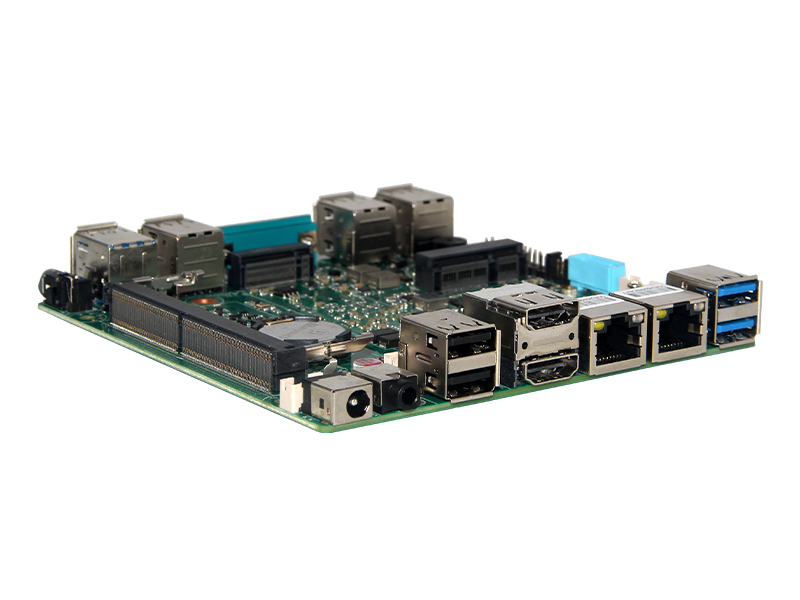

NANO-ITX Industrial Motherboard
Supports AlderLake-N platform, N95/N97/N100/N150/N250/i3-N305 series CPUs
Supports two RJ45 Gigabit Ethernet ports
Supports four USB 3.0 ports and eight USB 2.0 ports
Two HDMI ports with a maximum resolution of 3840x2160 (synchronous/asynchronous display)
Optional expansion of two to six COM ports
Compliant with CE, FCC, and ROHS regulations
Dimensions: 120mm*120mm
Specifications
CPU | CPU | Intel Alder lake-N/Twin Lake Plat Series N95/N97/N100/N150/N250/i3-N305 Series CPU |
Chipset | Intel® SOC | |
BIOS | AMI 32Mbit, Diskless boot, WOL, Power-on boot, watchdog, e | |
Memory | Capacity | 1× DDR4 SODIMM Memory Slot，Max 16GB |
Storage | SATAPort M.SATA | 1×SATA3.0, 1×M.2 Key-M 2280 Seif-adaptive PCIE/SATA SSD slot |
Disply | Chipset output | Intel CPU HD Disply Controller 2×HDMI Port 4K@ 60Hz （Max：4096x2304） Supports HDMI+HDMI Synchronous/Asynchronous Dual Disply |
Internet | Lan WIFI | 2×RJ45 1000m Network RTL8111H 1×WIFI Module support 802.11b/g/n （M.2 half card） |
I/O | USB 3.0 USB 2.0 COM HDMI Network LED Light DC JACK Audio | 4×USB3.0 8×USB2.0 2~6×COM（Choce） 2×HDMI 2×RJ45 1 x Power Light & 1xHDD Light 1× DC JACK OnBoard AL897 7.1 High fidelity audio controller， Mic-in/Line-out dual Audio interface |
Power | Input Rated Power | DC 12~19V 45W |
Watchdog | Input Interval | Interrupt, system restart 255 time interval |
Physical Parameters | Dimension | 120mm (L) x 120mm (W) |
Environment | Temperature Humidity | Working Temp.: 0°C ~50°C, Storage Temp.: -20~70°C 5%~90% No Condensation |
Operating System | Version | Windows 10/Linux |
Ordering Informations
Sales Model | Sperification |
AOS-N12N9512UH | CPU：N95 3.40 GHz |
AOS-N12N9712UH | CPU：N97 3.60 GHz |
AOS-N12N1012UH | CPU：N100 3.40 GHz |
AOS-N12N10512UH | CPU：N105 3.80 GHz |
AOS-N12N15012UH | CPU：N150 3.80 GHz |
AOS-N12N20012UH | CPU：N200 3.70 GHz |
AOS-N12N30012UH | CPU：N300 3.80 GHz |
AOS-N12N30512UH | CPU：N305 3.80 GHz |
Areas of Application
Application to robotice、visual inspection、Industrial automation、industrial manufacturing、intelligent transportion、renewable energy、eletricity、militady Industry、medical care、commercial disply、communication control、medical instruments、Industrial control、financial equipment、cloud terminals。
