AOS-N12U11M6
Product introduction：
Specification
CPU/GPU RAM Storage Sound card Network

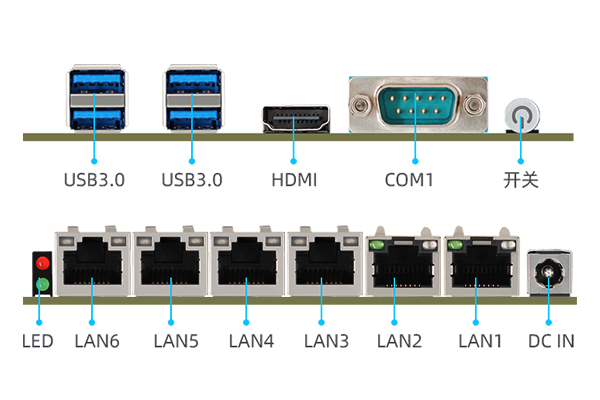

LVDS display COM USB BackplaneI/O
Onboard I/O Special function Power Heat dissipation Dimension Operating Temperature Storage Temperature Ambient Humidity | Onboard Intel® Tigerlake-u (I3 1115U/I5 1135G7U /I7 1165G7) 2×SODIMM memory slots, support DDR4 2133MHZ memory up to 32GB 1×SATA ,1×MSATA，1× M.2 NVME SSD interface Realtek ALC269, support for 5.1 channel sound 6×INTEL I226 2.5GRJ45 NIC chip 1×M.2(Key-M 2280,PCIE NVME SSD) NO HDMI Display 2×COM RS-232 4*USB3.0+2× USB2.0 (onboard pins) LED,6*LAN,DC, USB2.0,USB3.0,HDMI, COM, POWER 1*SATA3.0，1*MSATA 2*USB2.0（pin header） 1*FP，1*CPUFAN，1*GPIO Supports Watchdog, Diskless Boot, Wake-on-LAN, Power-On, Timed Power-On DC 9-36V Fanless 120mm(L)×120mm(W) -25~75℃ -40~80℃ 0~90% air humidity, non-condensing |
Ordering Info
Sales model | Description |
AOS-N12U11M6 | INTEL I3 11315G4 3.0GHz INTEL I5 1135G7 2.4GHz INTEL I7 1165G7 2.8GHz |
Area of Application
Industrial Controls, Industrial Tablet PCs, Self-service Terminals, All-in-Ones, Medical,Digital Signage, POS Cash Registers, etc.
