AOS-N12N10D
Product introduction：
Detailed specifications of motherboard
Project | description |
Processor | Integrated Intel® Celeron N100 0.8GHz quad-core processor, TDP 6W Compatible with the full range of Intel® Alder Lake CPUs |
Memory | 1* SODIMM slot, single-channel 3200MHz DDR4 memory, support up to 32GB |
Display
| Integrated Intel® UHD Graphics ultra-core graphics card |
1* HDMI1 interface (4K 60Hz), 1* VGA interface Support HDMI1, VGA synchronous / asynchronous display (optional dual-layer HDMI1/HDMI2, DP and VGA can be two options) | |
Network | 2* Realtek Gigabit LAN card, support Wake-on-LAN/PXE |
Storage
| 1* 7pin SATA3.0 hard disk interface, transfer rate up to 6Gbps |
1* M.2 Key-M 2280/2242 Adaptive PCIE/SATA SSD Slot | |
Audio | Onboard AL897 7.1-channel hi-fi audio controller with MIC/Line-out support |
Expansion Slot | 1* Mini-PCIe slot, support 4G module and WIFI |

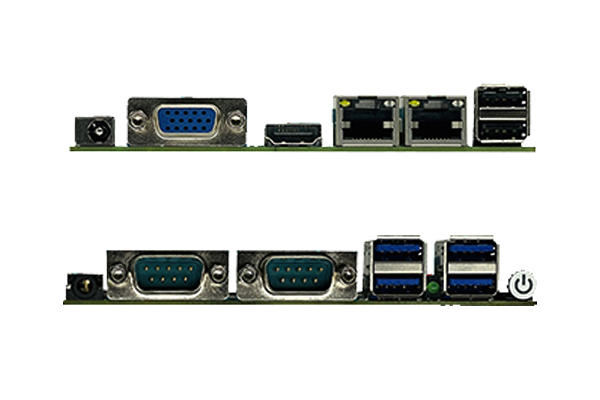

Rear I/O Ports
| 2* Realtek RJ45 network interface |
2* USB2.0 interface | |
1* Typec USB2.0 interface (USB function only, and USB2.0 connector either one) | |
1* HDMI display interface | |
1* VGA display interface | |
1* 12V DC power input connector | |
Front I/O Ports
| 4* USB 3.1 interface |
1* 3.5 standard audio interface, support Line out MIC | |
2* DB9 RS232 serial port (default two RS232, COM1/2 through the jumper can support RS485) | |
1* Hard disk indicator | |
1* Clear COMS key switch | |
1* Switch button with power light | |
Built-in I/O Ports
| 1* USB 2.0 1*4pin interface |
1* TPM2.0 interface 2*6Pin | |
1* 1*4Pin amplifier connector (default not on, support 2W5Ohm) | |
1* Hard disk power supply interface | |
1* 4pin small white power supply interface | |
1* 2*5Pin GPIO pins | |
1* Front panel switch button and indicator interface 2*5Pin | |
Fan Interface | Backside CPU fanless cooling design, reserved 1*4pin CPU fan interface |
GPIO | Supports 4 input/output GPIOs |
BIOS | 128Mb Flash ROM |
Watchdog | Support hardware reset function (256 levels, 0~255 seconds) |
Operating System | Windows 10/Windows 11/Linux |
Power Supply Type | Adopt DC 12V power supply |
Operating Temperature | -10℃～60℃ |
Storage Temperature | -20℃～70℃ |
Working Humidity | 5%-95% relative humidity, non-condensing |
Dimension | 120mm x 120mm |
Order information：
No. | Model | CPU | Core number | frequency | TDP | RAM | HDMI | VGA | LAN | USB | PS2 | LPT | COM/485 | POWER |
1 | AOS-N12N10D VER1.0 | N95 | 4 | Up to3.4G | 15W | DDR4 | 1 | 1 | 2 | 7 | / | / | 2 / 2 | 12V |
2 | AOS-N12N10D VER1.0 | N100 | 4 | Up to3.4G | 6W | DDR4 | 1 | 1 | 2 | 7 | / | / | 2 / 2 | 12V |
3 | AOS-N12N10D VER1.0 | N200 | 4 | Up to3.7G | 6W | DDR4 | 1 | 1 | 2 | 7 | / | / | 2 / 2 | 12V |
4 | AOS-N12N10D VER1.0 | I3-N305 | 8 | Up to3.8G | 15W | DDR4 | 1 | 1 | 2 | 7 | / | / | 2 / 2 | 12V |

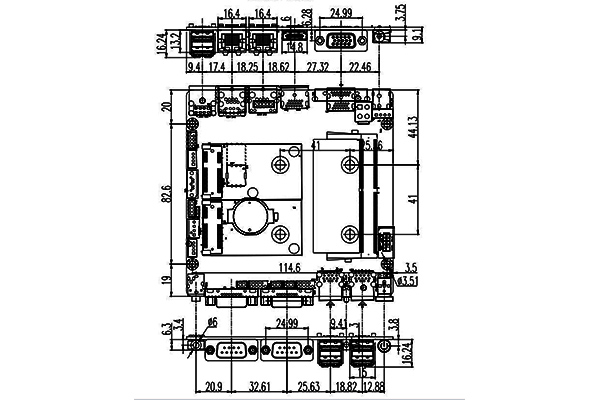

Dimension drawing
